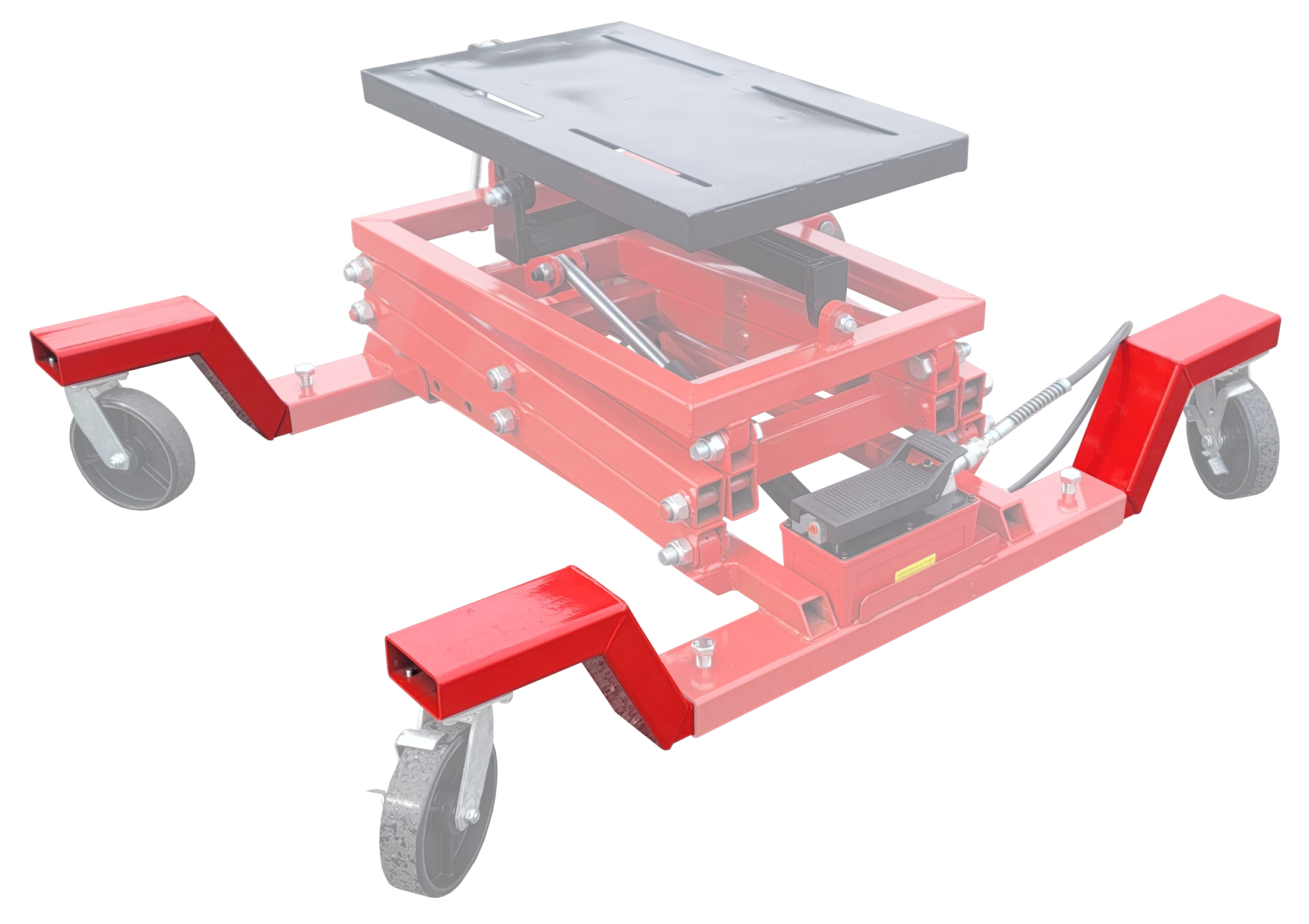

Redline PT1650 Powertrain Engine Cradle Jack

Model: PT1650

Starting at: $1,799.50


If bigger is better, Redline's new PT1650 is the best.  This behemoth jack is heavy duty enough for dropping entire engines, transmissions, and cradles out from underneath a vehicle all at once.  With 1650 lbs of capacity this air over hydraulic power train lift can handle your biggest of jobs.  Just slide the wooden blocks into place, ratchet strap the engine/cradle assembly to the jack-head, and safely lower it down.  Order yours today!

• 1650 lbs capacity
• Unit has a double tilt feature
• 2 of 4 casters feature wheel locks


• 2.5" diameter rollers
• 9.5" ground clearance
• 5' long hydraulic hose
• 8" resin wrapped casters
• Bottom base is 33" x 48"
• Overall dims 51" x 36" x 38"
• Top lifting plate is 20.5" x 32.5"
• Max height 80.5" to top of wood blocks
• 32.75" lowered height to top steel plate
• Lifting arms made from 2" x 2.75" tubing
• Frame constructed from 1/8" to 3/4" steel
• 26 sec rise time / 42 sec lowering unloaded


• Local dock pickup easiest option
• Residential deliveries cost extra
• Ships 584 lbs. at 36" W x 51" L x 30" H
• Free shipping to commercial location w/ forklift
• Units available in Como, MS with $150.00 discount
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed
