Model: MTP-9F

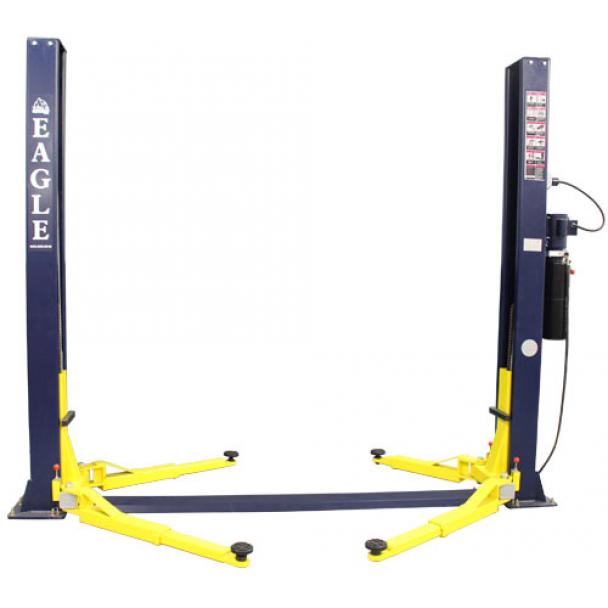

The Eagle Equipment 9K Symmetric Mechanix 2 Post Lift is now for sale! We kept the the steel pulleys, the high-strength cable equalization system, the heavy-duty leaf chain, and all the quality you'd expect from an Eagle lift. Also includes free mounting hardware and a 1 year warranty. Order yours today!
KEY BENEFITS • 1 year limited warranty • Free mounting hardware • Includes Height Adapters • Durable powder coated paint finish • Low profile automatic arm restraints • Dual cylinders with low friction chain rollers
Show more
• Rise: 69 1/8" • Style: Symmetric • Motor: 2HP 220VAC • Min pad height: 4" • Cover height: 1 3/4" • Rear arm min reach: 32" • Rear arm max reach: 46" • Inside columns: 110 5/8" • Front arm min reach: 32" • Front arm max reach: 46" • Overall height: 111 1/4" • Max load per arm: 2,250 lbs. • Lifting capacity: 9,000 lbs. • Drive-thru clearance: 101 7/8" • Lift height max (pad only): 71 1/2" • Width (outside of columns): 125 3/8" • Lift height max (with adapters): 77 7/8" • Overall width (outside of base plate): 134 5/8" • Time to full rise (NO LOAD): 45 seconds (220 PU)
• Download the manual pdf HERE
• Shipping Weight: 1,500 lbs. • Can be picked up at local terminal • Residential deliveries not possible • Must ship to a business with forklift • Local pick up in Greensboro, NC 27405 • Shipping Dimensions: L 116" x W 21" H 42" • Free shipping applies to $400 maximum. If shipping exceeds this amount a surcharge may be needed
