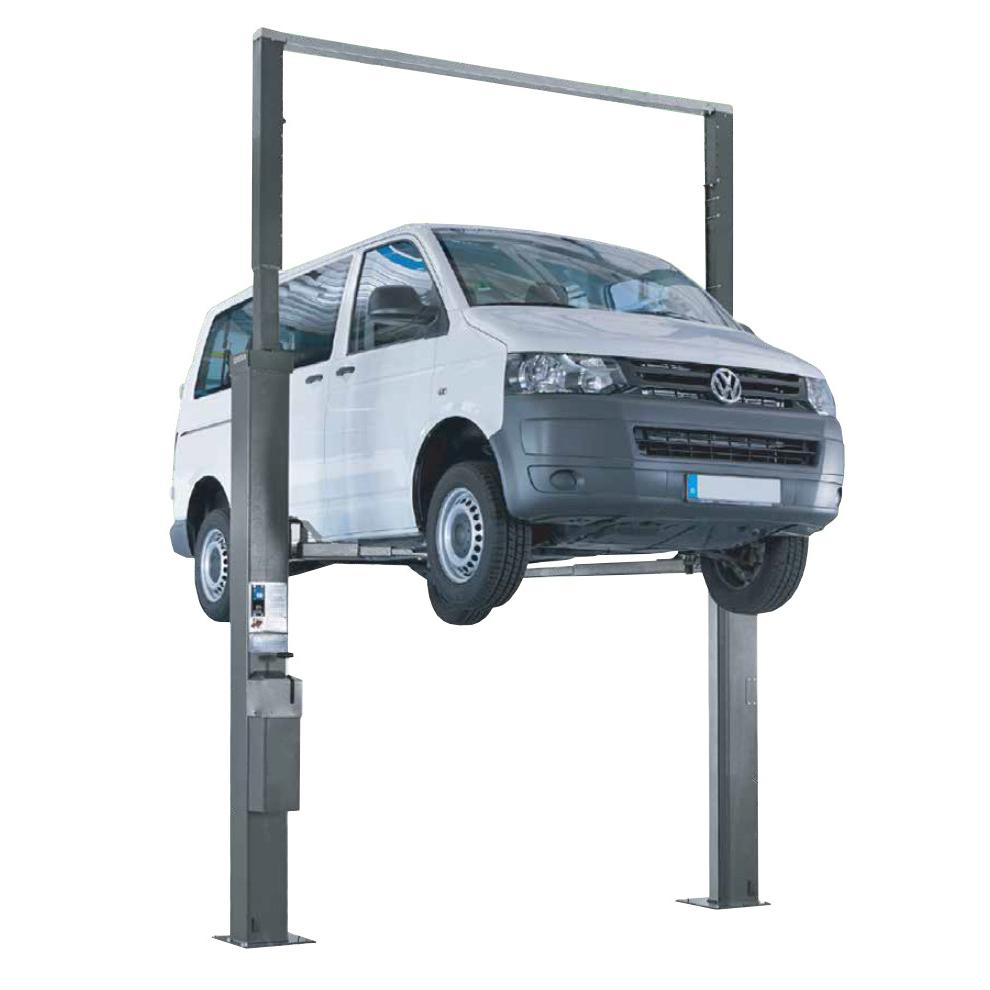

[DISCONTINUED] Nussbaum 8K/11K Automotive 2 Post Lift

Model: HF8000/HF11000NT


Shipping upgrades offered in cart page

Description

Easily service your vehicles with the Nussbaum 8K/11K Automotive 2 Post Lift! By utilizing a low noise oil-submerged motor and nearly wear-free hydraulic cylinders this lift requires barely any maintenance. Its hyperflow technology ensures synchronization without cables or pulleys, and its fast lifting and lowering times garantee high cost effectiveness. Its slim design along with protected cylinders ensures you save space with this nifty lift. The 8K model utilizes asymmetric arms while the 11K model uses unique double-jointed arms. Order yours today!

KEY BENEFITS
• Extremely low maintenance lift
• Low noise oil-submerged motor
• Nearly wear-free hydraulic cylinders
• Powerful and uniform lifting with control lever
• Self-equalization system for the hydraulic system
• Slim design - cylinders are protected behind covers
• Fast lifting/lowering times garantee high cost effectiveness
• Far reach arms to pick up long vans with lowest lifting point
• NT system - double hydraulic system replaces mechanical locks
• Hyperflow technology ensures synchronization without cables or pulleys
• No floor connection and no top static connection of the columns is necessary
• 8K model utilizes asymmetric arms while the 11K model utilizes unique double-jointed arms

Show more

Specs

HF8000
• Lifting height: 80.75"
• Drive-thru width: 99.25"
• Total height column: 158.5"
• Lifting capacity: 8,000 lbs.
• Power supply: 208V, 230Hz, 1ph, 20 AMP
• Lifting time (up/down): 26 / 15 seconds
• Lowest lifting point (min/max): 4.5" / 7.5"
• Long arms extraction (min/max): 44.5" / 72.5"
• Short arms extraction (min/max): 22.5" / 45.75"
• Total height w/ riser pipe (min/max): 161.8" / 193.25"
HF11000
• Motor: 3hp
• Total width: 147.5"
• Lifting height: 80.75"
• Total height column: 156"
• Drive-thru width: 109.75"
• Lifting capacity: 11,000 lbs.
• Power supply: 208V, 230Hz, 1ph, 20 AMP
• Lifting time (up/down): 31 / 15 seconds
• Long arms extraction (min/max): 0" / 71.85"
• Lowest lifting point (min/max): 4.75" / 7.75"
• Total height w/ riser pipe (min/max): 161.8" / 191.5"



Downloads

• Download the spec pdf HERE

Shipping

• Residential deliveries not possible
• Local dock pickup saves residential fees
• Ships to commercial location w/ forklift
• Free shipping applies to $400 maximum.  If shipping exceeds this amount a surcharge may be needed
