Model: TP15KCX
Usually Ships Within

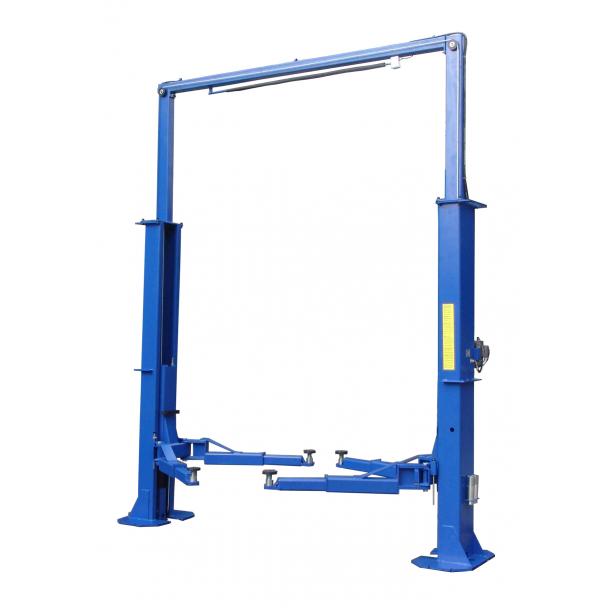

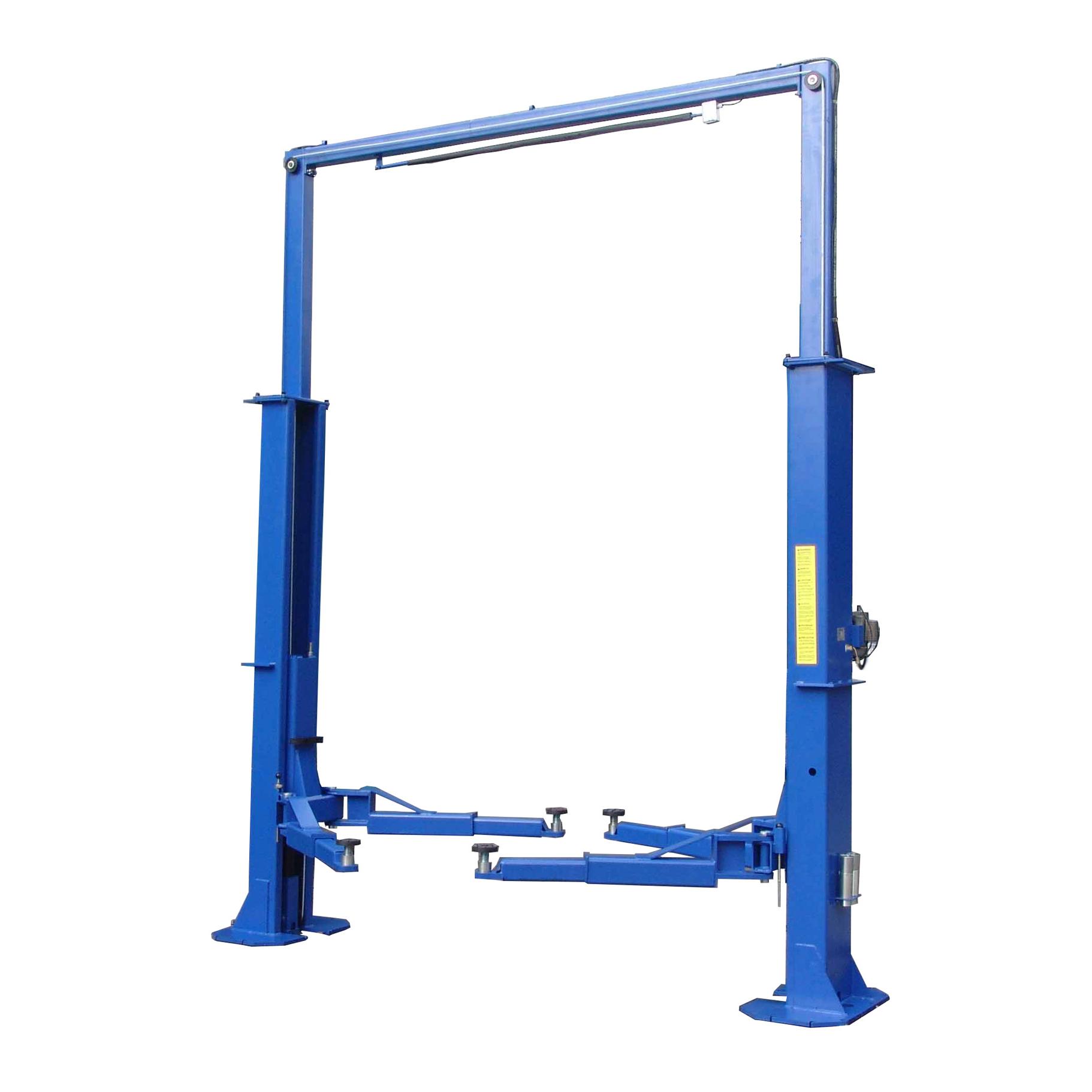

The Kernel 15,000 lb. Clearfloor 2 Post Lift is now for sale! It features a padded shut off bar with kill switch as well as reduced overall width with the power unit mounted on the front side. It includes low prifle drop in swivel pads as well as 4x stackable drop in height adapters. Order yours today!
KEY BENEFITS• Chain drive• Powder coat finish• Rubber door guards• Dual point lock release• Symmetric clear floor style lift• Ideal auto light & heavy duty trucks• Padded 'shut off' bar with kill switch• 4x stackable 3" & 5" 'drop-in' height adapters• Internal hose routing with integrated hose guards• Reduced overall width with front-side mounted power unit• Low profile 'drop-in' swivel pads with 2" adjustable height
RETURNS• Our supplier does not accept returns on this item• In event of warranty claim, replacement part(s) will be sent
Show more
• Min pad height: 5"• Cable diameter: 3/8"• Overall height: 179.4"• Max lifting height: 76.5"• Lifting speed: 50 seconds• Power: 220V, 20 AMP, 1 PH• Drive thru clearance: 109"• Column size: 7.75" x 14.5"• Max load per arm: 3,750 lbs.• Lifting capacity: 15,000 lbs.• Width between columns: 120.8"• Rear arm reach (min/max): 37" / 52"• Front arm reach (min/max): 37" / 52"• Overall width (with power unit): 148.4"• Column/carriage/arm steel thickness: 8mm
• Browse the full manufacturer catalog HERE• View our install blog HERE• Download the pdf manual HERE• Download the pdf spec sheet HERE
• Download the How to Install a Two Post Auto Lift Manual HERE
• Ships 2,650 lbs. at 126" x 36" x 53"• Ships LTL truck freight to business w/ forklift• Can be picked up at local truck dock terminal• Residential deliveries not possible • Various locations across U.S. may have units in stock $50.00 pick up fee will apply• Free shipping applies to $800 maximum. If shipping exceeds this amount a surcharge may be needed• Call for availability at locations - pickup fees apply
