Model: MTP-9A

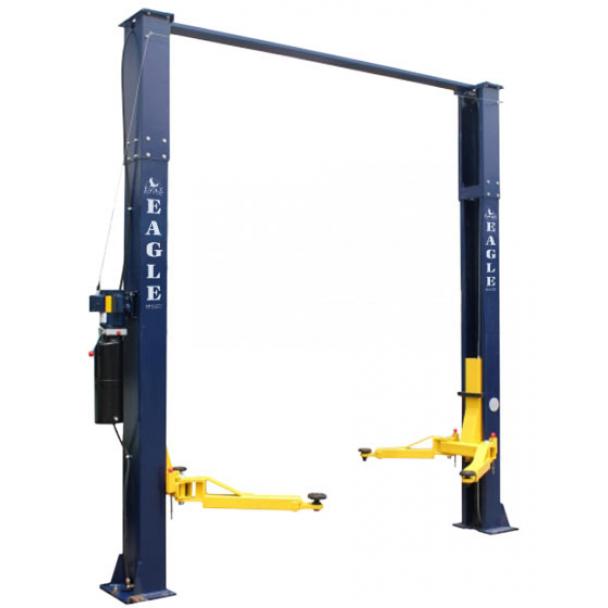

Now introducing the Eagle Equipment Asymmetric 2 Post Car Lift! We kept the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and all the quality you'd expect from an Eagle lift. Also includes height adapters and a 1 year warranty. Order yours today!
KEY BENEFITS • 1 Year WARRANTY • Free mounting hardware • Includes Height Adapters • Durable powder coated paint finish • Low profile automatic arm restraints • Electric override automatic safety shut-off • Dual cylinders with low friction chain rollers
Show more
• Rise: 69" • Motor: 2HP 220VAC • Style: Asymmetric • Min pad height: 4" • Overall height: 143" • Rear arm max reach: 58" • Inside columns: 110 3/4" • Rear arm min reach: 37 1/2" • Max load per arm: 2,250 lbs • Lifting capacity: 9,000 lbs • Front arm min reach: 28 1/2" • Front arm max reach: 40 1/2" • Drive-thru clearance: 93 5/8" • Lift height max (pad only): 71 1/2" • Width (outside of columns): 125 1/2" • Lift height max (with adapters): 77 3/4" • Overall width (outside of base plate): 134 1/2" • Time to full rise ( NO LOAD): 45 seconds (220 PU)
• Download the manual pdf HERE
• Shipping Weight: 1,500 lbs. • Can be picked up at local terminal • Residential deliveries not possible • Must ship to a business with forklift • Local pick up in Greensboro, NC 27405 • Shipping Dimensions: L 116" x W 20" H 37" • Free shipping applies to $400 maximum. If shipping exceeds this amount a surcharge may be needed
