Model: PXCMPC1682066

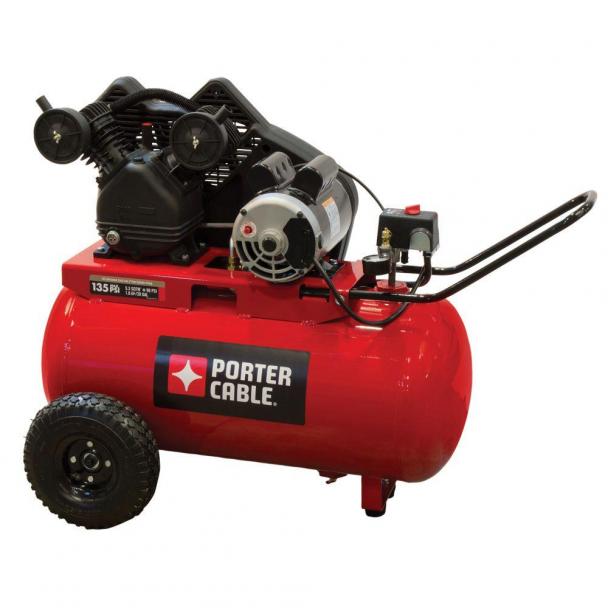

Porter Cable's 20 gallon compressor features a cast iron, v-twin cylinder, oil lubricated pump with a 1-piece cast iron crankcase, thermally stable cast iron cylinder body, aluminum head and machined cast iron valve plate, automotive style ball bearings, durable stainless steel reed valves, oil level sight glass, easily accessible oil fill, and 10 cast iron balanced flywheel. It features a heavy duty induction motor for maximum performance and efficiency. Enjoy a 20 gallon ASME portable tank equipped with pneumatic tires for maximum portability. Call or email us for a shipping quote today!
POWER SUPPLY • Single phase 120 V is standard • Can be wired for 240 V
WARRANTY • 2 year limited warranty
Show more
• 1.6 HP • Max 135 psi • 6.2 CFM @ 40 psi • 5.3 CFM @ 90 psi • 36" H x 34" L x 23" D
• Download the manual HERE
• Total weight 155 lbs • Residential deliveries cost extra • Free shipping to business w/ forklift • Can be picked up at local truck dock terminal • Shipping rebate for pickup in Springfield, MN • Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed
