Model: M1110

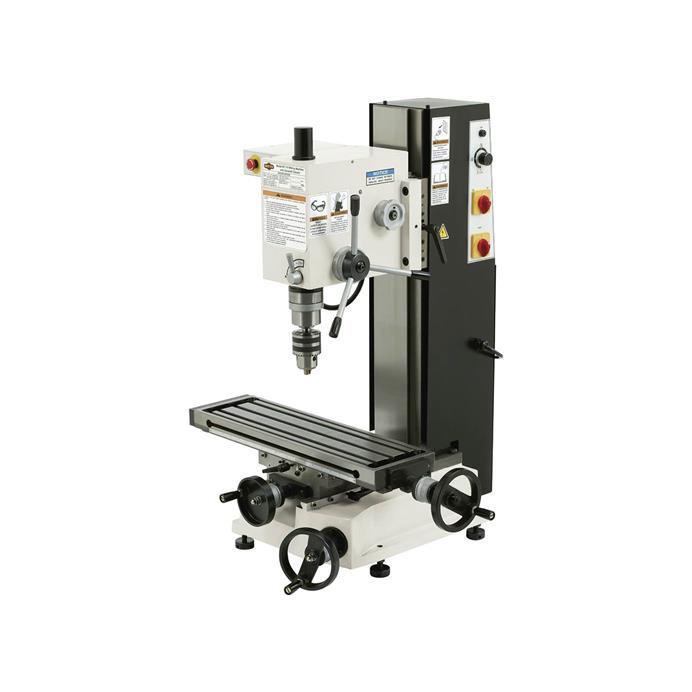

The M1110 allows for fast and easy tool changes without having to re-register the spindle centerline. The Z-axis hand wheel with the fully geared lift system easily lifts and lowers the headstock up to 14-3/4". A 3/4 HP reversible variable-speed universal motor drives an all-steel geared Hi/Lo range gearbox which drives the 60mm diameter quill and R-8 spindle. The precision ground cast iron milling table with coolant troughs and drain will accept an aftermarket coolant system and power feed. These features combined with the outstanding X and Y table travel of 5-3/4" x 15-1/2" make the M1110 Mill/Drill one of the most popular units available. Made in an ISO 9001 factory. Order yours today!
KEY BENEFITS• Coolant trough• Dovetail column• Reversing switch• Spindle taper R-8• Dial speed control• Hi/lo range gearbox• Extra drive belt included
Show more
• Swing 18"• Drilling capacity 1"• Speeds: Low 0-2000• 5/8" drill chuck and arbor• Headstock travel: 14 7/8"• Motor: 3/4 HP, 110V, Single Phase 2" diameter maximum face cutter capacity
• Approx. shipping weight: 413 lbs• CA, CT, LA, MD, MA, RI, TN• Additional shipping fees apply when sent to above states• Shop Fox prohibits drop shipping to these states. Orders to these states will be shipped to Redline and then to you• Shipments to all other 41 continental states will incur no extra fee• Free shipping is to a commercially zoned business with a forklift or to nearest LTL truck terminal for local pick up
