Redline TC500M Manual Tire Changer

Model: TC500M

(2 reviews)

Optional Accessories


Pit Posse 1 Quart Tire Mounting Lube

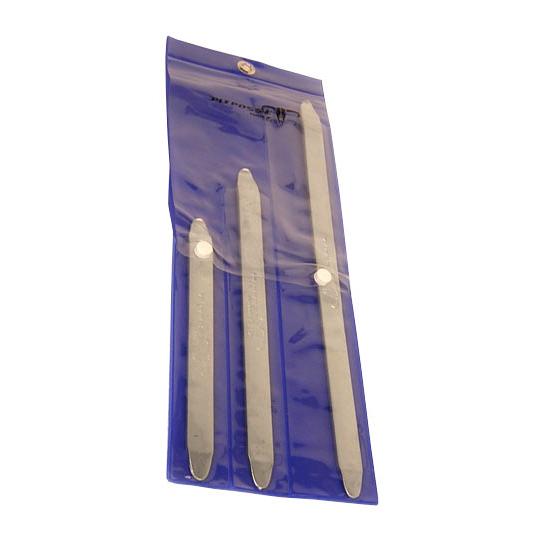

3 Piece Tire Iron Kit


Rim Saver/Wheel Protectors


Tire Tamer Tool

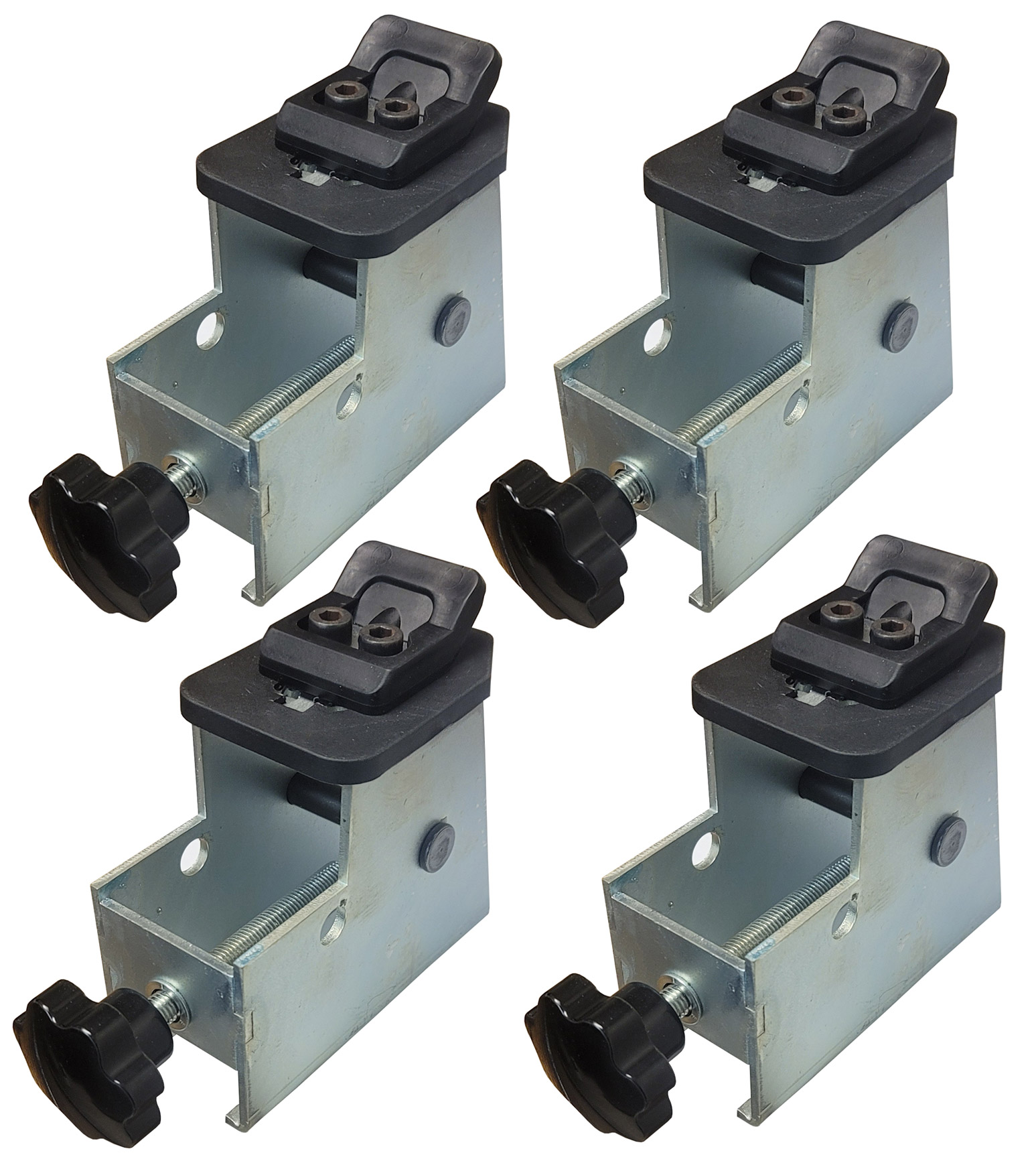

Motorcycle & ATV Riser Adapters


16" Ultimate Tire Iron
Brand

Shipping upgrades offered in cart page

$999.50

Description

Looking to change both motorcycle and automotive tires and wheels? Introducing the new Redline TC500M manual tire changing machine. This unit is perfect for the home enthusiast looking to change tires without all the expense of a powered changer. By removing tons of complicated and expensive motors and pneumatic valves, the TC500M simplifies the tire changing machine down to a much more reliable workstation with less parts to break. It features a fully adjustable built-in bead breaker capable of tires from small to large plus adjustable clamping feet that handle wheels of many different sizes. Order your manual tire changer today and forget about over complicated machinery!

• Not for dome-style dually truck wheels/tires

MAX DIAMETER
• Machine CANNOT change tires larger than 36" diameter regardless of wheel size


Show more

Specs

• Turn table 22"
• Arm pivots 90 degrees
• Max tire diameter: 36"
• Assist bar to turn table 36"
• Turn table height from floor 25"
• Overall dims: 48" x 37" x 77-1/4"
• Handles wheels as wide as 11.81"
• Arm length (front to pivot point) 20.5"
• Outside rim clamping min 8" to max 28"
• Total height excluding adj top bar 55.75"
• Inside rim clamping from min 10" to max 27"

Downloads

• Download the manual pdf HERE

Shipping

• Shipping weight 357 lbs
• Net machine weight – 271 lbs
• Shipping dims L 46" x W 27" x H 37" Class 77
• Non 48 states customers must call in order
• Residential deliveries w/ lift gate cost extra
• Ships to commercial location with forklift
• $150 rebate for picking up in Pensacola, FL
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.5 / 5 (2 reviews)
Based on 2 Reviews Write review
  • S. Phipps Nov 21, 2019

    TC500M Tire changer, fast delivery and well made

    Nov 21, 2019
    I couldn't be happier with the TC500M tire changer I ordered. Delivery was fast with no shipping damage due to a strong shipping crate and the tire changer was surprisingly well built. It included (4) sets of plastic pads for the mounting head, a set of pads for the clamp jaws as well as one on the bead breaker. Even the included tools were better quality than I was expecting. I have used it several times now and it is rigid enough that even 45 series tires don't pull the mounting head into the rim. Great service, fast shipping and much better quality than anticipated.
  • Dan Kunde Jan 2, 2024

    A great Tire Changer at a great price

    Jan 2, 2024
    We bought this tire changer because we didn't want to have to buy an expensive piece of equipment AND upgrade our air compressor capacity. This tire changer was perfect! Our previous tire machine would only allow us to change up to 15" tires. The TC500M works great for all our needs. The tubular metal arm that rotates the deck and works the bead breaker could be better constructed (ours bent) but other than that the TC500M has been a welcome addition to our workshop. The price was great and the customer service was great too!

Ask & Answer

  • Josh Feb 21, 2024
    Q. Can the TC500M handle a 235/85 truck tire? I'm tracking the rim diameter being 16 inches is fine, more concerned about the outer diameter. Thanks
    A. The TC500M can handle tires up to a maximum of 36" in diameter. Thanks for your question Josh!
  • Dan Sep 27, 2023
    Q. Will the duck head work on riding mower tires? Also will all of the additional add ons work with changing riding mower tires? I have a small engine repair business and I’d like to make changing the tires easier.
    A. We have never tried this machine on extremely small diameter tires, so we cannot elaborate in terms of how well things like the duck head will work with tiny tires. Sorry Dan, but we simply don't have experience in your area.
  • Dan Sep 27, 2023
    Q. Will this work for changing riding lawnmower tires?
    A. It depends sir. It can clamp onto a wheel as small as 8 inches via outside clamping and 10 inches via inside clamping. If it can clamp it, it can change it. Thanks Dan.
  • Racer Aug 24, 2023
    Q. Why wouldn't this do dually wheels/tires ?
    Thank you.
    A. The manufacturer tells us this, but we've never actually tried it ourselves to see how and why there might be an issue. Sorry, but we don't have a good answer to your question sir.
  • Bob Fee Aug 09, 2023
    Q. I am looking to purchase this for a golf course shop. Do you have a distributor/supplier in Ontario, Canada? Thank you, bob
    A. No sir. We can ship it to you, but you'd need to hire a customs broker to clear it through customs for you. You could also have us ship to a border-side city freight terminal, and you drive into the U.S., pick it up, and carry it back into Canada yourself. I hope this helps!
