What is the min ceiling height req'd for this unit, and what r the req'd footers under each leg on a new pour floor slab?

This lift is adjustable to either 142” or 146” in height. So, depending on which setting you plan to use, we believe it’s a good idea to give yourself 2” of extra ceiling height. As for the concrete foundation, you’ll learn everything you need to know in THIS VIDEO. Thanks for your question Cliff.

Titan 11K 2 Post Lift | HD2P-11000ACX

In need of a higher lifting capacity but don't have the ceiling height for a larger lift? The adjustable Titan 11000ACX might just be the answer to your problems. This 11,000 lb. capacity two post asymmetric clear floor style lift features adjustable columns that give the lift an overall height of 142" to146" which gives it the same overall height as the standard 9K clear floor lifts. Call or email us today for a shipping quote.

KEY BENEFITS
• All hydraulics included
• Free mounting hardware
• Single point safety lock release

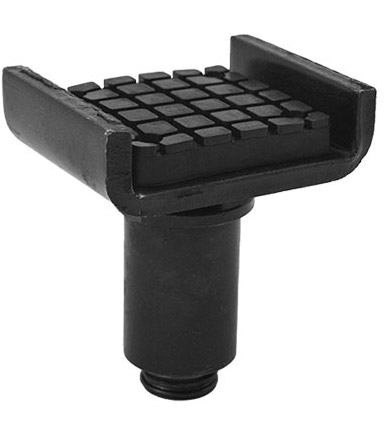

• Includes stackable truck adapters
• Ideal for auto passenger cars & light duty trucks
• Powder coated finish looks great and resists rust
• Padded cut-off bar is an automatic electric override
• 5 year structural, one year hydraulic/electric warranty

INSTALLATION HOW TO
• View our install blog HERE

• Lifting height 72"
• Low pad height 5.5"
• Drive thru width 98.5"
• Overall width 137.375"
• Shipping weight 2,025 lbs
• Overall height 142" to 146"
• 11,000 pound lifting capacity
• Warranty: 5 year structural / 1 year parts
• 2HP 220V motor @ 20 amps lifts in 50 sec.
• Lifting height with included truck adapters 78.5"
• Uses AW-32 or ISO-32 / 10 weight hydraulic fluid

• Download installation manual HERE
• Download the spec sheet HERE

• Download the How to Install a Two Post Auto Lift Manual HERE

• Residential deliveries not possible
• Can be picked up at local terminal
• Must ship to a business with forklift
• Pensacola, FL pickups – read our policies HERE
• Ship weight 2026 lbs at L 116" x W 20" x H 47" Class 77
• Free shipping applies to $700 maximum. If shipping exceeds this amount a surcharge may be needed
