Kernel 11K 2 Post Clearfloor Bi-Symmetric Lift

Model: TP11KC-DX

Capacity
Brand
Type
Optional Lift Accessories


Add RE-RD8 Gallon Oil Drain


Add RE-RD30 Self Evacuating Oil Drain


Add ODT-30-E Self Evac Vac Oil Drain


Add RE-AJS Auxiliary Jack Stand


Add Two RE-AJS Auxiliary Jack Stands


Add RE-LD Transmission Jack


Add TJ500 Transmission Jack


Add TJ500DT Transmission Jack


Add TJ2KDT Transmission Jack


Add Pair of Redline 12” Foam Door Protectors


Add RESS1 Under Hoist Stand


Add Two RESS1 Under Hoist Stands


Add Set of 4 Cradle Style Feet
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.

The price will increase on 06-30-2023 Reg. $4,569.99 Sale price $3,999.50
12% off

Description

Introducing Kernels TP11KC-DX Bi-Symmetric 2 Post Lift! This clear floor lift features a pair of hydraulic direct drive cylinders, 3 stage front arms, a single point lock release, and low profile arms. This lift also includes 2" & 4" stackable truck adapters. Order yours today!

KEY BENEFITS
• Direct drive
• Spin up pads
• Low profile arms
• Symmetric columns
• 3 stage front arms
• Rubber door guards
• Single point lock release
• Asymmetric/Symmetric arm configuration
• Includes 2" & 4" stackable truck adapters
• Ideal for auto passenger cars & light duty trucks




RETURNS
• Our supplier does not accept returns on this item
​​​​​​​• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

• Motor: 2.5HP
• Min pad height: 4"
• Overall height: 144"
• Max lift height: 71"
• Capacity: 11,000 lbs.
• Lifting speed: 50 sec
• Power: 220V, 20Amp, 1PH
• Drive thru clearance: 104"
• Width between columns: 116"
• Base plates are 31/64” thick steel
• Overall width with power unit: 145-1/2"

Downloads

• Browse the full manufacturer catalog HERE
• Download the spec sheet HERE
• Download the manual pdf HERE

Shipping

• Residential deliveries not possible
• Ships 1,705 lbs. at 144" L x 21" W x 53" H
• Can be picked up at local truck dock terminal
• Ships LTL truck freight to business w/ forklift
• Free shipping applies to $700 maximum. If shipping exceeds this amount a surcharge may be needed
• Pickup at satellite warehouses:
- Temecula, CA  92590
- Boise, ID  83709
- West Valley, UT 84119
- Marshalltown, IA 50158
- Elwood, IN 46036
- Bow, NH 03304
- Wilmington, DE 19802
- Reidsville, NC 27320
- Norcross, GA  30071
- Orlando, FL 32809
- Alvarado,  TX  76009
- Lowell, MA 01852
- Southfield, MI 48033 (no customer pick-ups allowed)







Videos

Similar Products

Ships free for ~ 500 milesSale
Triumph 11K 2 Post Clearfloor Lift with Single Side Release
Triumph 11K 2 Post Clearfloor Lift with Single Side Release Reg. $4,399.99 Sale price $4,299.99
2% off
Ships free for ~ 500 miles
Titan 11K Adjustable Clearfloor 2 Post Lift
Titan 11K Adjustable Clearfloor 2 Post Lift $5,139.99
Ships free for ~ 500 miles
Launch 11K Asymmetric 2 Post Clearfloor Lift ALI Certified
Launch 11K Asymmetric 2 Post Clearfloor Lift ALI Certified $6,499.99
Ships free

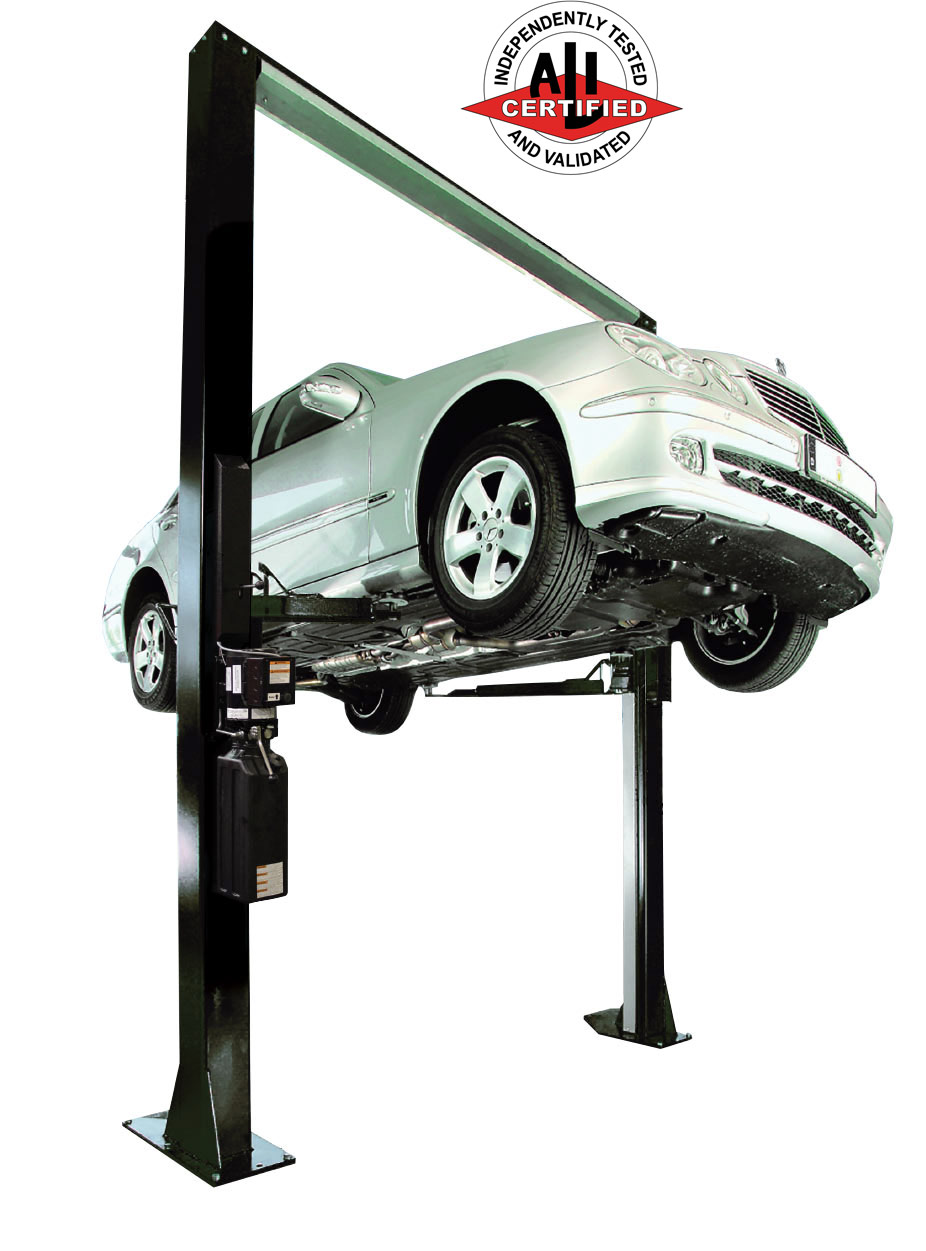

[DISCONTINUED Nussbaum 10,000 lb USA Made Asymmetric 2 Post Lift
