Model: SDPL-8KMS
The Titan Master Series 4-post parking/storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. The internal linkage rods are sleek and hidden, while still accessible for adjustments if needed. This feature makes The Master Series a perfect lift for the individual who may work on their vehicle while on the lift. Order yours today!

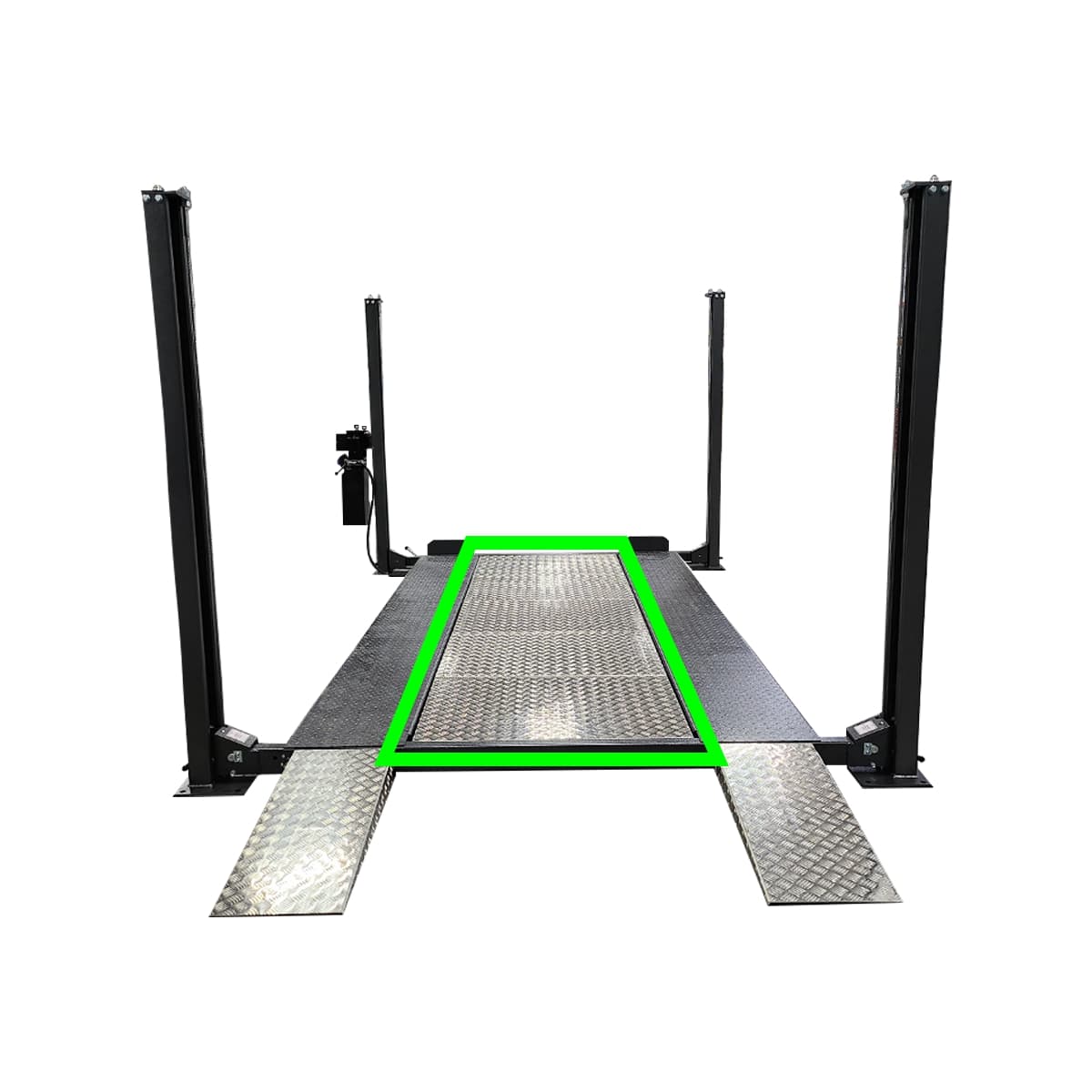

OPTIONAL Aluminum Center Deck Package provides 5 pieces to completely cover the area between runways KEY BENEFITS • Internal linkage rods • 8,000 lb lifting capacity • 2-year electrical warranty • 2-year hydraulic warranty • 6-year structural warranty • Metal hydraulic tank reservoir • Powder coated hammered dark finish • Single point safety lock release handle • Diamond plated steel one piece formed runways • Includes aluminum ramps, caster kit, 3 drip trays, tool tray, and 2 wheel stop plates • Optional aluminum center deck package, jack tray, and sliding bridge jack available
Show more
• Drive-Thru: 90” • Length of Runway: 160” • Overall Height: 83-9/16” • Between Runways: 43-1/2” • Shipping Weight: 1,667 lb • Lifting Capacity: 8,000 lb • Width of Runway: 18-11/16” • Out To Out - Runways: 80-7/8” • Total Length of Ramp: 36-5/8” • Overall Width w/Motor: 122-5/8” • Lifting Height: 4-1/2” - 76-3/4” • Overall Length w/Ramps: 201-7/16” • Column Dimensions: 3-3/8” x 6-5/16” • Inside of Columns - Width: 100-3/8” • Inside Of Columns - Length: 151-3/4” • Outside Of Columns - Width: 107-1/16” • Outside Of Columns - Length: 164-3/8” • Center Of Baseplates - Width: 99-5/8” • Center Of Baseplates - Length: 158-1/16” • Outside Of Baseplates - Length: 169-7/8” • Outside Of Baseplates - Width: 109-13/16” • Baseplate Dimensions: 11-13/16” x 10-1/4”
• Can be picked up at local terminal • Residential deliveries not possible • Must ship to a business with forklift • Local pickup in Greenwood, IN available • Lift ships 1667lbs. at 164" L x 23" W x 45" H • Aluminum center deck package ships 195lbs. at 48" L x 40" W x 26" H 5 pieces
