Kernel 9K 9000 lb. 4 Post Automotive Parking Lift

Model: FP9K-DX-XLT

(1 review)

Please Choose:

Optional Accessories

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands

A generic image

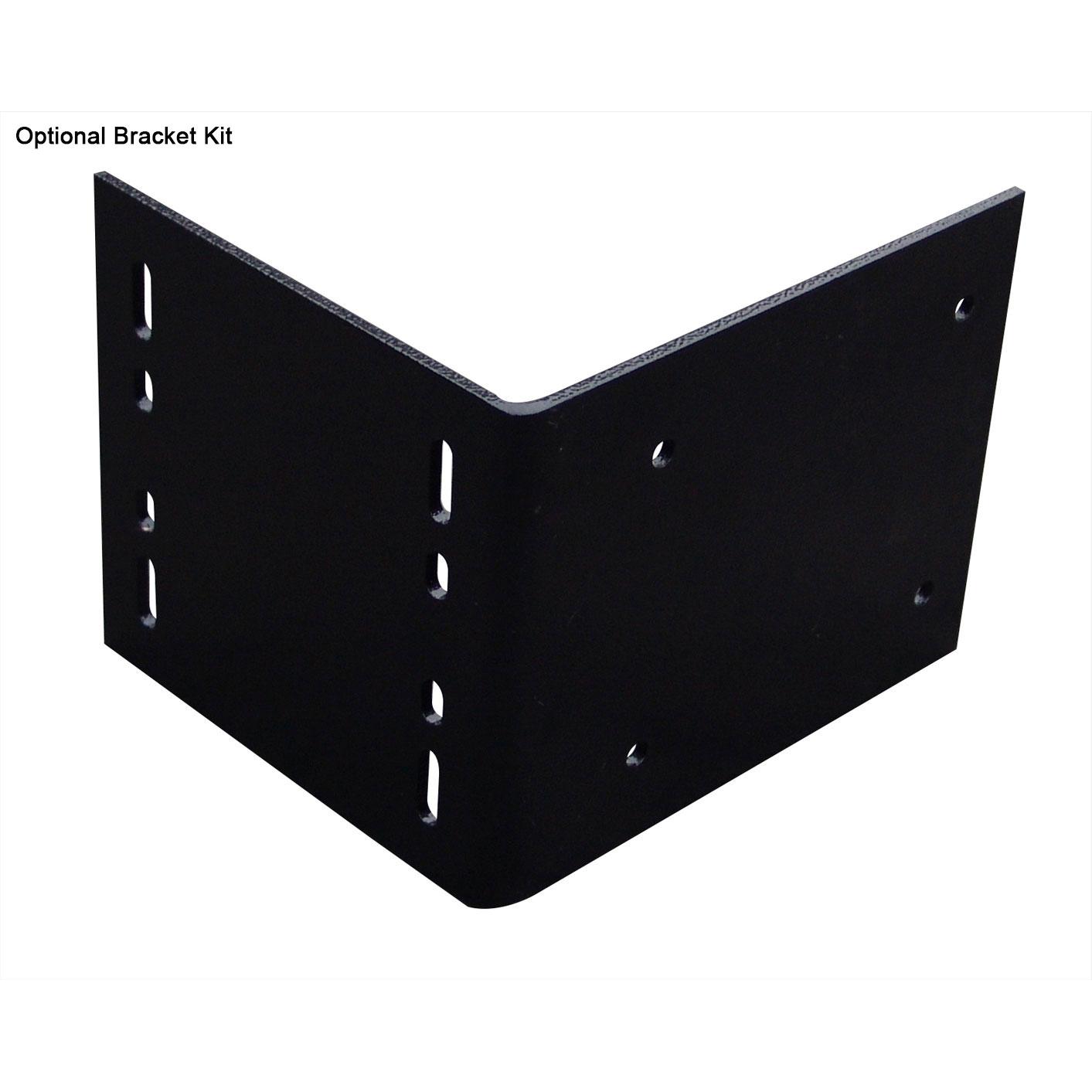

Power Unit Relocation Bracket

A generic image

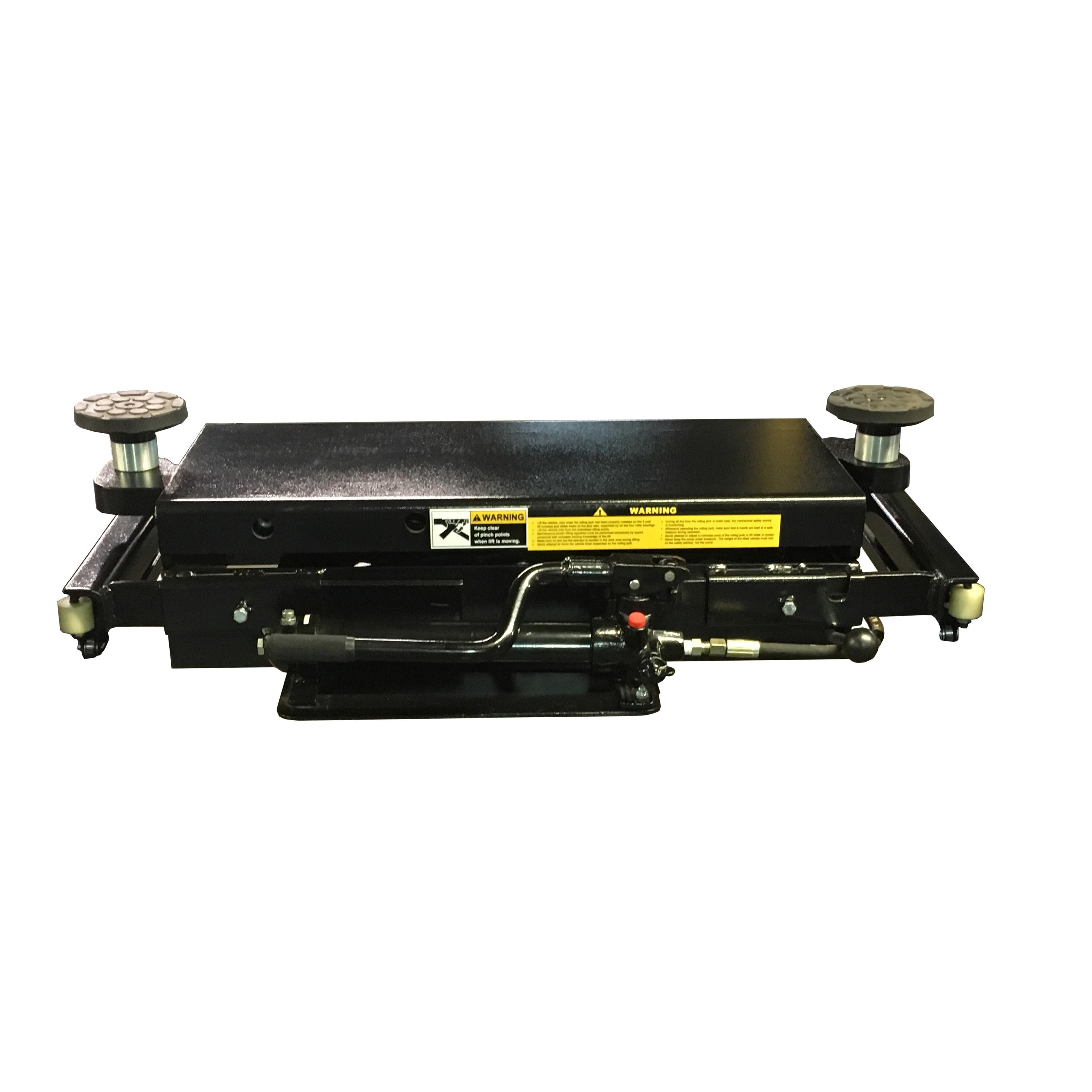

4,500 lb. Rolling Bridge Jack (RJ-45)
Capacity
Brand
Type

Shipping upgrades offered in cart page

$5,219.99
delivery icon

Usually Ships Within

24-48 Hrs

Description

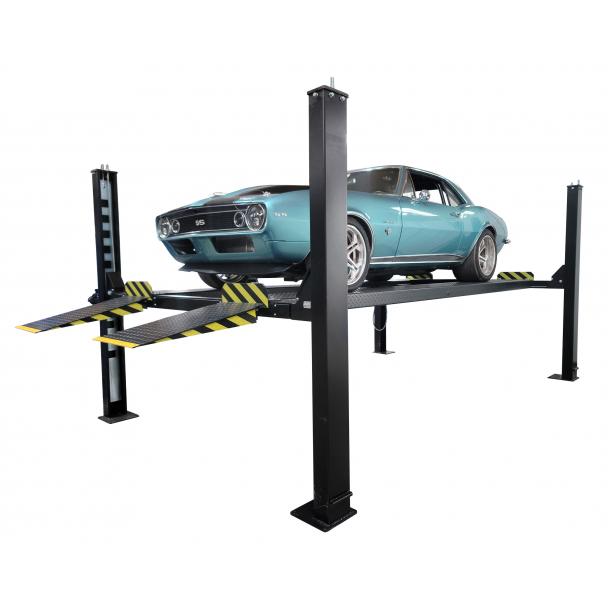

This is the Kernel 9,000 lb. 4-post parking/storage lift. It features multiple position automatic locking mechanisms and enclosed carriage arms to ensure maximum safety, as well as heavy-duty, one-piece, 3/16" diamond plated runways that are 18'' wide, a 3" cylinder and a durable scratch-resistant powder coated black finish. This unit has an easy operation lock handle that is located by the power unit to minimize any bending or squatting. An optional 9K-DX bracket kit can also be added to your 9K lift that allows the power unit to hang from the side of the column. Order your Kernel four post parking lift today!

KEY BENEFITS
• 110VAC / 15A motor
• Ideal for auto passenger cars
• Built-in safety locks ensure safety
• Include drip trays, a caster kit, and a jack/tool tray
• Powder coated finish looks great and resists rust
• Has lock ladders that are adjustable (free floating)
• Optional 9K-DX bracket kit puts power unit on the side of the 9K lift column

COMPATIBILITY
• Aluminum ramps will not fit this lift
• Kernel 6k & 8k bridge jacks will not fit this lift

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

FP9K-DX-XLT
• Weighs 2365 lbs
• Column height: 97"
• Lifting height: 85"
• Overall width: 123"
• Runway height: 4.80"
• Drive thru width: 99"
• Locking positions: 11
• Runway length: 188.5"
• Power: 110V-15A, 1PH
• Rise time: 90 seconds
• Runway tread width: 20"
• Approach ramp length: 37"
• Lifting speed: 90 seconds
• Clearance under runways: 81"
• Clearance between runways: 39.5"
• Clearance between columns: 111.5"
• Outside runway to outside runway: 79"
• Overall length with/without ramps: 239" / 197"

Downloads

• Browse the full manufacturer catalog HERE
• Download the spec sheet HERE
• Download the manual pdf HERE

Shipping

• Residential deliveries not possible
• Ships 2310 lbs. @ 201" x 29" x 23" Class 77
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Pickup at satellite warehouses:

- Temecula, CA  92590
- West Valley, UT 84119
- Marshalltown, IA 50158
- Elwood, IN 46036
- Bow, NH 03304
- Reidsville, NC 27320
- Norcross, GA  30071
- Orlando, FL 32809
- Alvarado,  TX  76009
- Southfield, MI 48033 (no customer pick-ups allowed)




Videos

Related Products

Ships free for ~ 500 miles
Triumph NSS11000 11,000 lb. Service Storage 4 Post Lift
Triumph NSS11000 11,000 lb. Service Storage 4 Post Lift
$6,689.99
iDeal FP14KC-X 14K Automotive 4 Post Lift
iDeal FP14KC-X 14K Automotive 4 Post Lift $8,059.50
Ships free for ~ 500 miles
test product 1 cents
test product 1 cents $500.00
14,000 Lb Kernel Mfg 14K 4 Post Lift
14,000 Lb Kernel Mfg 14K 4 Post Lift
$6,929.99
Ships free for ~ 500 miles
Triumph NSS-9000DW Four Post Auto Double Parking Lift
Triumph NSS-9000DW Four Post Auto Double Parking Lift $8,139.50
Ships free for ~ 500 miles
Triumph 9K 9,000 lb Storage 4 Post Automotive Parking Lift
Triumph 9K 9,000 lb Storage 4 Post Automotive Parking Lift $6,689.99

Reviews

5.0 / 5 (1 review)
Based on 1 review Write review

  • Jim Revels Jul 16, 2024

    Outstanding 4 Post Lift

    Jul 16, 2024
    I cannot express how happy I am with my purchase. The means of shipping, quality of product, installation, instructions, and assembly was seamless. Customer service and impeccable.
1 of 1 review

Ask & Answer

  • Josh Jan 01, 2022
    Q. What concrete/foundation requirements does this lift require? (thickness of concrete, etc.)
    A. Four posts don't generally require much. I downloaded the manual from the "downloads" tab on our site and found it was 4" thick at 3,000 psi. You can use the control+F feature on your computer to search for a term like "concrete" or "cement" and you'll often find what you're looking very quickly. Thanks for your question Josh!
