8,000 Lb Kernel RAJ-8K Rolling Bridge Air Jack

Model: RAJ-8K

Brand
Truck carriers charge extra to deliver to locations that have no forklift on site, and also for any location not on commercially zoned property. This includes businesses run from your home property, and next door to it. These are not Redline’s fees and sadly they are unavoidable. All truck carriers charge them.

$2,299.99

Description

The RAJ-8K rolling air jack is a high quality, scissor type, air bag jack that's capable of an 8,000 pound capacity. It features an air/hydraulic operation for easy use along with stackable pad & height adapters. With a universal roller design you'll be able to slide this jack into the required position with no problems. Buy yours today!

KEY BENEFITS
• Dual air bags
• Telescoping support arms
• Universal roller body design
• Dual protective scissor skirts
• Two locking height positions
• Adjustable pressure regulator
• Air hydraulic operation system
• 1 pair of rubber height adapters
• Stackable pad & height adapters
• Guide wheels with adjustable height
• Spring loaded precision roller bearing

MODEL CHOICES
• Low mount profile model
   -Incorporates adjustable height brackets suitable for low mount jack rails to avoid high profile jacks from touching the ground when lift is fully lowered.
• High mount profile model
   -Incorporates adjustable height brackets suitable for medium to high mount jack rails to avoid high profile jacks from touching the ground when lift is fully lowered.

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

• 10-20 CFM
• 100-125 PSI
• Lift capacity of 8,000 lbs.
• Low mount body bracket height 1"
• High mount body bracket height 1"
• Rubber adapter height 1(5/16)" & 5" (1 pair)
• Lifting arms min 35(7/16)" / max 58" (pad center)
• Lifting height min 6(9/16)" / max 15" (pad adaptor only)
• Telescoping support arms min 38" / max 60" (Roller body wheel center)

Downloads

• Browse the full manufacturer catalog HERE

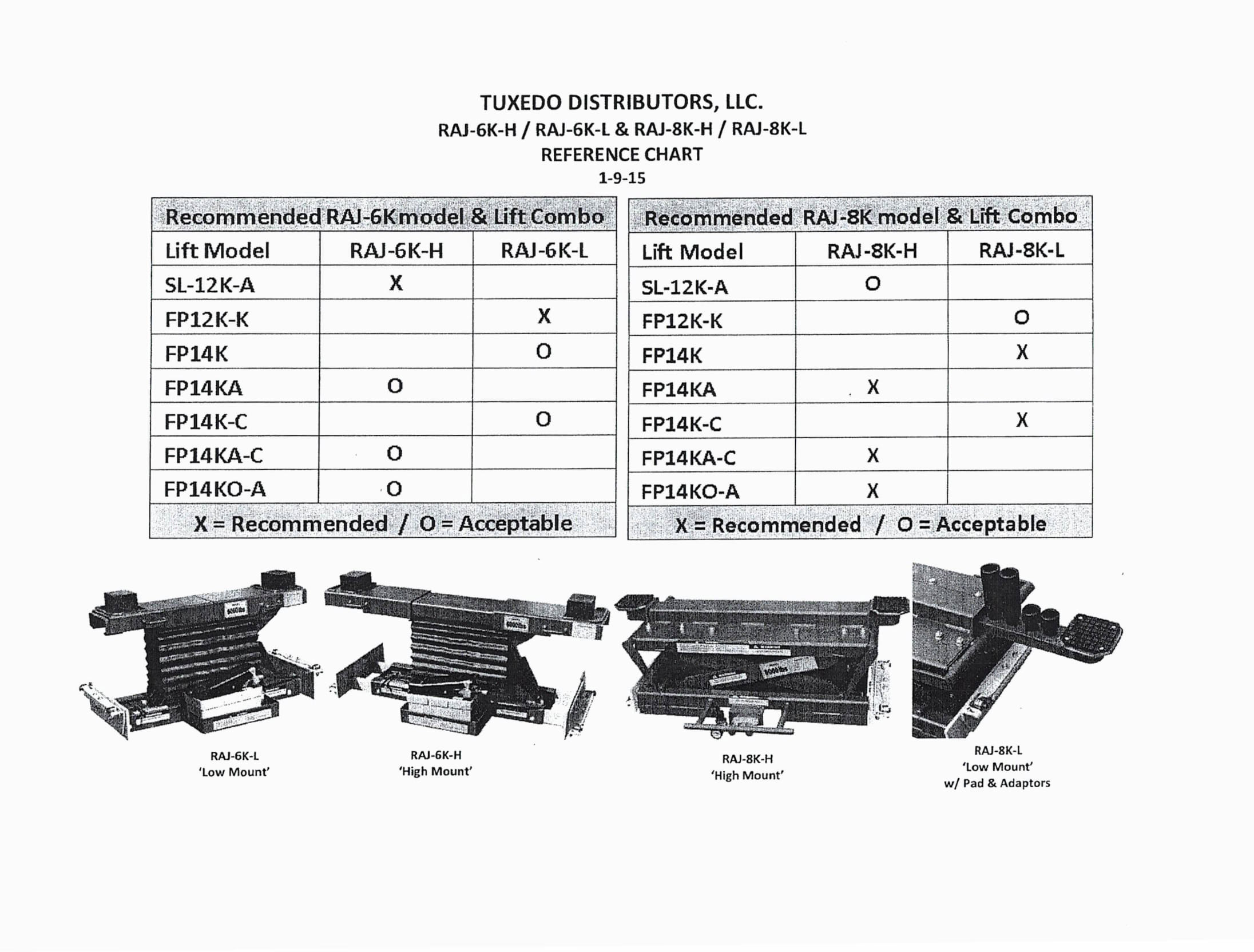

• Download the reference chart HERE
• Download the pdf spec sheet HERE
• Download the pdf manual sheet HERE

Shipping

• Residential deliveries cost extra
• Ships 426 lbs. 29" W x 12" H x 43" D
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed

• Pickup at satellite warehouses:
- Alvarado,  TX  76009
