Model: FP16K-A

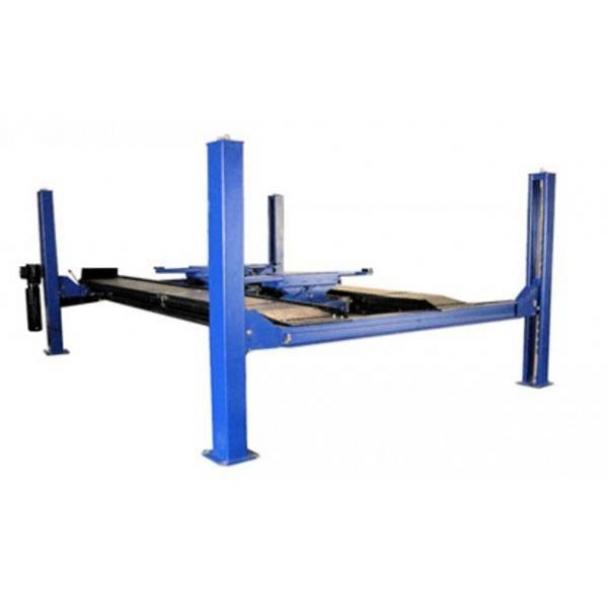

The Triumph 16K 4 Post Alignment Lift takes after it's sibling lift, the Triumph NTR-16. It features a blue and black powder coat finish, high quality aircraft cables, and a heavy duty cylinder system. It also includes turntables, rear slip plates, and 2 rolling jacks. Order yours today!
Show more
• Track Width: 21.5" • Track Length: 201" • Lifting Height: 72" • Overall Height: 87" • Overall Width: 149.5" • Cylinder: 4" Diameter • Drive Thru at Tires: 110" • Slip Plates: 57.5" x 20.5" • Width Between Posts: 133" • Approach Ramp Length: 44" • Lifting Capacity: 16,000 lbs. • Front Wheel Stop height: 7.5" • 4 Base Plate Columns: 12" x 12" • Column Width x Length: 6" x 8.5" • Heavy Duty I-Beam Crossrails: 6" Height • Overall Length with Approach Ramps: 245" • Overall Length without Approach Ramps: 202" • 16 Automatic Locking Positions: 1" between locks • Power unit/Motor: 220V, 3HP, 60HZ, 20 Amps, 3360 RPM, 1 Ph, 4 gal.
• Residential deliveries not possible • Returns of Triumph brand lifts not allowed • Ships LTL truck freight to business w/ forklift • Can be picked up at local truck dock terminal
