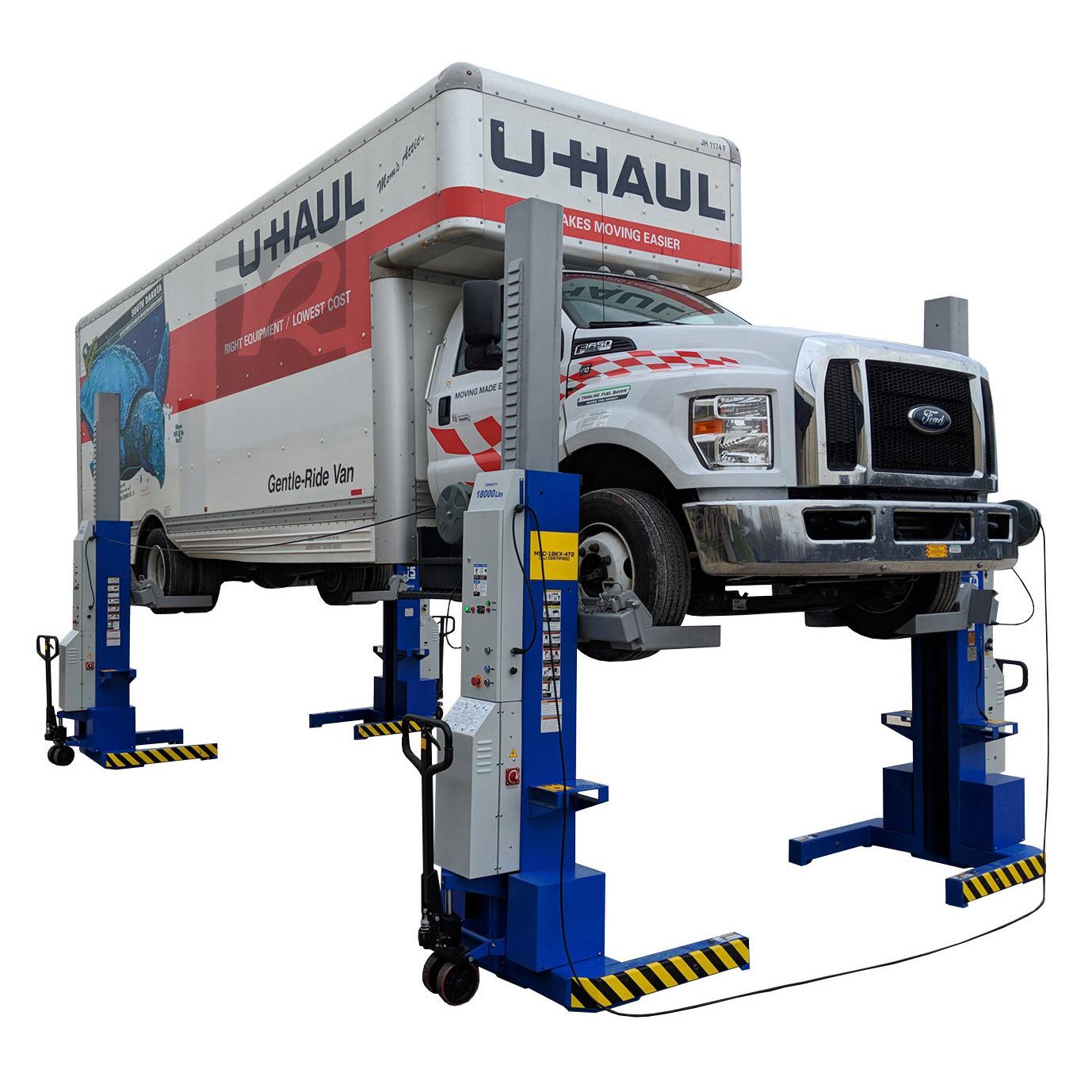

iDEAL 18K-X Mobile Column Pair Lift System ALI Certified

Model: MSC-18K-X

Please Choose:

Optional Accessories

A generic image
18K High Rise Stand

A generic image
Cross Beam + Attachments

A generic image
2x Cross Beam + Attachments

A generic image
Light Truck Vehicle Adapter Kit

A generic image
Forklift Adapter Ramps

A generic image
Two Fork Spacer
Brand

Shipping upgrades offered in cart page

$39,589.99
delivery icon

Usually Ships Within

24-48 Hrs

Description

The new 18K-X Mobile Column iDEAL 4 Column Lift System is designed to lift fire trucks, school buses, and other large commercial vehicles by the wheels. The well-designed control panel helps technicians improve productivity through safe, simple operation of the lift. Its mobile design and quick set up allows the user to easily transform a flat bay to a lift bay. Some features include an independent mechanical locking system, adjustable lifting forks for the widest range of wheel diameters, and a new LED light with magnetic base. Optional accessories provide improved flexibility. Sold as a set of 4 by default. Order yours today!

KEY BENEFITS
• Indoor set-up and operation
• Your choice of 2, 4, or 6 columns
• New LED light with magnetic base
• Ideal auto light & heavy duty trucks
• Convenient operation from any column
• Independent mechanical locking system
• Communication cable with retractable cable reels
• 24VDC battery operation with onboard charging system
• U-Shape wiring configuration for quick vehicle entry & exiting
• Adjustable lifting forks for the widest range of wheel diameters
• PLC & optical encoder provides continuous synchronization for columns
• Easily positioned with pallet jack type device with poly caster wheels
• Emergency switch per each column, provides the highest safety assurance
• Conveniently stored out of the way when not in use to maximize work space
• Easy to use master control panel for individual or paired synchronized operation
• LCD screen with keypad offers ‘easy to read’ visuals for settings lifting height
• New optional MSC ALI certified accessories available (view specs pdf for more info)

SAFETY
• Must be used on concrete surface for safety reasons

WARRANTY
• 1 year parts warranty
• 5 year structural warranty
• After 90 days, customer pays shipping charges on warranty parts

RETURNS
• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more

Specs

• 24 volt system
• Fork length: 17.9"
• Column width: 44.1"
• Lifting height: 67.1"
• Rise time: 100 seconds
• Fork to column clearance: 10"
• Capacity: 18,000 lbs. per column
• Fork adjustable range: 12.6" - 22"
• Max distance between columns: 32.8"
• Column height min/max: 88.6" / 155.5"
• Min concrete surface strength: 3,000 PSI
• Charging voltage: 100-140VAC, 60Hz, Single Phase
• Battery type (recommended): 12VDC sealed deep cycle battery (BCI group 31, AH 105)

Downloads

• Browse the full manufacturer catalog HERE
• Download the spec pdf HERE
• Download the manual pdf HERE
• Download the battery specs pdf HERE

Shipping

• Cannot ship to residence
• Individual weight 1584 lbs.
• Set of 4 ships 6,336 lbs. at 8' W x 10' L x 89" H
• Ships to business with forklift or local terminal
• Max free shipping amount per 2 columns listed below. If shipping exceeds this amount a surcharge may be needed
   $1500 / 2
   $2500 / 4
   $3500 / 6

• Pickup at satellite warehouses:
- Alvarado,  TX  76009
