[DISCONTINUED]Redline Engineering RL175 Motorcycle ATV Lift Jack

Model: RL175

Shipping upgrades offered in cart page

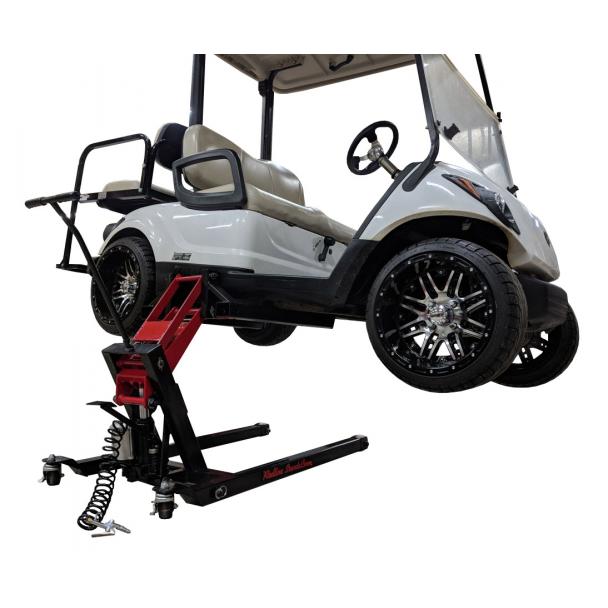

Lift nearly everything from your motorcycle or ATV to your lawnmower with the new Redline RL175 Motorcycle ATV Lift Jack! This handy piece of machinery includes 2 locking casters, a handle, a coiled hose, and a safety lock bar for your 3 locking positions. It features a red powder coated finish, a 1500 lb. lifting capacity, and is powered by both air and pump action. Just simply look underneath your project to ensure nothing protrudes below the frame rail where you intend to lift and you're good to go. Order yourst today!

• 2 locking casters
• Powder coat finish
• 3 locking positions
• Sold as solid black
• Lifting capacity: 1500 lbs.
• Compact for easy storage
• Pump action or air powered
• Removable handle for easy movement
• Fits nearly every common cruiser on the road as well as ATVS and lawnmowers

Show more


• Handle length: 24"
• Min lift height: 3-5/8"
• Max lift height: 31-1/2"
• Metal thickness: 0.151"
• Distance between arms: 15"
• Coiled hose length: ~100" - 110"
• Arm dims: 31-3/8" L x 3" W X 2 1/2" H
• Air motor requires 7 CFM of air supply
• Overall dims (w/o handle): 55" L x 29-3/8" W x 23" H
• Locking position height (top/middle/low): 26-5/8", 20-3/4", 15-3/8"


• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Ships 263 lbs. at 59" x 32" x 30" class 92
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $150 maximum. If shipping exceeds this amount a surcharge may be needed
