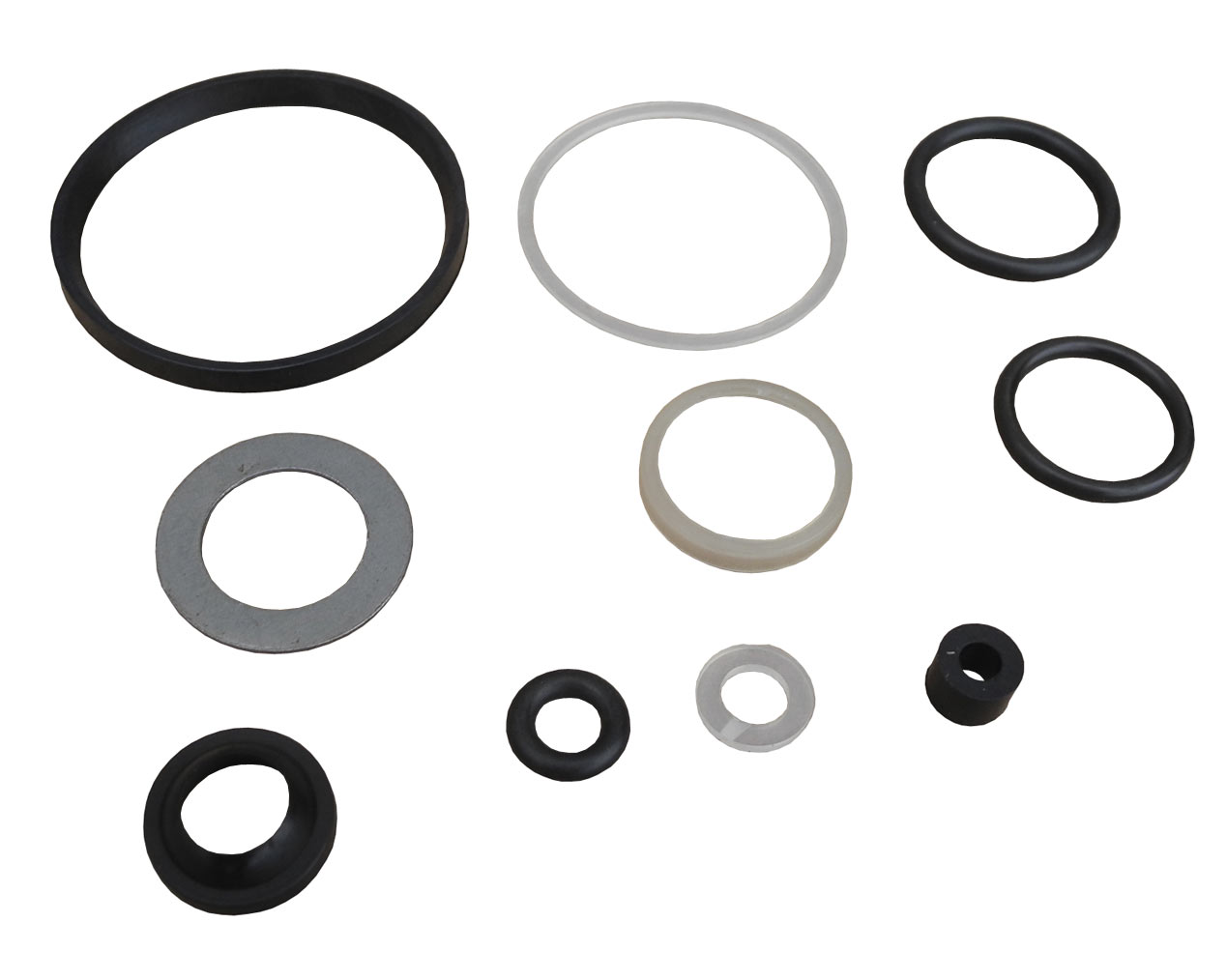

Redline Motocross Lift Bottle Jack Seal Kit
Redline Motocross Lift Bottle Jack Seal Kit $34.95
Ships free
Risk Racing Adjustable Motocross Starting Blocks
Risk Racing Adjustable Motocross Starting Blocks $149.95
Ships free
Redline 5 Ton Air Hydraulic Bottle Jack
Redline 5 Ton Air Hydraulic Bottle Jack $149.95
Ships free

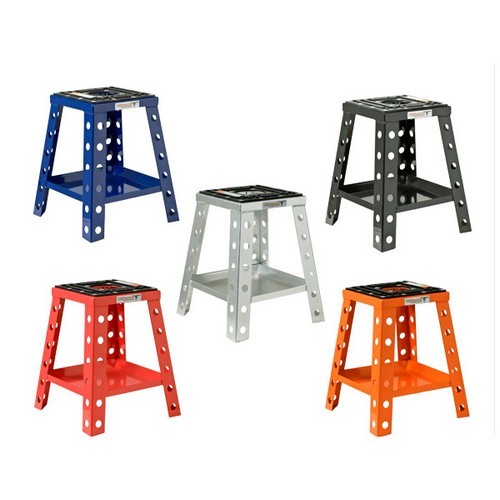

Pit Posse Econo Dirt Bike Moto Cross Stand
Pit Posse Econo Dirt Bike Moto Cross Stand $99.95
Ships free

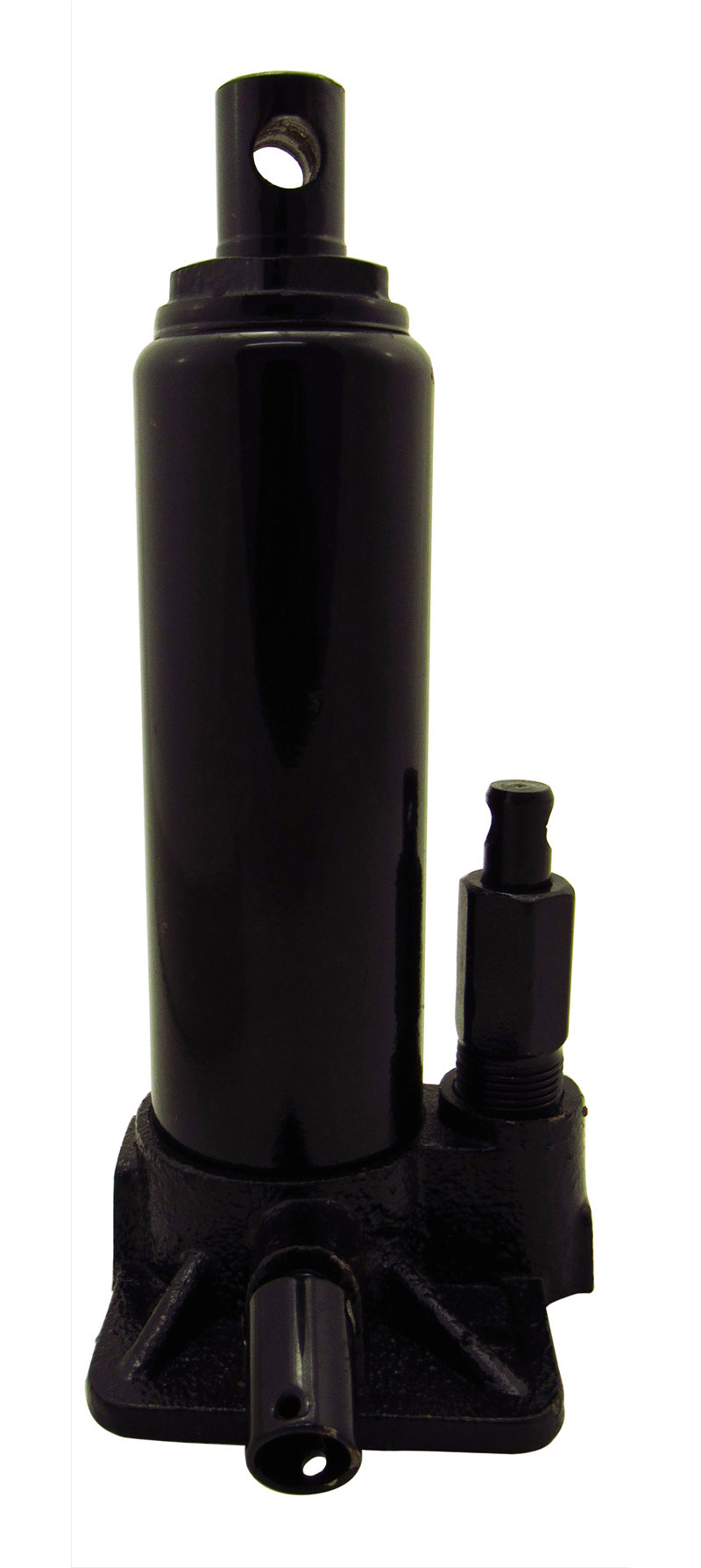

Pit Posse Motocross Lift Replacement Bottle Jack
Pit Posse Motocross Lift Replacement Bottle Jack $79.95
Ships free
Risk Racing RR1 Dirt Bike Lift
Risk Racing RR1 Dirt Bike Lift $219.95

Redline Motocross Lift Replacement Bottle Jack

Model: REML-BJ-P/M

Please Choose:

Brand

$119.95
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

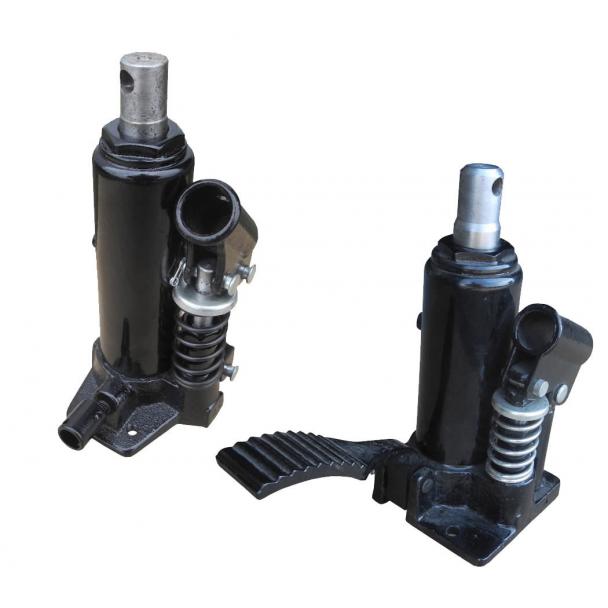

This is the OEM Redline factory replacement bottle jack for the ZD04303 motocross lift with casters, SD1003P portable motorcross lift with casters, or the SD1003M stationary motorcross lift without casters. The RELM-BJ-P model has a down foot pedal while the RELM-BJ-M model has a down knob you turn. Please refer to the notes below before purchasing. Order yours today!

RETURNS
• Returns of this product are only allowed in the event the bottle jack is defective.  Failed attempts to install this pump into a non-Redline “SD1003” motocross jack void the ability to return the product.

COMPATIBILITY
• Redline cannot and will not offer assistance determining if bottle jack will fit a non-Redline brand lift.  Decision should completely be made by customer using only information found on this webpage.



Show more

Specs

• Base: 4" x 4"
• Pedal length: 6"
• Stroke: 5-1/4”
• Retracted: 9”
• Extended: 14-1/4”
• 2,000 lb rated capacity
• Ram hole diameter: 10mm
• Overall dims: 4" W x 9" L x 9" H

ZD04303
• Base: 3-1/2" x 4"
• Pedal length: 5-1/2"
• Stroke: 5-1/4”
• Retracted: 8-5/8”
• Extended: 13-3/4”
• 2,000 lb rated capacity
• Ram hole diameter: 10mm
• Overall dims: 4" W x 9" L x 9" H

Downloads

• Download the 1003M view pdf HERE
• Download the 1003P view pdf HERE
• Download the Parts List pdf HERE



Shipping

• Ships 10 lbs. at 11" x 8" x 6"

Related Products

Ships free
Redline 5 Ton Air Hydraulic Bottle Jack
Redline 5 Ton Air Hydraulic Bottle Jack $149.95
Ships free
Risk Racing Adjustable Motocross Starting Blocks
Risk Racing Adjustable Motocross Starting Blocks $149.95
Ships free
Pit Posse Econo Dirt Bike Moto Cross Stand
Pit Posse Econo Dirt Bike Moto Cross Stand $99.95
Ships free
Pit Posse MX Off Road Motorcycle Dirt Bike Lift
Pit Posse MX Off Road Motorcycle Dirt Bike Lift
$119.50
Ships free
Pit Posse Panel Dirt Bike Moto Cross Stand
Pit Posse Panel Dirt Bike Moto Cross Stand $119.50
Ships free
Pit Posse Motocross Lift Replacement Bottle Jack
Pit Posse Motocross Lift Replacement Bottle Jack $79.95

Reviews

Ask & Answer

  • The Greek Oct 03, 2024
    Q. Do you sell a rebuild kit for the 950190 Craftsman motorcycle jack hydraulic jack?
    A. No sir. We are not affiliated with Craftsman and have no knowledge of their products. Sorry.
  • Freebird Jul 18, 2024
    Q. Should that work for a classic heavy duty tow behind engine hoist? I received one and doesn't have the bottle jack to lift it. The engine hoist I think was built in the 1960s or 70s . The builders sticker says "McL.... and it has a black three leaf clover on it. Anything that you might be able to tell me would be helpful. Thank you.
    A. We are not familiar with that brand, and there are so many factors that come into play in this scenario. This jack is designed as a direct replacement for our Redline motocross jacks. Our jacks have a capacity of 300 Pounds, though the bottle jack itself can exert up to 2,000 Pounds of force. All we can suggest is that you carefully review the photos and dimensions listed on the product page and see if they align with what you need. We just don't know if it will work for your non-Redline product. Thanks for reaching out Freebird!
  • mb Mar 28, 2024
    Q. Is this bottle jack a replacement for the J&S bike lift jack?
    A. That's our competitor's product. I'm sorry Mike, but we have no idea if our product will fit our competitor's jack.
  • Jan Mar 22, 2024
    Q. would one of your jacks replace a craftsman #50109
    A. I'm sorry but we're unable to answer that question. There are so many competitors out there who make jacks similar to our jacks, that naturally we don't test our replacement parts on our competitor's lifts. In this situation, referencing our posted specs against your lift with the hopes of making an educated decision is about the best you can do. Sorry we can't be of more help on these types of requests.
  • Jack Oct 04, 2023
    Q. Can you recommend a replacement bottle jack for a vivohome lift?
    A. I'm sorry sir, but we just don't have any idea which, if any, of our replacement bottle jacks fit a Vivohome lift. Honestly, we've never even heard of Vivohome before. This is kind-of the unfortuante truth in buying these non-name-brand lifts off Amazon. Those companies don't exactly support their equipment with parts after the sale, so when it breaks, it's basically time to throw it away. Sorry for the lousy news Jack.
