Model: AV1020

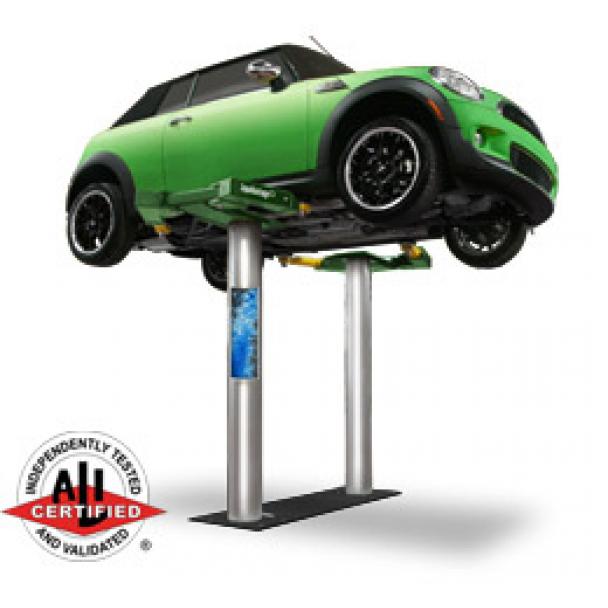

The Challenger AV1020 Inground Lift is a new EnviroLift® that's now for sale! Featuring patented AquaVantage™ technology that runs on air and tap water instead of an electric motor and hydraulic oil, large anodized aluminum pistons, an air actuated water control valve, drive-over recessed hex bolts, and double telescoping screw pads, this lift is both efficient and environmentally friendly! Order yours today! KEY BENEFITS • Runs on air and tap water • 3-stage front and rear arms • Drive-over recessed hex bolts • Double telescoping screw pads • Air actuated water control valve • 80" rise provides max head room • Electric motor & hydraulic oil not needed • 8-1/4" double-walled anodized aluminum pistons
Show more
SPECS • Stroke: 73" • Width Overall*: 97" • Rise Height*: 79-1/8" • Air Required: 200 psi • Reach (Arm Max)*: 42" • Lift Capacity*: 10,000 lbs. • Drive-Thru Clearance: 87" • Reach (Arm Min)*: 19-5/8" • Rubber Pad Adapter (Max)*: 6" • Rubber Pad Adapter (Min)*: 3-7/8" • Speed of Rise: Approx. 45 seconds • Capacity (Per Arm/Pad): 2500 lbs. / 2250 lbs. • Ceiling Height Required: 84" + height of vehicle *AV1020MP9 SPECS • Rise Height: 75-3/4" • Lift Capacity: 9,000 lbs. • Width Overall: 31-1/2" / 79-3/4" • Rubber Pad Adapter (Min): 2-3/4" • Rubber Pad Adapter (Max): 5-3/4" • Reach (Arm Max): W 79-1/2" x L 80" • Reach (Arm Min): W 31-1/2" x L 26-1/2
•Download the pdf spec sheet HERE • Download the warranty policy pdf HERE
• Shipping Weight 2420 lbs. • Residential deliveries not possible • Ships LTL truck freight to business w/ forklift • Can be picked up at local truck dock terminal
