Model: EV1220/BMC

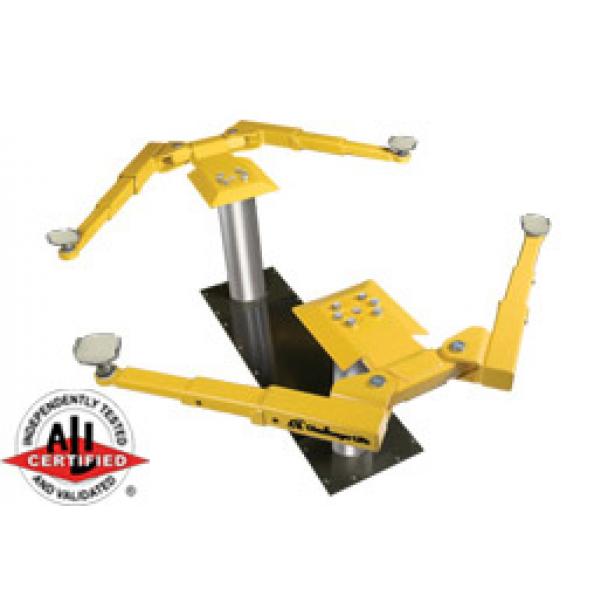

The Challenger EV1220 Inground Lift is now for sale! This lift features a larger chrome diameter piston for greater stability, a mechanical lock that engages every 3" to provide safety, and combination stack screw pads. Equipped with standard, medium, and high extension stack adapters, this lift can accomodate a wide variety of havey-duty vehicle lift points. Optional bench mounted controls are available as well. Order yours today!
KEY BENEFITS • 50% more bearing contact • Mechanical lock engages every 3" • Stainless steel air lock release cylinder • Larger 8-1/2" diameter chrome pistons • Standard combination stack screw pads • Fully contained & sealed polymer cassette tube • Enhanced raised wiper at top & bottom of bearing • Optional bench mounted controls can be added with lift
Show more
• Stroke: 68" • Motor: 2HP • Width Overall: 99" • Rise Height: 81 1/4" • Reach (Arm Min): 32" • Air Required: 75-125 psi • Lift Capacity: 12,000 lbs. • Drive-Thru Clearance: 87" • Reach (Arm Max): 49-1/4" • Speed of Rise: 60 seconds • Capacity (Per Arm): 3000 lbs. • Guide Plunger Diameter: 8 1/2 • Adj. Adapter Height: 5 - 7 1/4" • Voltage (Single Phase Std.)3: 208v-230v • Ceiling Height Required: 82"+ height of vehicle • Adj. Adapter Height (with High Ext): 11" - 13 1/4" • Adj. Adapter Height (with Medium Ext): 8" - 10 1/4"
•Download the pdf spec sheet HERE • Download the warranty policy pdf HERE
• Shipping Weight: 3100 lbs. • Residential deliveries not possible • Ships LTL truck freight to business w/ forklift • Can be picked up at local truck dock terminal
