Model: TSK8000/MM/DG

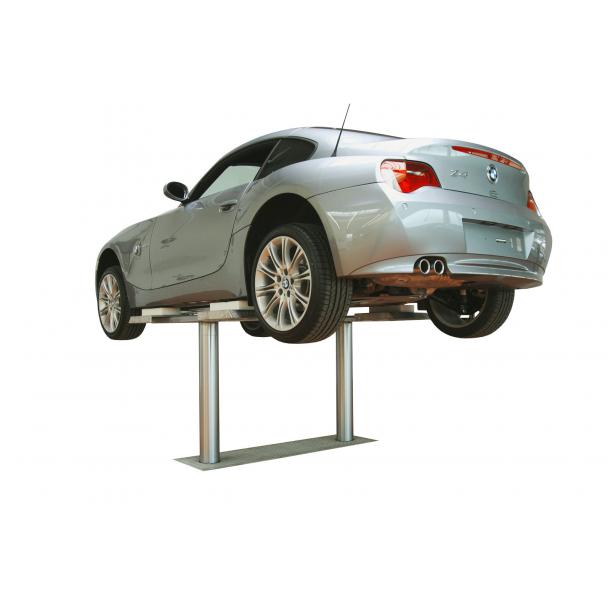

The Nussbaum 8K Inground Lift provides a level of flexibility not found in other inground lifts. This full self contained 2-piston hydraulic inground lift includes many features such as arm restraints for added safety, a power unit that includes an internal silent oil submerged motor, and more! Three different models are available for those wanting a wide adjustable range or ultimate flexability. Order yours today!
KEY BENEFITS • 2-piston hydraulic lifting • Full self contained inground lift • Arms supplied with arm restraints for added safety • Power unit includes internal silent oil-submerged motor • Hard-chromed cylinders/plungers enable extreme long-life • East access canister cover for simple lift inspection/repairs • Guiding plungers connected to guarantee synchronized movement • Fire galvanized canister both in and out to prevent corrosion/leaking • Hard tubing instead of rubber hose ensures long-life/low maintenance
STANDARD • Perfect for passenger cars, vans, and light trucks • Powder coated 2-times telescopic lifting arms with adjustable adapters
MINI MAX • Wide adjustable range of 3" - 7-1/4" • Multilevel quick adjustment using simple foot lever • Suitable for lifting vehicles with low clearance/deep-drawn side skirt
DG (DOUBLE JOINTED) • Reaches 100% of pick-up points within arms reach • Easy lifting of passenger cars through 90° of lifting arms positioning • Unique design provides the ultimate flexibility in reaching vehicle pick-up points
Show more
• Motor: 3HP • Lifting height: 81-1/2" • Piston diameter: 5-1/2" • Lifting capacity: 8,000 lbs. • Approx. lifting time: 35 sec • Power supply: 230V / 60Hz / 1ph • Distance between pistons: 86-5/8" • Lowest pick-up point: 3-1/2" - 4-3/4" (standard) 4-1/2" - 7-1/2" (dg & mm) • Arm extension: 23-1/2" - 38-7/8" (standard & mm) 0" - 70-3/8" (dg)
• Download the spec pdf HERE
• Residential deliveries not possible • Local dock pickup saves residential fees • Ships to commercial location w/ forklift
