[DISCONTINUED] Motor Coach Singlewheel Transport System

Model: RVSWS


Shipping upgrades offered in cart page

Description

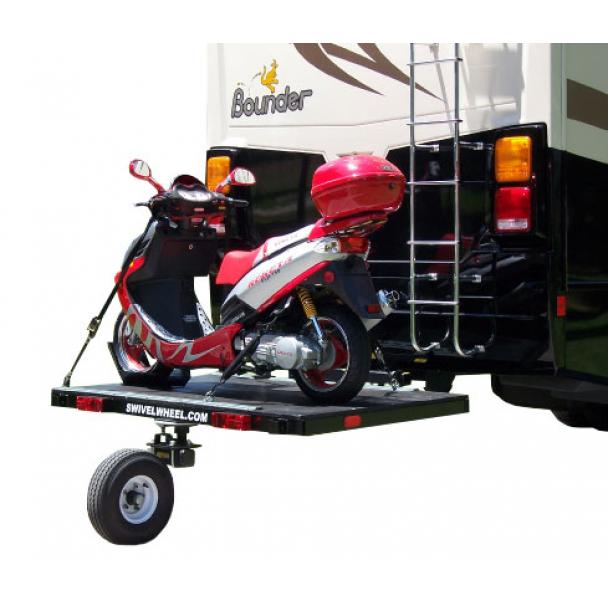

The Swivelwheel Transport System is the ultimate transport system for your motorcycle, ATV, go-cart, golf cart, and more! These systems do not include the adverse effects of a bumper pull trailer which is especially important when attached to a fifth wheel travel trailer. It features an adjustable front deck height, front removable jack stands with wheels for easy movement, and a black semi-gloss powder coat finish. A variety of selections is availabe as well as a tandem tow for the dual wheel system. Customers will be required to provide towing vehicle information before ordering. Get yours today!



KEY BENEFITS
• Adjustable front deck height
• Rectangular deck parimeter style
• Black semi-gloss powder coat finish
• Deck is 3/4" treated/painted plywood
• Tandem tow is only available for the dual wheel system
• Wheel assembly is a 5.70-8, "D" rated, 6-Pl highway speed trailer tire
• Incorporate one single swivel wheel assembly with torsion suspension
• Tandem tow allows the user to tow a car up to 6000 lbs. behind the platform
• Comes standard with front removable jack stands with wheels for easy movement

REQUIRED INFORMATION
• Orders will not be processed without towing vehicle information

NOTE
• The Swivelwheel product line was not developed for bumper pull travel trailers
• The Swivelwheel-58, and Swivelwheel-58DW systems are not designed for fifth wheel trailers less than 30’ in length and with a dry weight under 10,000 pounds






Show more

Specs

Swivelwheel-46
• Weight limit: 600 lbs.
• Deck dims: 6' W x 4' L
• Deck height: level @ 25-3/4"
• Frame materials: welded tubular steel
• Decking material: 3/4" treated/painted plywood
• Suspension: single torsion w/ friction plate & pad
• Tow vehicle mounting: single receiver hitch mount
• Tie-down locations: 2" x 2" stake receivers (2 front & rear)
• DOT lighting: standard trailer lighting w/4-wire flat plug & license plate holder

Swivelwheel-58
• Weight limit: 1000 lbs.
• Deck dims: 8' W x 5' L
• Deck height: level @ 25-3/4"
• Frame materials: welded tubular steel
• Decking material: 3/4" treated/painted plywood
• Suspension: single torsion w/ friction plate & pad
• Tow vehicle mounting: single & dual receiver hitch mount
• Tie-down locations: 2" x 2" stake receivers (3 front & rear)
• DOT lighting: standard trailer lighting w/4-wire flat plug & license plate holder

Swivelwheel-58DW
• Weight limit: 1100 lbs.
• Deck dims: 6' W x 4' L
• Deck height: level @ 25-3/4"
• Frame materials: welded tubular steel
• Decking material: 3/4" treated/painted plywood
• Suspension: two torsion w/ friction plate & pad
• Tie-down locations: 2" x 2" stake receivers (2 front & rear)
• Tow vehicle mounting: dual point hook-up with dual receiver insert
• DOT lighting: standard trailer lighting w/4-wire flat plug & license plate holder
Swivelwheel-Eco
• Weight limit: 500 lbs.
• Deck dims: 48" W x 60" L
• Deck height: level @ 23"
• Frame materials: welded rectangular steel
• Decking material: 1/2" treated/painted plywood with steel frame
• Suspension: single torsion suspension
• Tie-down locations: 4 each 1-5/8" x 1-5/8" stake bed receivers (2 front & rear)
• Tow vehicle mounting: single receiver hitch mount
• DOT lighting: standard trailer lighting w/4-wire flat plug & license plate holder



Downloads

• Download the tandem tow instruction pdf HERE

Shipping

• Local pickup in Katy, TX
• Residential deliveries not possible
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Free shipping applies to $300 maximum. If shipping exceeds this amount a surcharge may be needed
