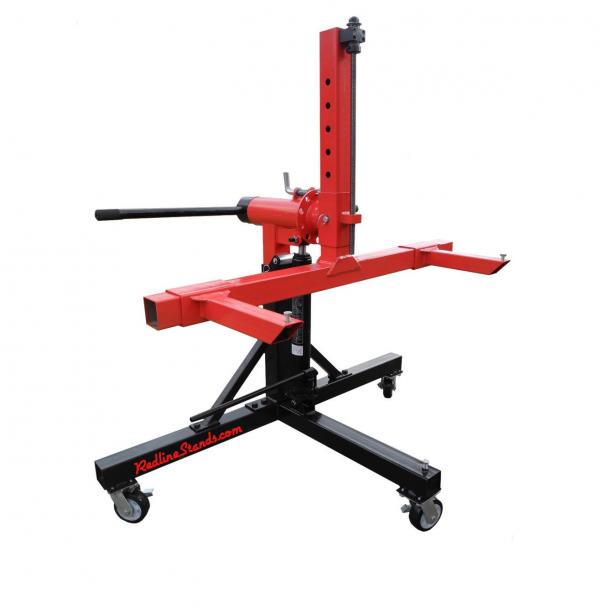

Redline Heavy Duty Automotive Auto ROT3K Rotisserie

Model: ROT3K

(1 review)

Optional Accessories


Door Braces


Redline Rotisserie Adapter Kit


Off Road Caster Kit


Body Dolly Adapter Kit


Unibody Brackets


Redline Front Mopar Mounting Brackets


Redline Rear Leaf Spring E-Body Brackets


Redline Rear Mopar Leaf Spring B-Body Brackets


Upgrade to Air Assisted Cylinders


Redline ATDLY Body Dolly Cart


AutoTwirler Bare Steel Truck Cab Adapter Kit
Brand

Shipping upgrades offered in cart page

$1,949.50

Description

The Redline ROT3K Rotisserie is similar to our RTS3000, except it has no rotating gear drive and is built with bigger tubing. It's a commercial grade rotisserie well suited to hot rod shops and the hard core enthusiast. It features 2 hydraulic jacks for raising each end of the vehicle, a built into balancing system, and 5" casters. Order Redline's most heavy duty rotisserie today!

KEY BENEFITS
• All steel construction
• 1 year parts warranty
• Black and red powder coat finish
• Rugged built-in balancing system
• Lots of adjustability fits nearly any car
• Both ends of the rotisserie are included
• Spring loaded locking pin locks car at angle





UPGRADE NOTES
• When you upgrade to the off road kit, your rotisserie will include 8 pneumatic casters and no hard wheeled casters
• When you upgrade to the air cylinder kit we will swap the original cylinders out for the new ones before it ships

INCLUDED WITH OPTIONAL ADAPTER KIT
• Universal valence brackets
• Universal uni-body brackets
• Universal leaf spring brackets







Show more

Specs

• Base is 63" wide
• T-carriage size: 3-1/8"
• Carriage is 55.75" wide
• Max carriage height 50"
• Min carriage height 14"
• Max overall length 254"
• Frame is 1/8" thick steel
• 3,000 pound lifting capacity
• Min mounting arm width 14"
• Max mounting arm width 49"
• Mounting arms are 2" square
• Cylinder stroke length: 19-1/4"
• Main rotator shaft is 4.5" diameter
• Large 5" diameter casters with locks
• Frame has 6.75" of ground clearance
• Max mounting hole to hole distance 193"
• Main frame constructed of 3.5" x 3.5" tubing
• 7 different mounting height holes spaced every 2"

Downloads

• Download the manual pdf HERE



Shipping

• Residential deliveries cost extra
• Ships at 641 lbs 80" x 40" x 16" class 65
• FREE SHIPPING to business with forklift*
• Local dock pickup saves residential delivery fees
• $150 discount for local pickup in Pensacola, FL
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.0 / 5 (1 review)
Based on 1 review Write review
  • Robert Apr 4, 2023

    What A Beast!!

    Apr 4, 2023
    This thing is a beast! The welds are solid and the powder coating is good, not great, but okay. Took a while to assemble cause the instructions were so so. The pictures on the website were more help than the instructions. Make sure you get it balanced correctly, cuz if you don’t, the car will flip over fast enough that it aint no fun. Once I got used to operating it I can’t imagine restoring a car without it.

Ask & Answer

  • Stringhammer Feb 20, 2024
    Q. Can you get all all terrain wheels with the ROT3K?
    A. Sure. Just click the checkbox to add a Off Road Caster Kit to your rotisserie. Thanks for shopping with us!
  • rp Nov 15, 2023
    Q. Why doesn't the rot3k have the gear drive option ?
    it's heavier capacity should offer the gear drive ?
    A. Our RTS3000 and ROT3000-LD both are gear drive rotisseries. The ROT3K is for people that want a heavy duty rotisserie, but prefer a manual operation. Thanks for shopping with us!
  • Steve Oct 26, 2023
    Q. I purchased a number of your competitors units and the one thing I realized was that there was a lot of play in the fit between the various tubes which was compensated for by angling the welded mount points. Because I was creating custom components that replaced theirs it became difficult to keep the my mount points level. How is your unit different and how to you the dimensional stacking from tube to tube?
    A. Well, the ROT3K is not so sloppy that we angle anything backward to allow for "droopage via play." All of our components are welded at 90 degrees, as they should be. With that said, I'm not sure what exactly you mean by "how to you the dimensional stacking from tube to tube?" Would you please call our sales staff at 901-351-4764 ext 1 and we'll talk. Thanks Steve.
