K&L 1700lb K1700 Powertrain Battery Lift Tilt Table

Model: 62-27500

Optional Accessories

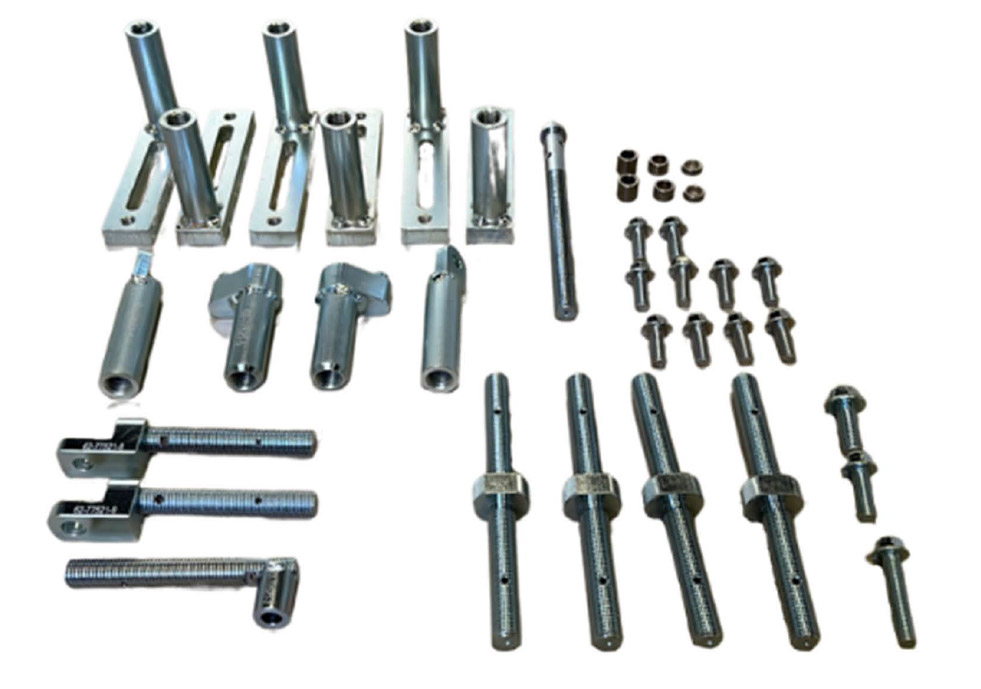

Optional K1700 Adapter Kit

Redline RE-AR 3/8" Air Hose Reel

Shipping upgrades offered in cart page



K&L is proud to introduce the K1700 Powertrain/Battery Lift. The lift's unique features include a sliding split tabletop with jig style mounting holes for various types of mounting adapters. This design allows for separation of engine/transmission assemblies. The jig style mounting and tilting alignment is also used for removal of sub frames, rear differentials, suspension systems, fuel tanks, and hybrid/EV battery systems. The lifting table is powered by a 110V hydraulic pump that rest nicely inside the frame.


• Tilt table
• Sliding split table
• 1700lb lift capacity
• Safety lock system
• Electric over hydraulic
• Fast/smooth operation
• Jig fixture style tabletop
• Remote control operated
• Adjustable locking casters
• Heavy duty scissor lift style
• Dual 110V power outlets on table
• Can be used for a multitude of applications
• Powertrain adjustable mounting adapters available (Sold Separately)


Show more


• Table width: 31"
• Minimum height: 21"
• Maximum height: 70"
• Slide table length: 50-58"
• Weight capacity: 2000 lbs.



• Free shipping applies to $600 maximum

• Ships 865 lbs. at 88" L x 34" W x 22" H Class 70/ 3 pieces
