Redline RE-PTL Powertrain Lift
Move your mouse over image or click to enlarge
Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift Redline RE-PTL Powertrain Lift
Shipping Free

Redline RE-PTL Powertrain Lift

Model: RE-PTL

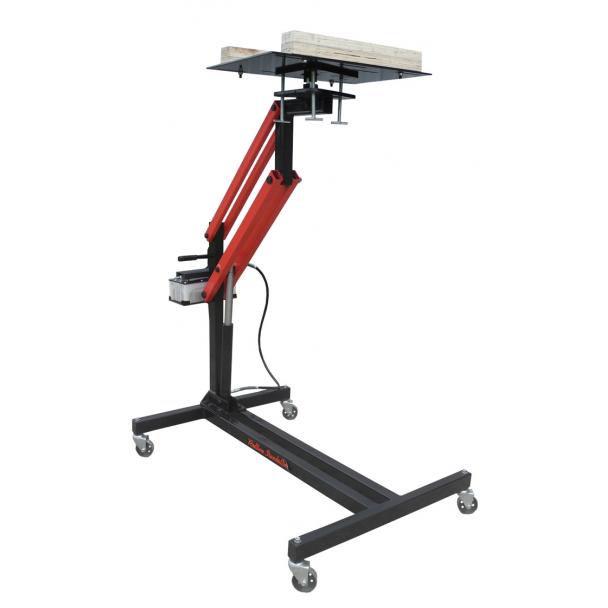

Redline Engineering's RE-PTL Powertrain Lift features an air/hydraulic pump, a large and sturdy lifting plate with 2 wooden blocks, 4 caster wheels for easy mobility, and 3 adjustment knobs to adjust the tilting plate. If those tiny transmission jacks aren't enough for your work load, consider this beast of a lift. Order yours today!

• Powder coated finish
• 3 adjustable plate screws
• 4 adjustment settings on plate
• 4 caster wheels for easy mobility
• 2 wooden blocks for lift plate included
• Air/hydraulic components in pump box


• Handle is 14" long
• 1250 lb. lifting capacity
• Plate screws 7-1/4" long
• 62" hose for air/hydraulic box
• Caster wheels diameter 3-1/2"
• Min plate height with wood 32-5/8"
• Max plate height with wood 77-1/2"
• Wood block dims 3" W x 3" H x 24" L
• Overall dims 38" W x 46" H x 60-3/4" L
• Steel frames 2" x 2-3/4" with 1/8" thickness
• Air/Hydraulic box dims 6-3/4" W x 4-1/2" H x 12-1/4" L
• Lift plate dims 19-1/2" W x 29-1/2" L with 1/4" thickness


• Download the parts pdf HERE
• Download the assembly pdf HERE


• Residential deliveries cost extra
• Free shipping to commercial location w/ forklift
• Ships 331 lbs. at 41" W x 14" H x 58" L
• Units available in Pensacola, FL with $200.00 discount
• Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed
