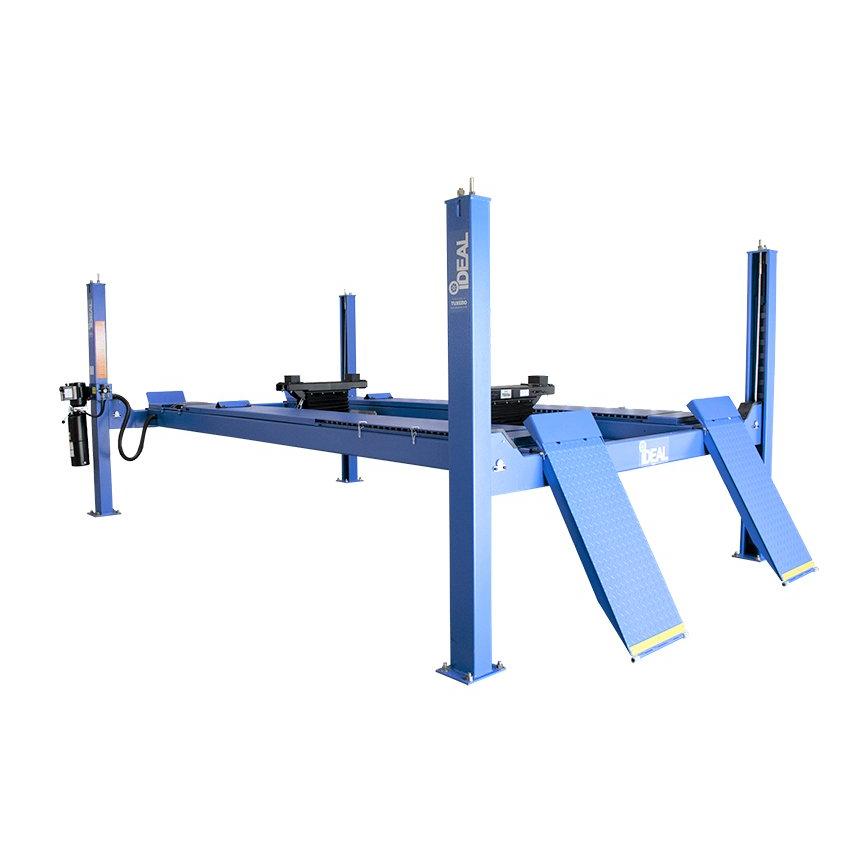

iDeal 14,000 Lb Closed Front Alignment Lift

Model: FP14KAC-X


Shipping upgrades offered in cart page



Kernel's iDeal FP14KAC-X is a quality alignment lift without the high cost of the open front models. With 14,000 lbs of capacity, a single point pneumatic lock release, and built-in slip plates this cable driven alignment lift will get your operation off the ground with as little expense as possible. Call us today for a shipping quote!

• Steel ramps included
• 1 year warranty on all components
• Single point lock release mechanism
• Ideal auto light & heavy duty trucks
• Built-in lock stops for easy leveling
• Cable drive with C channel construction
• Two turntable positions for all vehicles
• Pulley and shaft design with grease fittings
• Powder coated finish looks great and resists rust
• Side or front power unit assembly mounting options
• Rear slip plates on bearings leave tires without tension
• Runways that slide in/out to adjust to different vehicle widths

• Rollback spacers for heavy duty turntables
• Internal airline kit with filter, lubricator, and regulator
• Heavy duty carbon steel turntables rated at 4.5k capacity each

• Works well with high mount RAJ-7K-H

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more


• Runway width: 20"
• Weighs: 3810 lbs
• 220V - 20 AMP - 1PH
• Overall height: 92.5"
• Max wheel base: 182.5"
• Drive thru clearance: 100"
• Length between posts: 196"
• Minimum bay size: 16' x 25'
• Width between posts: 116.25"
• Lift height: 9-7/8" to 79.5"
• Overall runway length: 252.5"
• 14,000 pound lifting capacity
• Width between runways: 43" or 46"
• Overall width with power unit: 142"


• Browse the full manufacturer catalog HERE
• Download the reference chart HERE


• Residential deliveries cost extra
• Ships 3,810 lbs. at 206" x 40-1/2" x 21-3/4"
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal
• Various locations across U.S. may have units in stock $50.00 pick up fee will apply
• Call for availability at locations - pickup fees apply

- Reidsville, NC 27320
- Alvarado,  TX  76009
