EMAX Silent Industrial 10HP 80 Gallon Vertical Air Compressor

Model: ES10V080V1

Please Choose:

Brand

Shipping upgrades offered in cart page

$5,639.50

Description

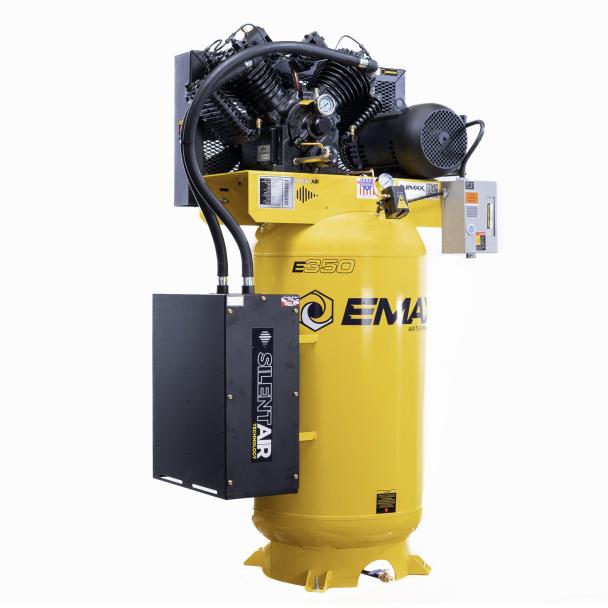

This EMAX Industrial 10 HP 2 Stage Inline, 1 Phase vertical 80 gal. Piston Air Compressor delivers 38CFM @ 100 PSI, top PSI of 175. Our unit features industrial Grade electric motors, Magnetic starter, manual ball valve tank drain, powder coated ASME tank 200PSI rating, all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed with enrollment into the best limited extended Lifetime Pump warranty plan in the business.  Order yours today!

KEY BENEFITS
• ETL certified
• Magnetic starter
• Spin-on oil filter
• Oil pressure gauge
• Patented silent air system
• 2 Stage air compressor pump
• ASME certified air tank – approved for ALL 50 states
• Industrial-duty, 1750 RPM (not 3450 RPM) name brand motor  - UL & CSA
• Patented pressure lubricated 2-stage cast iron pump with dual control design





Show more

Specs

• HP: 10
• Phase: 1
• CFM: 38
• Tank Size: 80
• Radiator: N
• Silent Air: Y
• Smart Air: N
• Motor Type: ODP
• Duty Cycle: 0.6
• Outlet Size: 3/4"
• Belt Count: 2
• Pump Stage: 2
• Pump Riser: N
• Belt Tensioner: N
• Mag Starter: Y
• Pump RPM: 800
• Motor RPM: 1740
• Max PSI: 175
• Oil Capacity: 2
• Oil U/M: Quarts
• Start Type: FIXED
• Continuous Run: N
• CFM At Max PSI: 34
• Drive Type: Electric
• Tank Drain: Manual
• Pump Type: Pressure
• Voltage +/- 10%: 230
• Compressor Type: Piston
• Pump Model: APP4V1043TP
• Peak Starting Amps: 270
• Locked Rotor Amps: 270
• Recommended Breaker: 60
• Overall dims: 39" x 25" x 75"
• FLA + 1.15 Service Factor: 52.9
• Estimated Pump Life (Hours): 60000

Downloads

• View the EMAX warranty programs HERE

Shipping

• Ships 898 lbs. at 48" x 46" x 87"
• Residential deliveries cost extra
• Free shipping to a business with forklift on site
• Local dock pickup saves residential delivery fees
• Free shipping applies to $600 maximum.  If shipping exceeds this amount a surcharge may be needed
