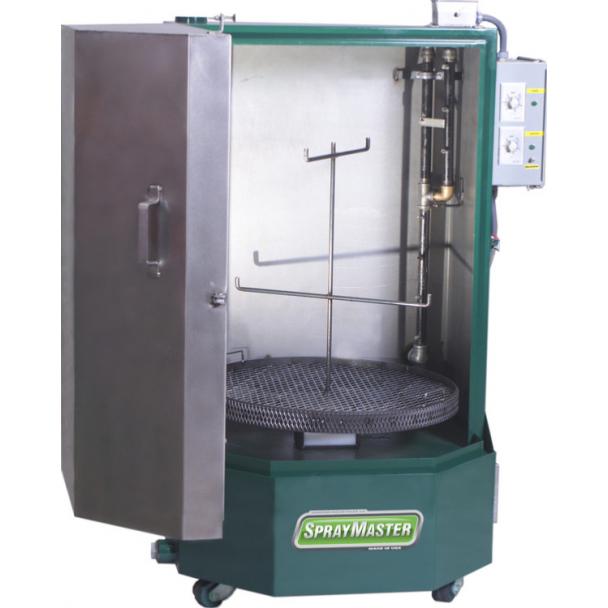

[DISCONTINUED] Fountain SprayMaster Front Spray Wash Cabinet

Model: SM9600-231/SM9600SS-231

Shipping upgrades offered in cart page


If size matters, than the Fountain SprayMaster 85 Gallon Front Loading Spray Wash Cabinet will not disappoint! This massive American made spray wash cabinet is not only mobile due to its 4 casters, but can hold a 500 lb. capacity. It includes a large 30" turntable, a removable tree rack, stainless steel nozzles for lower maintenance costs, and a 12" disc skimmer with a 45 minute timer. Some of its features include a large 70 gallon capacity, an adjustable cycle timer from 0-60 minutes, a friction turntable that will not break if a part becomes lodged, and a liquid level sensor that automatically turns off the heaters before they burn out. A stainless steel upgrade is also available for the entire cabinet. Order yours today!

• Made in the USA
• Portable with 4 casters
• Large 70 gallon fluid capacity
• Large 500 lb. weight capacity
• Removable tree rack standard
• 9.0 KW heating capacity (2 heaters)
• Stainless steel upgrade is also available
• Adjustable cycle timer from 0-60 minutes
• Stainless steel nozzles for lower maintenance cost
• High volume 3.0 HP pump with stainless steel impeller
• Center spray bar folds down for cleaning of smaller parts
• Friction turntable drive will not break if a part becomes lodged
• Adjustable heat timer allows you to keep solution hot overnight
• Liquid level sensor automatically turns off heaters before they burn out
• Stainless steel gasket-free front door provides maintenance free operation


Show more


• Large 30" turntable
• 40" interior working height
• Overall dims: 50" W x 42" L x 68" H
• 12" disc skimmer with 45 minute timer
• Voltage: 220V AC / 60Hz / 1PH / 60AMP


• Residential deliveries cost extra
• Shipping weight: 1100 lbs. plus pallet
• Local dock pickup saves delivery fees
• Ships to commercial location w/ forklift
• Free shipping applies to $300 maximum. If shipping exceeds this amount a surcharge may be needed
