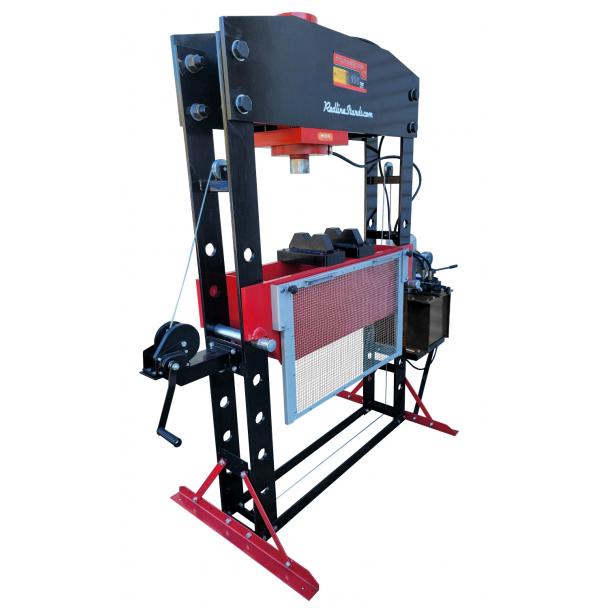

Redline 100 Ton Electric Economy Hydraulic Shop Press

Model: ECO100T-E

(1 review)

Optional Accessories

Economy Pin Press Kit

U-Weld-It Metal Bending Finger Brake

Shipping upgrades offered in cart page



The Redline 100 Ton Electric Economy Hydraulic Shop Press is the most powerful economy shop press we offer! This heavy duty press offers big features such as a crank-style carriage winch cable system to easily adjust the carriage height, an electric powered hydraulic cylinder, two large heavy duty press plates, and a wide adjustable safety grid guard to protect against flying parts. Plus, the cylinder can be shifted to the left or right for those precise press jobs! Order your heavy duty economy press for your shop or garage today!

• 100 ton capacity
• Powder coated finish
• Carriage winch for easy carriage height adjustment
• Ram cylinder capable of shifting both left and right
• Electric powered hydraulic cylinder for heavy duty pressing
• Safety grate can be clamped into place in any location
• Machine does not come with a power cord.  Customer will need to either hard-wire power to the machine or supply a power cord
• Pump does not come pre-filled with hydraulic fluid
• 7-8 gallons of ISO#32 or Shell#15 hydraulic fluid will be needed to operate the pump
• Long and/or thin extension cords are not recommended as amp loss could damage the motor

• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

Show more


• RAM stroke: 11"
• Leg length 35-3/8"
• Power supply: 110V
• Working range: 0" - 41"
• Inside frame width: 41-3/8"
• Cylinder ram diameter 3-1/4"
• Cylinder bore diameter: 5.90"
• Winch cable diameter: 0.264"
• Press head to floor: 59-3/4"
• Carriage pin diameter: 1-7/8"
• Safety grate: 37-7/8" x 23-5/8"
• Full cylinder extension in 35 seconds
• Full cylinder retraction in 25 seconds
• Pressure gauge accurate to +/- 2.5%
• Frame constructed of 4-3/4" x 5/8" steel
• Overall dims 79-1/8" L x 35-3/8" W x 82" H
• Interior carriage workspace length: 40-1/2"
• Interior carriage shelf-to-shelf depth: 9-1/2"
• RAM shift distance: 18" (9” left of center & 9” right of center)
• Pressing carriage overall dims 50-1/2" L x 11-1/8" W x 14-1/2" H
• Two heavy duty press plates 11-11/16" L x 5-13/16" W x 5" (2" thickness)


• Download the manual pdf HERE


• Ships 1749 lbs. at 89" X 54" x 25" (1 piece)
• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Free shipping applies to $400 maximum. If shipping exceeds this amount a surcharge may be needed



4.0 / 5 (1 review)
Based on 1 review Write review
  • Travis Apr 10, 2023

    Works 4 me

    Apr 10, 2023
    This thing is huge, but in a good way. I was going to buy their other electric 100 Ton press, but then I noticed that this one has a throat width about 10” wider. That extra space works well for me as some of my components are BIG. Only four stars because the winch sticks out on the side. I wish it was tucked inside the frame like the other model they sell.

Ask & Answer

  • Randal Mar 09, 2023
    Q. what is the spec's on the motor that runs the press? Horse power? phases? startup draw amps?
    A. Please see the additional photos. There is a photo of the motor spec plate in the additional photos. Thanks for shopping with us!
