Model: B-1000V_SC

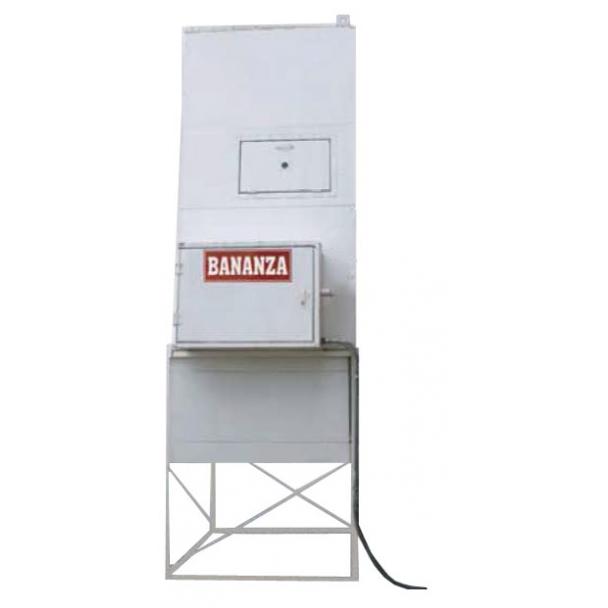

Introducing the Bananza Direct Fired Heating System! This heating system features an exhaust VFD, a single point connection, a 53" vertical mounting stand with 1" filters, vertical/upper side discharge, & a white powder coated, long lasting heavy duty construction. If you're looking for a viable heating system for your IDEAL Paint Booth, this is it. Order yours today!
KEY BENEFITS • ETL listed • Exhaust VFD included • Single point connection • White powder coat finish • Pre-wired & fully assembled units • Long lasting heavy duty steel construction • 53" vertical mounting stand with 1" filters • Vertical/Upper side discharge, outdoor configuration • Helps reduce energy costs due to 100% thermal efficiency • ANSI Z83.25/CAS 3.19 listed direct gas-fi red process air heaters • SPRAY-CURE technology for reduced cycle times & increase productivity • BAMS deluxe digital remote with burner lockout, clogged filter & remote reset
Show more
• Fuel: NG • CFM: 12,000 • BTUH: 1.296M • Gas train: 1.25" • Gas pressure: 14 W.C. • Total static pressure: 2.5 TSP • Exhaust VFD: 5 HP, 230V, 3 phase • External static pressure: 1.0 ESP • Internal static pressure: 1.5 ISP • Intake motor: 10 HP, 230V, 3 phase
• Download the spec pdf HERE
• Residential deliveries costs extra • Can be picked up at local truck dock terminal • Ships LTL truck freight to business w/ forklift • Ships via two packages: -1,070 lbs. at 102" L x 60" W x 44" H -140 lbs. at 46" L x 34" W x 57" H
