IDEAL Side Down Draft Paint Booth


Optional Accessories

2x 25” diam. 8’ long ducts w/ ARV

Shipping upgrades offered in cart page

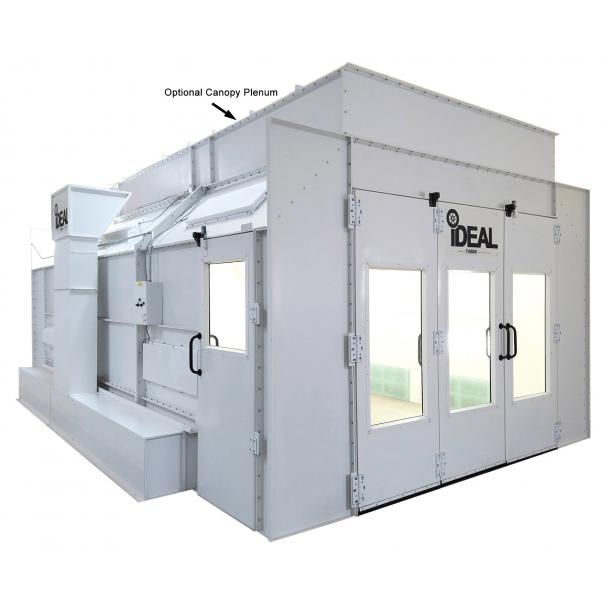

Redline is proud to offer the new Kernel IDEAL Side Down Draft Paint Booth! This massive auto refinish spray booth is more than capable of handling any paint job you have. It features an easy to use control panel, a manometer, & tri-fold doors as well as a personnel door. It also features both intake and exhaust filters with two Dayton fans for airflow and a sleek powder coated finish for both the interior and exterior of the booth. Order yours today!

• Manometer
• Three phase
• Control Panel
• T8 Florescent bulbs
• (2) 24” Dayton fans
• (2) Door limit switch
• Intake/Exhaust filters
• (10) Standard light fixtures
• Powder coated (inside/outside)
• (2) 8’ Chimney stack assemblies
• Panels are 18 gauge powder coated
• Tri-fold doors (w/ viewing window)
• Personnel door (w/ viewing window)
• (4) Class I, Div II light fixtures
• Can upgrade to single phase
• Optional canopy plenum only necessary when using an air heating system

• Optional length extension, drive-thru door kits, mixing rooms, and personnel doors are available upon request
• Optional duct kits include ARV (auto roof ventilator) “flappers”

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more


• CFM: 14000 at .5" static pressure
• Interior dims: 26' L x 14' W x 9'3" H
• Exterior dims: 26'4" L x 17'8" W x 11'3" H
• Fans / Motor: Dayton (2x) 24" / 230V 3PH, 2HP
• Lighting: 10ea. T-8 light fixtures, four bulb


• Browse the full manufacturer catalog HERE
• Download the spec pdf HERE
• Download the manual pdf HERE
• Download the wiring pdf HERE
• Download the and technical pdf HERE
• Download the optional heater pdf HERE
• Download the diagram pdfs HERE and HERE


• Residential deliveries not possible
• Can be picked up at local truck dock terminal
• Ships LTL truck freight to business w/ forklift
• Pickup at satellite warehouses:
- Boise, ID  83709
- Elwood, IN 46036
- Temecula, CA  92590
- Norcross, GA  30071
- Brooksville, FL 34604
- Pontiac, MI  48342
- Reidsville, NC 27320
- Alvarado,  TX  76009
- Kalispell, MT 59901
- West Valley City, UT 84119




Ask & Answer

  • Romero Oct 12, 2022
    Q. Necesito número telefónico yo estoy en USA
    A. No habla Espanol sir. We speak English in the United States. Thank you sir.
  • JC Aug 03, 2021
    Q. Hi Just wondering does the door limit switches have to be wired explosion proof with seal offs I see the control panel is 3ft from any openings Thanks
    A. We asked iDeal and they said, "The limit switches do not have to be explosion proof wired, unless it's required in your city/county/state."
