Redline REPP70 Clamshell Pressure Pot Abrasive Blast Cabinet

Model: REPP70 (SBC990L)

(6 reviews)

Optional Accessories

REPP70 Accessory Package Deal

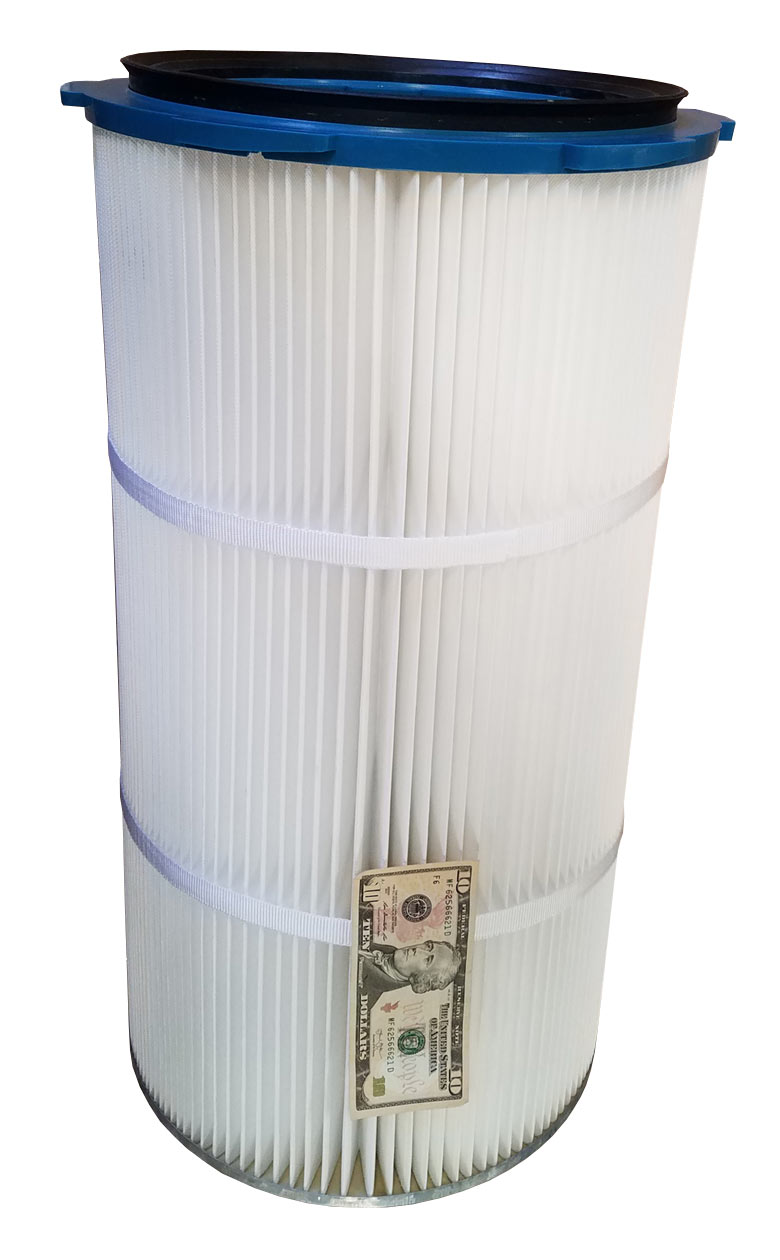

Extra Repl PP70 Vac Filter

Extra Nozzles (4)

Protective Respirator

Replacement REPP70 LED Bulb

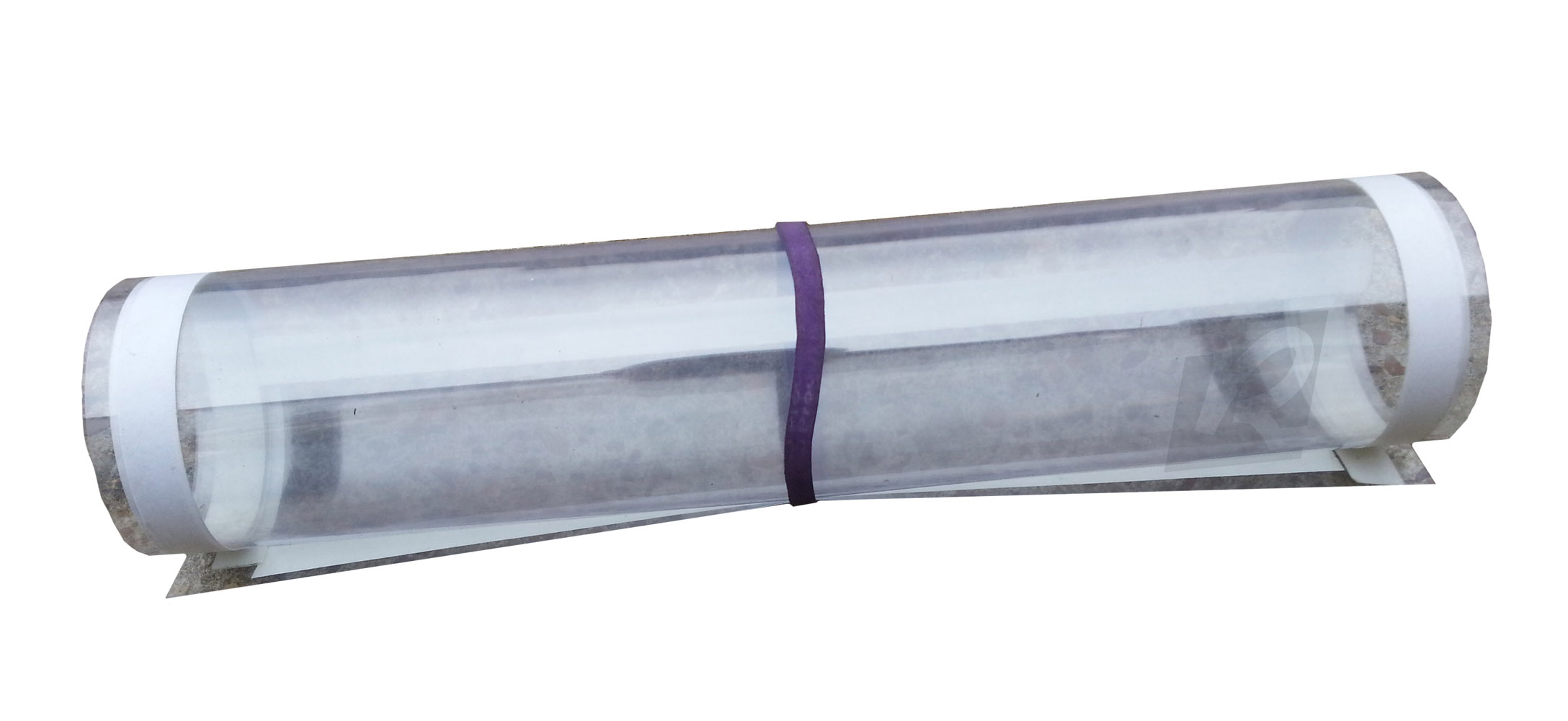

Extra Repl View Screens (5)

Extra Repl Lamp Screens (5)

Redline RE-AR 3/8" Air Hose Reel

Extra Pair of Gloves

6532/12RC 32” Long Reach Gloves

SMC 1/4" Hi-Flo Water Separator

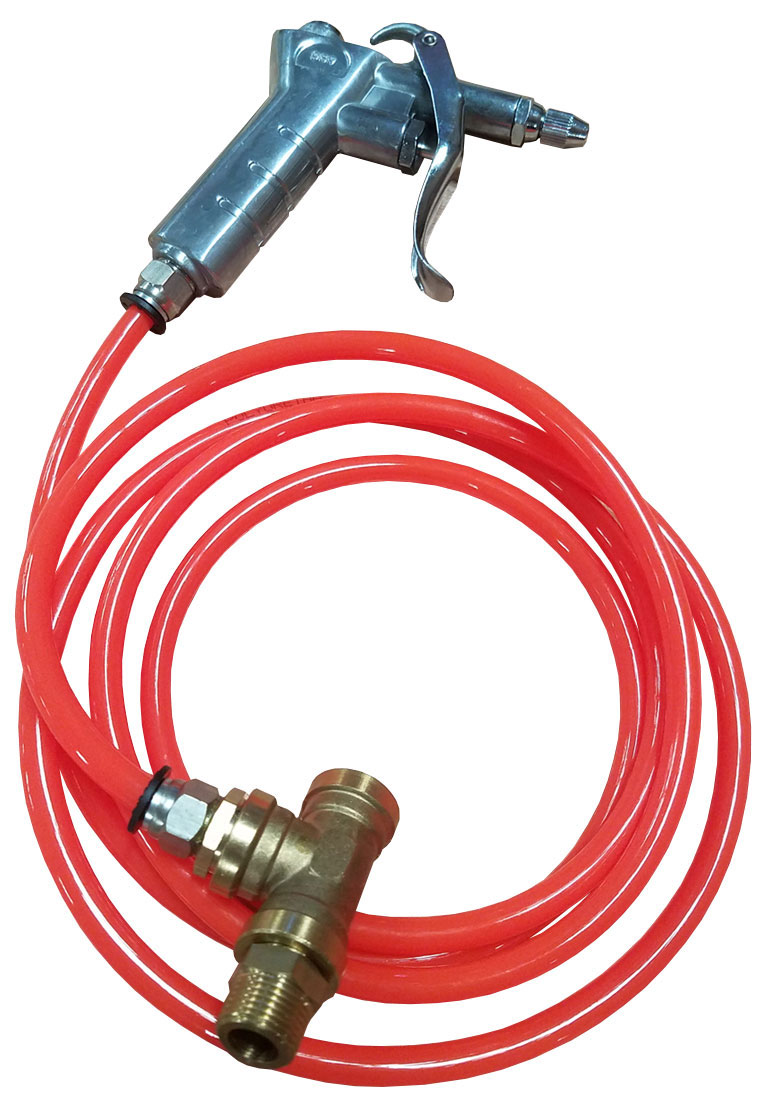

Air Blow Gun Kit

Three 50 lb. bags of glass media + 1 bag free

50 lb. Bag of Glass Media

50 lb. 40-70 Grit Premium 10X Media

Blast Media Strainer Filter

Shipping upgrades offered in cart page



The Redline Engineering Clamshell Pressure Pot Abrasive Blast Cabinet stands above all of our other Redline cabinets with a whopping 78" height! There's no need to worry about sizing up to the cabinet as it includes a sturdy step stool that is bolted to the unit. The extra height is required for the pressure pot located beneath the cabinet as it does not use siphon tubes. Its features include 3 LED lightbulbs, a built-in air regulator and air/bead mixing valve, a built-in water seperator, a sleek powder coat finish, and a huge clamshell door that's easily opened and closed. It includes 4 ceramic nozzles, the step stool, a shielded foot pedal, and a pair of gloves. If you're looking for big, you've found it! Order yours today!

Vacuum cabinet may arrive grey or black

• Runs on 120 V
• 3 LED lightbulbs
• Powder coat finish
• Huge clamshell door
• Built-in air regulator
• Built-in water seperator
• Comes with 4 ceramic nozzles
• Built-in air/bead mixing valve

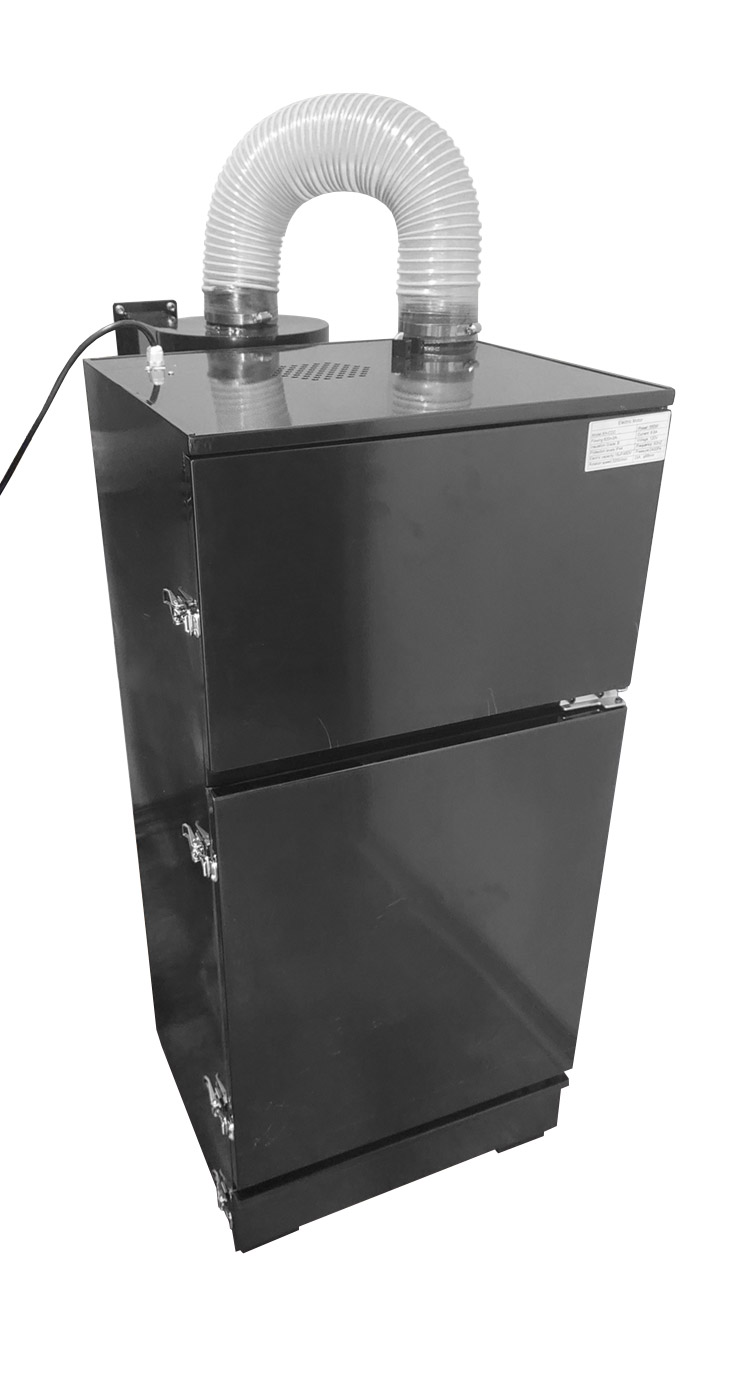

• Vacuum dust filtration system included
• Uses a pressure pot system instead of a siphon tube
• Includes step stool, shielded foot pedal, and a pair of gloves


• Beach/play sand should NOT be used
• Prevent silicosis via respirator
• Learn more about Silicosis HERE

• Glass bead
• Cannot use walnut shells
• Use of silicone carbide and aluminum oxide will substantially decrease life of all media-flowing components

• 1 year warranty on cabinet
• Items considered to be consumable not covered under warranty: nozzles, filters, hoses, etc.

• Redline recommends cleaning your sand blast vacuum filter every 3 hours of use and replacing every 30 hours of use in order to avoid premature failure of the electric vacuum motor


Show more


• 115 PSI max
• 14g steel legs
• 24" long gloves
• 16g steel panels
• 8 micron paper filter
• 400 CFM vacuum air flow
• View window: 30-1/2" x 16"
• Requires 25 CFM @ 80 PSI
• Unit height with door open: 96"
• Max sand load volume 40 pounds
• Stool dims: 43" W x 16" L x 14" H
• Door space: 39-3/4" W x 29-1/4" H
• Glass: 39" x  13-1/2" x 11/67" (.171") thick
• Max workpiece weight 400 lbs / 200 lbs per grate
• Working dims: 34" Tall X 34" Deep X 46 1/2" Wide
• Overall dims: 34-1/2" W x 46" L x 78" H (w/o stool/DC tube)
• Working heights: 33-1/4" top grate, 44-1/4" bottom grate

• Voltage: 120V
• Power: 550W
• Overall dims: 33-1/4" x 19-3/4" x 53"
• Filter dims: 13-5/8" diameter, 24-3/8" H
• SBC connection tube: 56" L 4" diameter
• Drawer dims: 16-3/8" x 17-3/8" x 2-1/2" H
• Inside dims w/o drawer: 16-1/2" x 19-1/2" x 30-1/8"


• Download the manual pdf HERE
• Download the troubleshooting doc HERE


• Residential deliveries cost extra
• Ships 2 pc. 658 lbs. at 53" x 38" x 60" class 110
• Free shipping to a business with forklift on site*
• Local dock pickup saves residential delivery fees
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $250 shipping refund
• Free shipping applies to $300 maximum.  If shipping exceeds this amount a surcharge may be needed




5.0 / 5 (6 reviews)
Based on 6 Reviews Write review
  • Scott Brown Jan 9, 2023

    Better than expected

    Jan 9, 2023
    I bought the pressure pot model last may, it’s been a very good machine. Like you said it took a bit to fine tune it but once we got it dialed, it’s held up great. We bought the unit with the mindset of lite industrial duty but the projects quickly became more demanding and we questioned weather the cabinet was going to handle 100lbs flanges going in and out all day… so far it’s holding up great.
  • Scott B. May 26, 2022

    Was not expecting this

    May 26, 2022
    I landed a production run contract, my current system was not capable of keeping up so I started looking for better solutions. There are many production level units on the markets and they are quite expensive, because I’m a smaller guy I thought it would be better to looks at “a step down” .. I bought this unit, set it up had one issue that customer service was very helpful with ( I didn’t attach the nozzle properly) then started working with it. I can’t not see how the higher price units could be anymore effective. The build quality it took notch and the hardware/components are same. This is a very well built and operating unit, I’m blasting flanges, on the old unit one flange took 18-20min, I was doing them in 7-8min last night. I’m very excited my production time has greatly increased ergo my profits. This isn’t a cheap purchase but what you get for the price is amazing. This unit and this company score a 10 from me.
  • Nick McLay Dec 3, 2020

    Great price and quality in a pressure pot design

    Dec 3, 2020
    I own a mobile blasting service and customers often ask me to handle small parts like intakes or brake calipers. I recently opened up a garage to work from and decided on a blast cabinet. I researched extensively and kept coming back to the Redline unit. Dollar cost with delivery and performance offered was just a no-brainer. Delivery went off without a hitch. Assembly is pretty involved and was challenging because the manual with my unit did not match the unit I received. However, the guys at Redline were very helpful and got me up and running. This unit is good looking and imposing. Makes a great impression. The vacuum is outstanding and keeps the view in the cabinet clear.

Ask & Answer

  • Procoat Sep 20, 2023
    Q. Why is our machine continually blowing hoses? We are blasting well within the pressures recommended and we consistently clean the filter and empty the dust pot. Redline model psbc990
    A. Are you using aluminum oxide? We find a lot of customers run this media, despite that the listing above says not to run this media. It's highly aggressive and the rubber hoses just cannot last a long time with that media. We find that they last far far longer using crushed glass or 10X media. I hope this helps.
  • Finius Apr 06, 2023

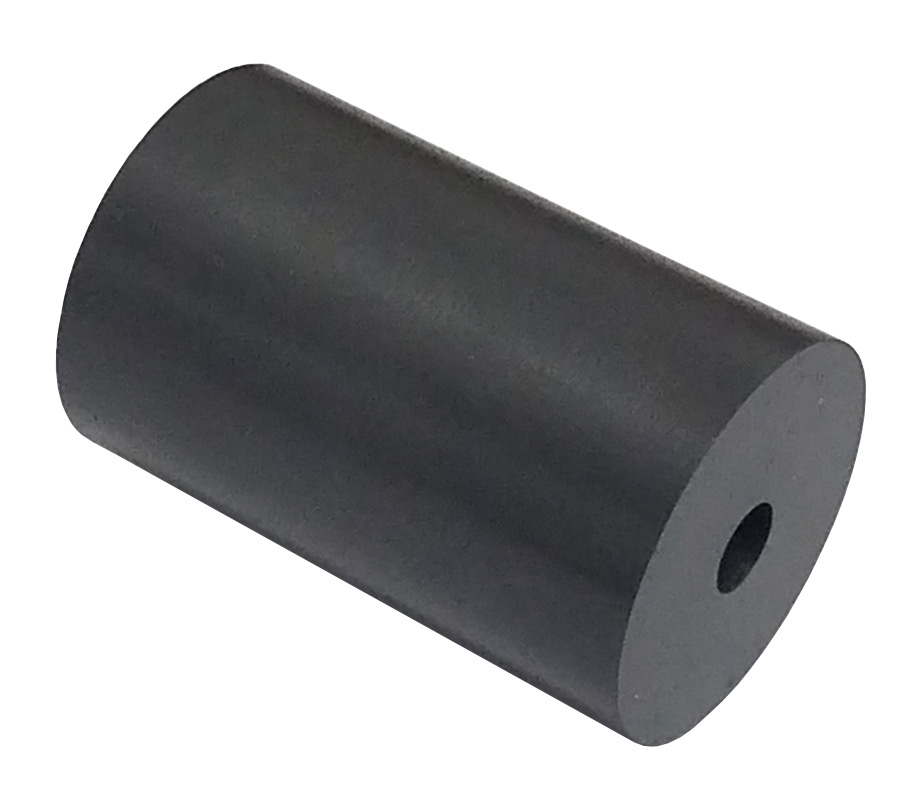

    Q. Do you offer carbide sand blast nozzles for the Redline REPP 70 Sandblaster?
    A. You mean THIS? Thanks for shopping with us!
  • Carlos Oct 19, 2022
    Q. Hello do you ship to Puerto rico? Im intereted in the cabinet thanks
    A. No sir. You'd need to hire a freight forwarder in Miami. We'd ship it to them, and they would handle the ocean freight for you. A quick Google search should yield many companies offering their services. Thanks Carlos!
  • Timmy Dec 06, 2021
    Q. Is there someone in Colorado with one of these that I can use, because I sure am broke now.
    A. Sorry Timmy but it is not our policy to broker meetings between customers to share equipment. Wish we could help, but all we can do is sell you a new machine.
