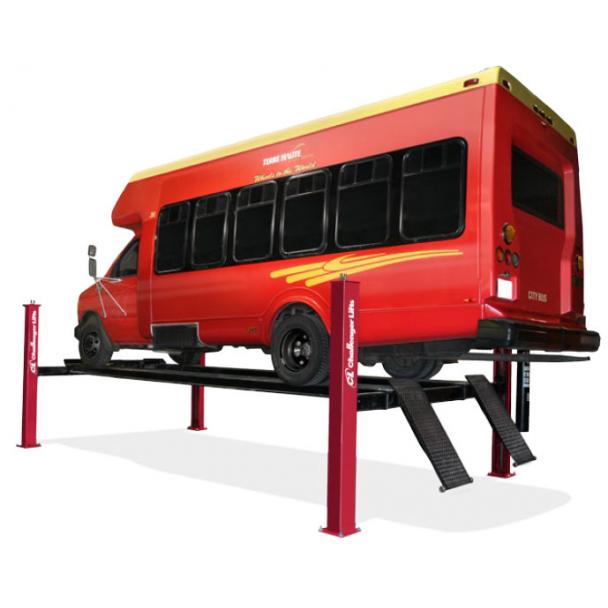

Challenger 18K 4 Post Lift

Introducing the Challenger 18K 4 Post Lift! This superior lifting system is more than capable of lifting up your light and medium duty vehicles. It utilizes a heavy duty cylinder that provides optimum lifting with minimum maintenance and an offset flared post column design provides rigidity and stability. Its features include an electric/hydraulic drive system, heavy-duty leaf chain & sealed roller bearings, non-skid diamond plate texture runways that provide tire traction, and a single point mechanical lock release system. Both extended length and alignment models are also available. Order yours today!

KEY BENEFITS

• American Made
• Superior lifting system
• 18,000 lb. lifting capacity
• Electric/hydraulic drive system
• Ideal auto light & heavy duty trucks
• Single point mechanical lock release system
• Heavy-duty leaf chain & sealed roller bearings
• Continuously engaged mechanical lock provides safety
• Non-skid diamond plate texture runways provide tire traction
• Built-in internal track accommodates rolling jacks or oil pan

44018
• Amps: 30
• Motor: 3HP
• Max wheelbase: 194"
• Rise height: 78-3/4"
• Between columns: 204"
• Width of runways: 22"
• Length overall: 21' 4"
• Inside of columns: 121"
• Width overall: 11' 6-1/8"
• Height overall: 8' 6-1/2"
• Height of runways: 7-1/4"
• Speed of rise: 60 seconds
• Width between runways: 36" / 54"
• Voltage (single phase): 208v - 230v

44018E (Extended Length)
• Amps: 30
• Motor: 3HP
• Max wheelbase: 230"
• Rise height: 78-3/4"
• Between columns: 240"
• Width of runways: 22"
• Length overall: 24' 4"
• Inside of columns: 121"
• Width overall: 11' 6-1/8"
• Height overall: 8' 6-1/2"
• Height of runways: 7-1/4"
• Speed of rise: 60 seconds
• Width between runways: 36" / 54"
• Voltage (single phase): 208v - 230v

44018AR (Alignment)
• Amps: 30
• Motor: 3HP
• Max wheelbase: 236"
• Rise height: 83-3/8"
• Between columns: 204"
• Width of runways: 22"
• Length overall: 25' 11-1/2"
• Inside of columns: 122"
• Width overall: 11' 9-1/2"
• Height overall: 8' 6-1/2"
• Height of runways: 11-7/8"
• Speed of rise: 60 seconds
• Max 2 wheel alignment: 220"
• 4 wheel align min-max: 98" - 206"
• Width between runways: 36" / 54"
• Voltage (single phase): 208v - 230v

• Cannot ship to residence
• Local pickup in Louisville, KY
• Can be picked up at local terminal
• Ships FREE to commercial w/ forklift
• Shipping weight:
-3,930 lbs. (standard)
-4,350 lbs. (extended)
-5,050 lbs. (alignment)
