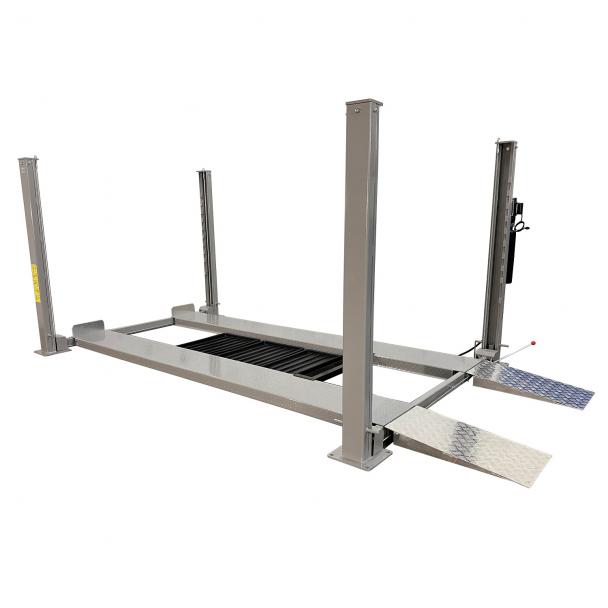

Triumph 8K Parking Storage 4 Post Lift

Model: NSS-X

(1 review)

Please Choose:

Optional Accessories

A generic image
Add RE-RD8 Gallon Oil Drain

A generic image
SJ-35 Sliding Jack

A generic image
Add ODT-30-E Self Evac Vac Oil Drain

A generic image
Add RE-RD30 Self Evacuating Oil Drain

A generic image
Add RE-AJS Auxiliary Jack Stand

A generic image
Add Two RE-AJS Auxiliary Jack Stands

A generic image
Add RE-LD Transmission Jack

A generic image
Add TJ500 Transmission Jack

A generic image
Add TJ500DT Transmission Jack

A generic image
Add TJ2KDT Transmission Jack

A generic image
Add RESS1 Under Hoist Stand

A generic image
Add Two RESS1 Under Hoist Stands
Capacity
Brand
Type

Shipping upgrades offered in cart page

$3,859.99

Description

The new Triumph 8K Service Storage 4 Post Lift is a great addition to your shop or garage! Available in the standard or larger size, this easy to set up lift features automatic locks that engage as you raise the vehicle, as well as a couple of added accessories such as a caster kit to easily move your lift or a jack tray to allow a bottle jack or floor jack to lift one end of the vehicle. Order yours today!

KEY BENEFITS
• Easy to set up
• UL listed plug
• Steel oil reservoir
• Enlarged lock linkage
• Light weight aluminum ramps
• Ideal for auto passenger cars
• Optional SJ35 sliding jack can be added
• Caster kit allows easy movement of the lift
• Optional Classic or XLT upgrade is available
• 1 year parts warranty – no other warranties implied
• Automatic locks engage at 10 different positions as you raise the vehicle
• Jack tray allows use of a bottle jack or floor jack to lift one end of the vehicle
• Drip trays keep any fluid from the top vehicle from dripping on the bottom vehicle



IMPORTANT SJ-35 NOTE
• See photos of design
• Optional SJ-35 does not sit centered between runways

Show more

Specs

• Lift time: 40 sec.
• Voltage: 110V AC
• Runway width: 18"
• Lowered height: 5"
• Capacity: 8,000 lbs.
• NSS8 cable size is 3/8
• Concrete PSI: 3,000 PSI
• Base plate size: 12" x 12"
• Lock release: single point
• Distance between runways: 37.5"
• 1st safety lock height at 18”
​• Corresponding locks every 4”
• NSS-8 outside to outside runway: 73"

STANDARD/XLT
• Lifting height: 72" (82" XLT)
• Overall height: 84" (94" XLT)
• Overall width: 106" (112" XLT)
• Overall length: 175" (190" XLT)
• Runway length: 165" (180" XLT)
• Drive through width: 93" (99" XLT)
• Clearance under runway: 69" (79" XLT)

CLASSIC
• Lifting height: 72"
• Overall height: 84"
• Overall width: 106"
• Runway length: 132"
• Drive thru width: 93"
• Under runway on top lock: 69"
• Distance between runways: 37"
• Overall length without approach ramps: 141"

Downloads

• Download the manual pdf HERE

Shipping

• NSS8 ships 1570 lbs.
• NSS8XLT ships 1695 lbs.
• Residential deliveries not possible
• Returns of Triumph brand lifts not allowed
• Ships LTL truck freight to business w/ forklift
• Can be picked up at local truck dock terminal

PLEASE NOTE
• Will not fit into back of pickup truck
• Will not be loaded into trailer if doors cannot close
• Consult shipping dimensions and weight before proceeding with pickup

Videos

Related Products

Ships free for ~ 500 miles
Triumph NSS9000DW Four Post Auto Double Parking Lift
Triumph NSS9000DW Four Post Auto Double Parking Lift $7,999.50
Ships free
Challenger 44040 40K 4 Post Lift
Challenger 44040 40K 4 Post Lift $94,579.99
Ships free
Challenger 18K 4 Post Lift
Challenger 18K 4 Post Lift $24,079.99
Ships free
Challenger 4P14EFX 14,000 Lb 14K 4 Post Lift
Challenger 4P14EFX 14,000 Lb 14K 4 Post Lift $10,369.99
Ships free
Challenger 44050 50K 4 Post Lift
Challenger 44050 50K 4 Post Lift $107,599.99
Ships free
Challenger 44030 30K 4 Post Lift
Challenger 44030 30K 4 Post Lift $36,049.99

Reviews

5.0 / 5 (1 review)
Based on 1 review Write review

  • kent b. Jan 15, 2024

    Best Deal out there

    Jan 15, 2024
    We purchased our NSS-8XLT about 3years ago and totally love it. Easy to assemble only needed one other person to help with runway with the ram and help hold the pump up. BUT 2 is advised. Use it on chevy 1500, and Polaris RzR's
1 of 1 review

Ask & Answer

  • bobby d Nov 08, 2023
    Q. My garage floor is heated I cannot drill anchors into it without damage to the tubing. can the lift be installed without anchors
    drilled into the floor
    A. This lift is certainly able to be installed without anchoring it to the floor. That being said, most lifts still require a minimum 3,000 psi compressive strength. Be sure to reference the lift manual and consult with your concrete professional to make sure you have the proper concrete to support the load of lift and vehicle(s). Thanks for reaching out Bobby D!
  • Andy Mar 22, 2023
    Q. How difficult is it to assemble the lift?
    A. THIS VIDEO shows assembling nearly the same lift and should give you a pretty good idea of what’s involved. Thanks for shopping with us!
  • Thomas Feb 20, 2023
    Q. Would the lift fit a 2012 Panamera 4?
    Here are dimensions (including wheelbase). https://www.carindigo.com/porsche/panamera-2012/dimensionsr /> Thanks!
    A. Sir, your link does not work. With that said, I'd be highly surprised if the Panamera would not fit the lift just fine. It's a standard size car. With that said, we provide all the specs you could need in the "specs" tab. We ultimately require the customer to cross reference the specs of his vehicle against the specs posted to our site and determine for his/her own self if fitment will be an issue. Thanks for shopping with us Thomas!
  • JGF Feb 06, 2023
    Q. Can the lift be modified to make the overall width 98” or less?
    A. The non-XLT lift is 106" wide. Can it be narrowed? Yes sir. Can it be narrowed within reason? No sir. To do this you'd need to perform a substantial amount of cutting and welding, which would surely void your warranty, and you'd also need to have your cables and linkages shortened. It's technically possible, but we do not recommend it. Thanks for your question sir!
  • Shad Feb 05, 2023
    Q. Are the ramps / runways, that the vehicle drives upon, a fixed width apart or are they adjustable to accommodate various vehicle axle widths?
    A. They are fixed, but the inside to inside dimesnion of the runways is 37.5 inches, so it's not really necessary that they be adjustable. You can fit nearly every car ever made on this lift without the need to either widen or narrow the runways. Thanks Shad!
