2,000 Lb Cap Cycle ATV Single Post Storage Lift

Model: SC-2K

(2 reviews)


Shipping upgrades offered in cart page

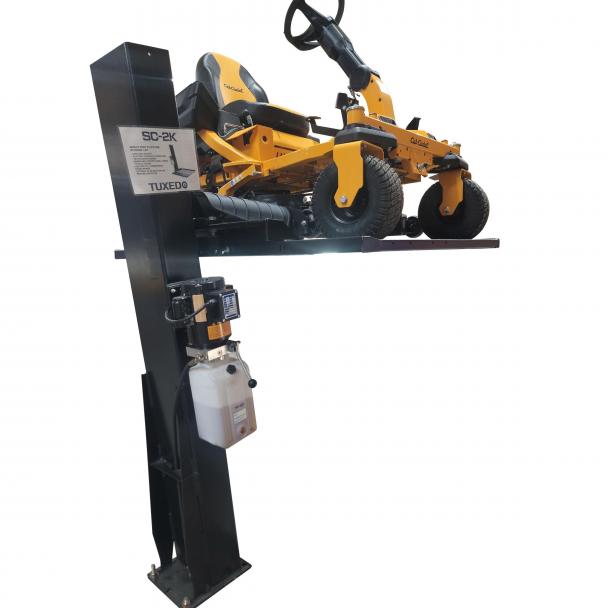

Got a small garage and the need to use ALL of your available space? The Kernel Mfg. SC2K cycle ATV storage lift creates floor space where there once was none! Use this unit to lift your atv, motorcycle, or riding lawn mower up and out of the way so your vehicle can fit underneath. A motorcycle or ATV storage lift can be the perfect solution for small shop spaces or any strategic shop owner.

• 2,000 pound lifting capacity
• 110 volt motor plugs into existing outlet
• Motorcycle platform and vise NOT INCLUDED
• Also works with lawnmowers and 4-wheelers
• Powder coated BLACK finish looks great and resists rust

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more


• Capacity: 2,000 lbs.
• Lift rise height: 58"
• Overall width: 64-5/8"
• Overall depth: 69-1/2"
• Overall height: 84-1/2"
• Power: 115VAC, 1PH, 20A
• Min platform height: 2-3/4"
• Platform frame: 64-1/2" W x 47-3/8" D
• Platform aluminum deck: 36" W x 48" D
• Platform structure: 64-1/2" W x 52-5/8" D
• Motorcycle attachment adds 30" of width to platform


• Browse the full manufacturer catalog HERE
• Download the spec sheet HERE
• Download the manual HERE


• Freight class 110
• Not available for delivery with lift gate
• Can be picked up at local truck dock terminal
• Ships LTL truck freight to business w/ forklift or rollback
• Ships as 2 bundles:
  - 1st bundle / 1 piece (tower)
  - 2nd bundle / 3 pieces w/o adapter, 4 pieces with adapter
 -NMFC code: 111220-05
 -Lift is 405 lbs. at 86" L x 19" W x 28" "H
 -Platform is 200 lbs. at 64" L x 53" W x 10" H
• Free shipping applies to $350 maximum. If shipping exceeds this amount a surcharge may be needed
• Pickup at satellite warehouses:
- Alvarado,  TX  76009






5.0 / 5 (2 reviews)
Based on 2 Reviews Write review
  • Kim Fyffe Jun 14, 2023

    Works great

    Jun 14, 2023
    Works great I installed one to go to the basement for my wife
  • burr warner Mar 18, 2023


    Mar 18, 2023
    can yall build a lift to raise 13' with contols at bottom and top. Response from Redline - Sir, you have left a review, not a question. Because of this, we have no ability to contact you with the answer and thus, we hope you see this reply. No sir, we do not offer any custom lift fabrication services. Thanks Mr. Warner.

Ask & Answer

  • Tom Apr 01, 2023
    Q. What is the warranty on this ?
    A. It's a 1 year parts warranty, and the shipping on the parts is only covered to 90 days. This means if a part breaks on day 89, it is replaced totally free to you, and you supply the labor to install it. If day 91, same deal, but you pay the shipping on the part. Day 366, you are fully responsible. Thanks Tom!
  • Thiago Nov 10, 2021
    Q. Hi!
    How much thick it needs to be the concrete flooring for the instalation? I am planning to lift less than 1000 pounds.

    A. Yes sir. Please see the manual for this unit to find all sorts of great info. On page 3, I found "A level floor is recommended for proper installation and operation. Concrete should be a minimum of 4-1/4” thickness and 3,000 psi tensile strength with steel or fiber mesh reinforcement." Thanks Thiago!
  • John Sep 20, 2021
    Q. How much does the motorcycle adapter add to the overall width of the platform?
    A. The MVA platform will be 24”, but the attached M-VISE sticks out another 6” or so. Thus, the total will be about 30” extra. Thanks John!
  • Aileen Aug 16, 2021
    Q. Can this lift be used to lift golf cart up under a beach house to get it off the ground about 3-4 ft thanks
    A. I don't see why not sir. As long as you have the necessary concrete foundation to anchor the lift, and 110V of power, you can mount one of these pretty much anywhere. Thanks Aileen.
  • Mitch Jul 30, 2021
    Q. Can the lift be made to put 2 touring bikes on the platform and be lifted up to park 2 other bikes under it?
    A. Yes and no. Can we sell you a 2nd motorcycle platform and vise? Yes. Will it bolt right up with no modification? No sir. I've seen this done but expect some custom modification will be necessary. Be sure you measure in advance to verify both bikes will fit, and that the weight capacity is not breached. Thanks Mitch.
