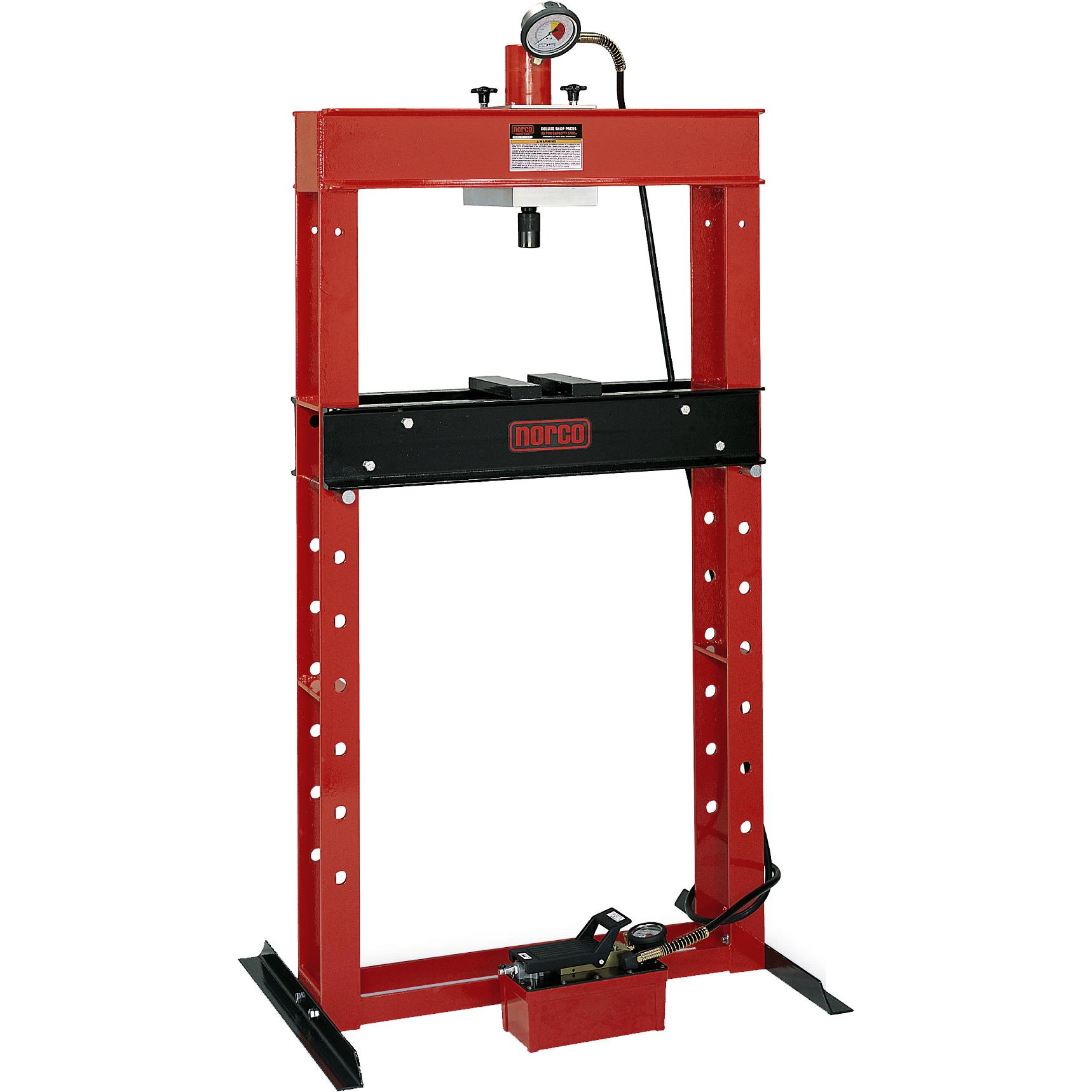

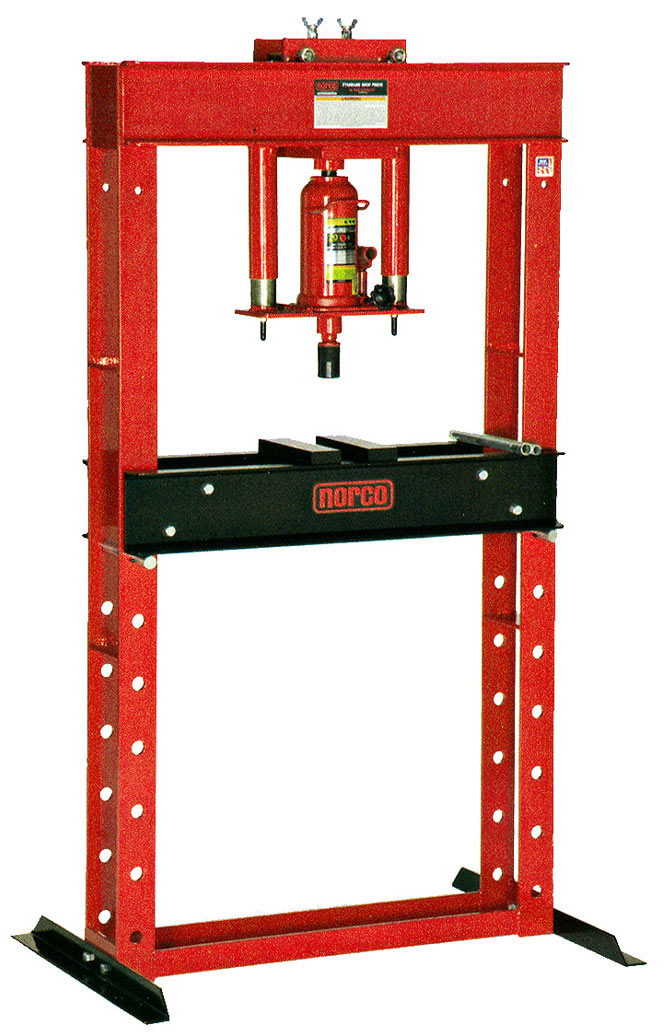

Norco 12 Ton Manual Hand Pump Shop Press $1,929.50

[DISCONTINUED] Redline 30 Ton Economy Air Hydraulic Shop Press $1,299.50

Redline 20 Ton Air Hydraulic Heavy Duty Shop Press $1,499.50

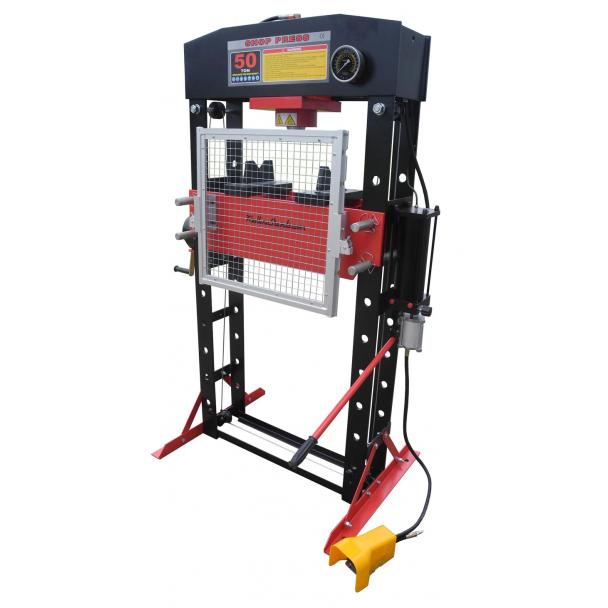

Redline 50 Ton Air Hydraulic Shop Press

Model: RE50T-A

(5 reviews)

Please Choose:

Optional Accessories

Include Rear Facing Guard ( +$174.95 )

Redline RE-AR 3/8" Air Hose Reel ( +$189.95 )

Pin Press Kit ( +$199.95 )

SMC 1/4" Lo-Flow Water Separator ( +$99.95 )

Extra Pair Of Press Plates ( +$314.50 )

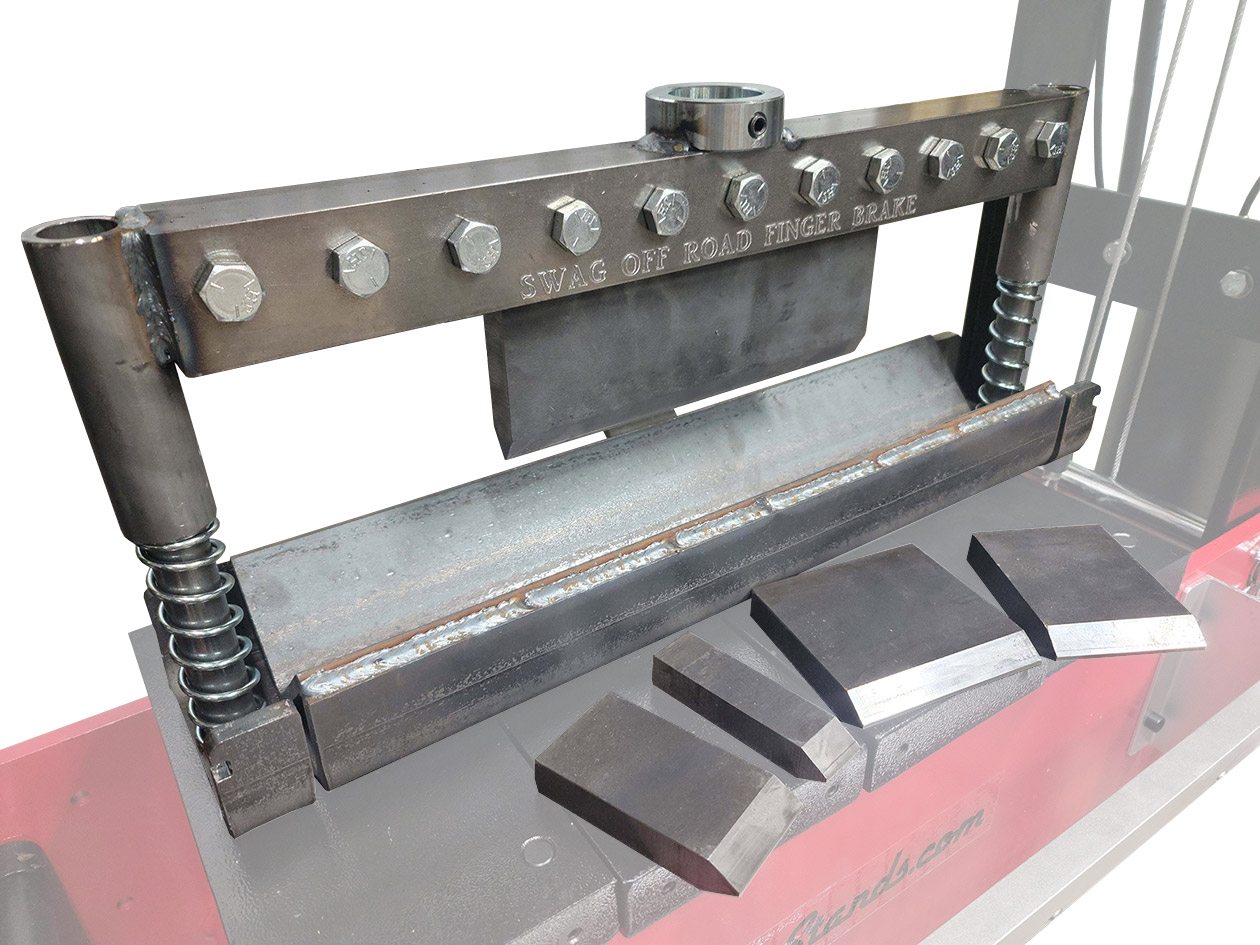

U-Weld-It Metal Bending Finger Brake ( +$449.50 )

Include Rear Facing Guard

Redline RE-AR 3/8" Air Hose Reel

Pin Press Kit

SMC 1/4" Lo-Flow Water Separator

Extra Pair Of Press Plates

U-Weld-It Metal Bending Finger Brake

Brand

Redline Engineering

Type

Air over Hydraulic

Shipping upgrades offered in cart page

$2,999.50

In Stock in

Pensacola

Usually Ships Within

24-48 Hrs

This industrial Redline 50 ton hydraulic shop press is an air over hydraulic pressing machine perfect for manufacturing, auto repair, or general mechanical work. It features a pump capable of manual operation, as well as the ability to be powered via compressed air. Other standard features include a tonnage gauge, a winch that allows for easy raising and lowering of the press carriage, and a protective safety guard that reduces the possibility of an object flying out under pressure and hitting the operator. This press comes standard with 1 front facing grid guard and 1 set of press plates, but an additional rear facing guard as well as an extra set of press plates are also available for purchase. Order your new 100,000 pound capacity hydraulic shop press today from Redline Engineering!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• CE Certified
• 50 ton capacity
• Powder coated finish
• Air pedal is shielded for protection
• 36" movement of carriage up and down
• 8 height adjustments of 4.5" increments
• Carriage winch for easy carriage adjustment
• Ram cylinder capable of shifting both left and right
• Pressure gauge accurate +/- 2.5% of press capacity
• Welded shelves inside carriage to help support press plates

PRESS PLATE RATING
• Each press plate is rated to ½ the tonnage of the press; thus, if applying the press’ maximum force, the load must be distributed over both press plates to avoid damaging the press

• Hose length 50"
• Leg length 31.5"
• Cylinder stroke 7.8"
• Handle length 27-1/4"
• Air pump full stroke: 150s
• Main frame is 3.5" x 0.50"
• Inside frame width: 28-3/4"
• Cylinder ram diameter 2-3/4"
• Pump fluid volume: 81.1 fl oz.
• Manual full stroke: 126 pumps
• Interior carriage length:16-1/4"
• Internal cylinder diameter: 3.94"
• Operates at a 75dB sound rating
• Piston retraction time: 84 seconds
• Two heavy duty press plates 5" x 11"
• Air motor requires 7 CFM of air supply
• Pressure gauge accurate to +/- 2.5%
• Maximum pump pressure: 9050 PSI
• Overall dims 52.5" L x 31.5" W 73.5" H
• Cylinder piston/bore diameter: 3.93701"
• Interior carriage shelf-to-shelf width: 7-3/8"
• Middle carriage 35-3/4" W x9-1/4" D x 9-3/4" H
• Air pump full range without load: 165 seconds
• 10 inch cylinder shift left to right: 4-3/4" both ways
• Approximate number of pumps to full range without load: 126
• Work dims between cylinder and press plates:
-Min height from cylinder: 1-11/16"
-Max height from cylinder: 40"

• Download the manual pdf HERE

• Residential deliveries cost extra
• Ships to commercial location w/ forklift
• Units available in Pensacola, FL with rebate
• Pensacola, FL pickups – read our policies HERE
• Press with pallet ships @ 809 lbs. - 83" x 38" x 12" class 65
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed

Ships free

Redline 10 Ton Benchtop Hydraulic Shop Press

$499.50

Redline 20 Ton Air Hydraulic Shop Press

$799.50

Ships free

Redline 12 Ton Manual Hydraulic Shop Press

$549.50

Dake Force USA Made 25DA 25 Ton Hydraulic Electric Shop Press $5,679.50

[DISCONTINUED] Redline 30 Ton Economy Air Hydraulic Shop Press $1,299.50

Redline 20 Ton Air Hydraulic Mechanics Press CLEARANCE $599.50

Reviews

4.8 / 5 (5 reviews)

Based on 5 Reviews Write review

Jeff Neises Feb 2, 2024

Good Quality
Feb 2, 2024

I am impressed. The table is stable and doesn't rock. The ram moves side to side easily yet isn't loose. The winch works good. I really cant find anything about it that I'm not fully satisfied with. And that's very rare for me. It came almost fully assembled so setup took less than an hour. The ram and the hose going to it was even pre filled so I didn't even have to bleed air or add oil. I am impressed. This is definitely not the typical "made in china" quality.
Christopher Cox Dec 26, 2023

Excellent press
Dec 26, 2023

Very solid and well designed piece of equipment with little frame spring at higher loads. Only issue I have found is that the hydraulic release is too low on the far right, slowing down release on production operations.
Devin W Aug 8, 2023

Solid buy.
Aug 8, 2023

Press is very well constructed, and functions exactly how you would expect, with plenty of power even before the tonnage limit. Nothing on it seems cheap with no corners cut. Shipping was a bit of a nightmare due to unforseen circumstances in the freight world, but Redline was quick to do everything in their power to get the machine to us intact and complete. Would absolutely do business again.

Ask & Answer

EDMBill Oct 28, 2024

Q. If you need to bring the ram down 2 or 3 inches to contact your part, how long does that take? Is it fast until it contact the part?
A. It takes 150 seconds for the cylinder to move its full stroke length of 7.8 inches, so 2-3 inches is likely to be around 50 seconds or so. Thanks for shopping with us!
Puzzled Aug 19, 2024

Q. In the specs for the 50 ton RE50T-A it lists the interior carriage length as 16-1/4”…….. should that be 26-1/4”???
A. The 16 1/4" interior carriage length is the open space between the welded carriage braces. Please reference the photo with the tape measure for more clarity. If the photo doesn't answer your question, please give us a call at 901-351-4764 so we can try and get it cleared up for you. Thanks for shopping with us, Puzzled!
Alfred Nov 22, 2023

Q. Does the ram automatically retract? .. I need it to go up some after I release the foot pedal
A. The ram does not automatically retract when you take your foot off the pedal. You must manually open the release valve for it to retract. You can then close the release valve at any point during retraction and it will stop. Thanks for reaching out Alfred!
Pressman Oct 09, 2023

Q. What is the differences in the economy vs std?
A. There are little differences you can see, such as the std has a food pedal and the economy doesn't, but the biggest differences are speed and quality. The Eco unit is much slower. The ram just doesn't move nearly as fast. The second is quality. They're made at different factories and the build quality of the std unit is simply better. Thanks for your queston!
Randy Jul 20, 2023

Q. What is the availability of the RE50T-A as of today 7-20-23
A. As of 7/20/2023, we have the RE50T-A in-stock in our Pensacola, FL warehouse. Orders generally leave our warehouse within two business days. Thanks for reaching out Randy!
