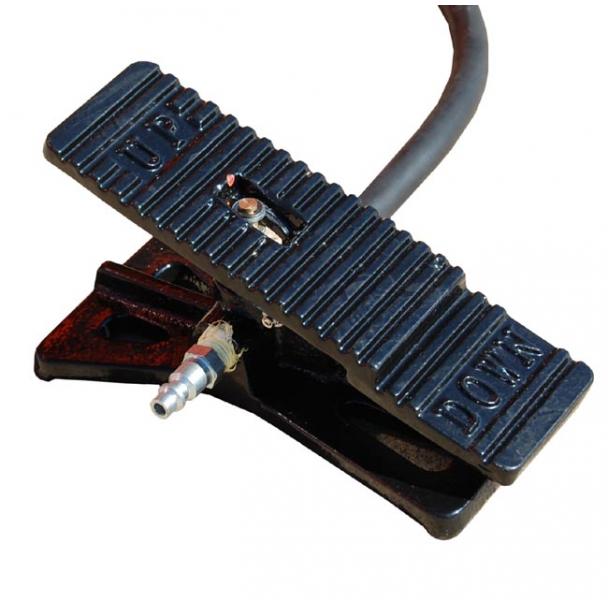

Redline Replacement Motorcycle Air Lift Table Foot Pedal

Model: HJFP




The Redline foot pedal is perfect for replacing foot pedals on any lifting table.  Whether you've accidentally driven over your old foot pedal or if your existing foot pedal has simply given out, this pedal will get any 1,000 lb air operated table back online and into commission again.  Order your new foot pedal today!

Product may arrive either black or red

• 1 year warranty
• Hose NOT included
• Recommended to 120 psi
• Powder coated to never rust
• Runs any 1,000 air operated table
• Great replacement for Titan 1000D air foot pedal


Show more


• Ships 5 lbs. at 9" x 5" x 3"


Ask & Answer

  • Ed Jun 29, 2023
    Q. My current three position pedal work just fine but there is no detent for the neutral position. I have had some unexpected ups and downs because of this lack of neutral detent. Does your pedal have such a detent?
    A. You can position this in the neutral position, but there is no detent for it to click into. Rock it one way to raise, the other to lower, and position in the center by feel for neutral. Thanks for reaching out Ed!
  • Me May 09, 2023
    Q. I have a Handy BOB 1500, this looks like the unit that was shipped with the lift 5 years ago. I need to replace it... will this work with the 1500 sized lift or is it not the correct unit for the size?
    A. It'll work fine with any air tool sir. It's nothing more than a valve, so you could use it to control any air operated device that's ever been made. We've seen plenty of folks use these for lift tables. Thanks Dustin!
  • msmdomination Jan 06, 2023
    Q. I only need the washer, or c-clip, or whatever holds the pedal to the plunger. Do you guys sell that? I bought it used, so I don't even know what's supposed to go there. Maybe a hardware store has it?
    A. My apologies sir but we do not stock individual pieces to this product. We can only sell you the whole pedal. Sorry we can't be of more assistance.
  • cyco1450 Jan 03, 2023
    Q. i have a Titan 1000 MC lift. is the foot pedal a 2 position or a 3 postion pedal?
    A. Assuming your have a 1000D lift by Titan, you’ll need the HJFP Foot Pedal to replace your foot pedal. It’s a 3 position pedal. The middle neutral position does nothing. Tilting it forward raises the lift, and tilting it backward lowers the lift. Thanks for shopping with us!
  • Weldawg Mar 04, 2022
    Q. I need one for a old coats tire machine.
    Is it a neutral position and then toe up and heel down position with your foot?
    A. So, these pedals are nothing more than foot operated air valves. The neutral middle position does nothing. Step on it one way, and it allows compressed air to pass through the pedal and to the machine. Step on it the other way and it allows compressed air from the machine to escape into the atmosphere. Thanks for your question!
