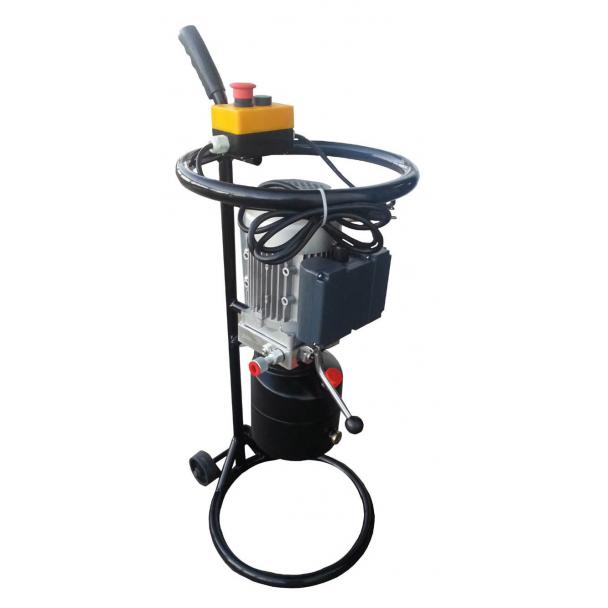

Redline 1500HD/2200HD Scissor Lift Electric Pump Power Unit

Model: 15/2200HD_EP

Brand

Shipping upgrades offered in cart page

$799.50

Description

This is the Redline 1500HD / 2200HD Electric Pump. This quiet yet smooth mobile lifting pump is a great addition to any Redline 1500HD or 2200HD Lift Table when added with the large electric cylinder. Order yours today!

KEY BENEFITS
• Includes 1 gallon reservoir
• 4,060 PSI electric/hydraulic pump
• Optional upgrade to electric/hydraulic cylinder combo available
• Large electric cylinder needed if upgrading your 1500HD from air to electric

UPGRADE TO ELECTRIC
• Pump is 110V
• Electric is smoother, quieter, and faster!
• Upgrade to electric pump & large cylinder
• Air/hydraulic pump not needed or included

OPTIONAL ELECTRIC/HYDRAULIC CAPACITY
​• Release pressure will need adjusting for max lift
• 1400 lb capacity with sides, front extension & vise
• 1550 lb capacity without sides, front extension & vise


Show more

Specs

Air Powered Cylinder
• Stroke length: 12-1/4
• Diameter of ram:  2-3/16
• Extended length: 35
• Diameter of bore: 1-7/8
• Diameter of Piston: 1-3/8
• Compressed length: 22-1/2
• Diameter of mounting hole at bottom of ram: 5/8
• Diameter of cylinder base where unit mounts to lift: 2-1/8

Electric Powered Cylinder
• Stroke length: 11-3/4
• Diameter of ram:  2-5/8
• Extended length: 34-3/8
• Diameter of bore: 2-1/4
• Diameter of Piston: 1-3/8
• Compressed length: 22-1/2
• Diameter of mounting hole at bottom of ram: 5/8
• Diameter of cylinder base where unit mounts to lift: 2-1/8

Shipping

• Ships 74/76 lbs. at 40" x 16" x 20" Class 125

Videos

Reviews

Ask & Answer

  • Skull Aug 04, 2023
    Q. How many amps does your electric motor draw?
    A. 8.9 amps. Thanks for your question!
  • Paul Mar 11, 2022
    Q. I have previously purchased "Redline 1500HD Motorcycle ATV" with "Redline Motorcycle Lift Table Hydraulic Pump; Model: PP15HD" can it be upgraded to the "Electric Pump"? Would I have to change the hydraulic cylinder?
    A. Correct sir. The electric pump we offer makes "less" pressure so we use a "larger" cylinder in order to generate the same amount of "force." Thus, you would indeed need the larger E version of our 1500HD cylinder. If you go without the E cylinder upgrade, expect your lifting capacity to likely be closer to 1,200 lbs or so. Thanks Paul!
