Redline Electric 2200HD Lift Table with UTV/ATV Side Extensions

Model: 2200HD

(10 reviews)

Please Choose:

Optional Accessories

A generic image

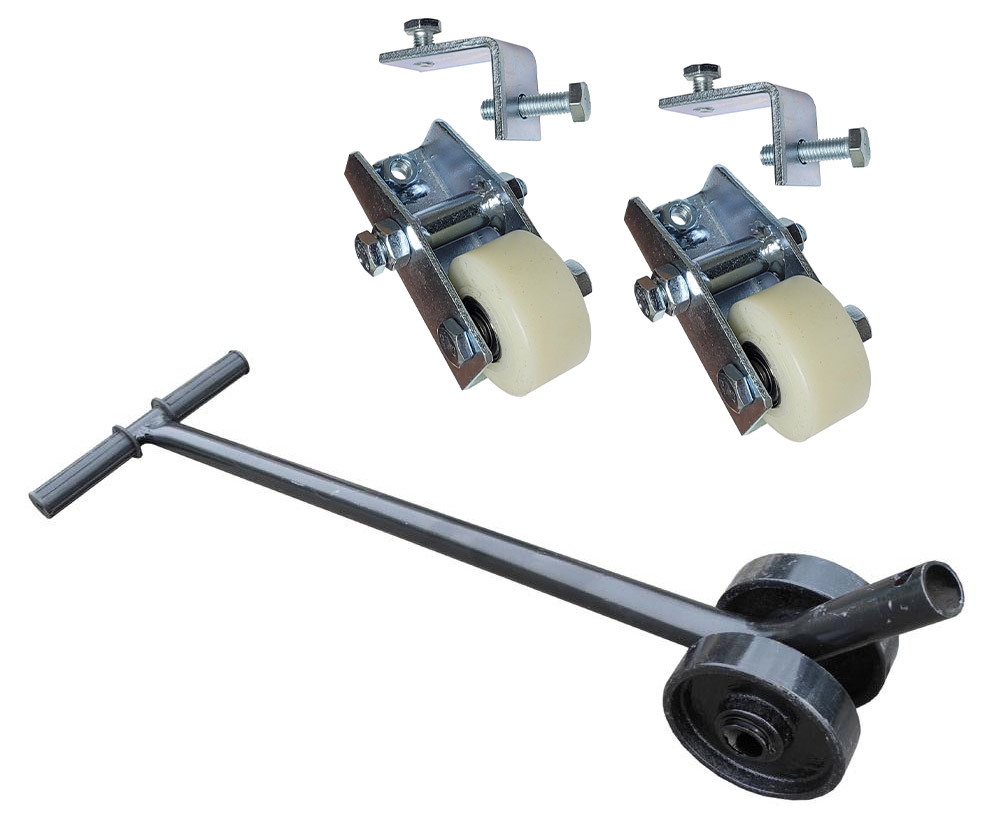

Include Wheel Dolly Kit (2200HD-WDK)

A generic image
Include 2 Ton Air Balloon Jack (RE-2ABJ)

A generic image
Include 2 Ton Air Balloon Jack (RE-3ABJ)

A generic image
Include Motorcycle Frame Jack (RE-FJ)

A generic image
Include Two Frame Jacks (RE-FJ)

A generic image
Include ATV Frame Jack (RE-ATVJK)

A generic image
Include Two ATV Frame Jacks (RE-ATVJK)

A generic image
Include Wheel Chock (RMC2)
Capacity by LBS
Brand
Type

Shipping upgrades offered in cart page

The price will increase on 12-01-2026 Reg. $3,549.50 Sale price $3,499.50
1% off
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

Bigger is better, and the Redline 2200HD Electric Motorcycle ATV and Side by Side Lift Table is no exception! This heavy duty 11 gauge steel constructed lifting table features a 2200 lb. lifting capacity, 4 pins & rings to lock the extension bars into place, and a powder coated finish. It also features 10 different locking positions that use the safety latch to lock into place and prevent unwanted lowering of the table. It includes an electric motor, hydraulic hose, side extensions with side extension ramps, a vise, and a loading ramp. Order yours today!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• Powder coat finish
• Lift capacity of 2200 lbs.
• Constructed of 11 gauge steel
• 10 different locking positions
• Uses 1 gallon #32 hydraulic fluid
• Includes 4 pin & rings for the extension bars
• Safety latch locks into place to prevent unwanted lowering of the table
• Comes with electric motor, hydraulic hose, side extensions, loading ramp, vise, and side extension ramps



OPERATE SAFELY
• Using motorcycle ratchet straps are mandatory for your safety
• Wheel vise alone not sufficient to secure motorcycle to lift table



Show more

Specs

• 110V
• Base dims: 30" W x 71-1/8" L
• Min/Max lifting height: 8" - 47"
• 4,060 PSI electric/hydraulic pump
• Loading ramp dims: 29" W x 24" L
• Drop panel dims: 15-7/8" W x 23-5/8" L
• Side extension dims: 15-3/8" W x 94-1/2" L
• Side extension ramp dims: 14-1/2" W x 25-3/8" L
• Overall dims (without side extensions): 30" W x 86-5/8" L
• Overall dims (with side extensions): 60-3/4" W x 94-1/2" L

Downloads

• Download the manual pdf HERE

• Download the motorcycle lift table comparison chart  HERE

Shipping

• Residential deliveries cost extra
• Lift gate unavailable due to width
• Local dock pickup saves residential fees
• Ships to commercial location w/ forklift
• Pensacola, FL pickups – read our policies HERE
• Units available in Pensacola, FL with $250 discount
• Ships as two pieces
 (99" x 32" x 17" @ 848 lbs) Class 65 - Extreme length
 (39" x 19" x 17" @ 61 lbs) Class 125
• Free shipping applies to $600 maximum. If shipping exceeds this amount a surcharge may be needed



Videos

Reviews

4.7 / 5 (10 reviews)
Based on 10 Reviews Write review
  • Patrick M. Aug 14, 2026

    Redline 2200HD Lift Table

    Aug 14, 2026
    This is our second purchase of the 2200 HD and we are very happy with it. It is well made and can really hold the weight is is rated for.
  • Jul 29, 2026

    thank you! game changer for maintenance

    Jul 29, 2026
    finally talked the owner of the golf course into buying us a maintenance lift. we landed on the 2200HD and its been able to handle all of our carts and maintenance vehicles. it goes up higher than most of them i looked at so no bending down for me! and it is heavy as all get out so it don't wobble once you get something on it. my back thanks you.
  • Jun 19, 2026

    Would not be without

    Jun 19, 2026
    I purchased a 2200HD last year. It has allowed me to work on my Harley TriGlide without any difficulty. I recommend the hydroelectric motor option. My TriGlide had a problem climbing the ramps due to loss of traction. I added 2 staggered layers of 1 inch rubber mat from tractor supply. I left it a bit long on the floor so the TriGlide was on it before the ramp. Works great no traction problems. The second layer was added as the TriGlide bottomed out coming off the ramp. That problem also solved. Would like to have a guard rail type stop at the front instead of the wheel clamp but that is next. Excellent product wouldnt be without. Thank you.

Ask & Answer

  • Shawn Aug 23, 2026
    Q. I have a 2021 Polaris Ranger XP 1000 Crew. The wheel base is 65x 112 minimum. Do you have a table lift option for this? I like the HD 2200 but the dimensions show this will not work for my needs. If there is something available to accommodate this please let me know. Thank you.
    A. The largest table we have is the Handy GRUNTAVORE. It has a tabletop size of 104” x 60”. Not quite the 65” x 112” that you’re hoping. In terms of width, you’d have 2.5” of each tire overhanging the sides. Bear in mind that you said 112” was the “wheelbase.” Wheelbase is axle center to axle center. In other words, we don’t really care if the tire hangs off the table at the ends, so long as the point the tire touches the ground is resting comfortably on the table. With all of this said, it would be close. You might want to consider removing the sides on a table like the 2200HD, drive over the lift, and lift from the belly of the UTV instead of from the tires. Thanks for shopping with us!
  • Mikego55 Dec 27, 2024
    Q. Will this or one of lifts support a 2021 Can Am Spyder?
    A. We certainly recommend cross referencing the posted specs of the size of the 2200HD table top to make sure it's big enough for your Spyder. Pay specific attention to the wheelbase of your bike to make sure it's not too long for the lift. It probably will be fine, but it's certainly best to check before ordering. With that said, most Spyder owners will instead buy our TR1500 because it comes standard with a front extension panel. Thanks for shopping with us!
  • Heck Oct 03, 2024
    Q. I just bought and installed a new 2200HD lift. There are no instructions for the electrics/pump. The lift raises perfectly. But, I can't get it to lower back down. I pushed the lever down, nothing happens. What am I missing?
    A. No problem. It sounds like your safety locking bar is still engaged. You'll need to raise the lift up high enough so that there is no load on the safety lock. Next, you'll operate the handle on the side of the lift so that the safety bar is in the upward position. This allows it to pass over the safety locks and lower to the ground once you depress the down lever on the power unit. I hope this helps. Call our tech guys at 901-351-4764 if you need any further help. Thanks for shopping with us!
  • Ron Mar 16, 2024
    Q. Are there any available coupons on this item
    A. Hi Ron. I'm afraid there are not sir. We pretty-much price the 2200HD at the most competitive price we can offer and leave it there. Thank you for shopping with us sir!
  • Larry Jan 23, 2024
    Q. Hi, I’m about to pour my shop floor, I’m installing a pit to drop an HD 2200 into.
    I need to check the dimensions, it looks like
    30" W x 86-5/8" L x 8” deep
    THANKS!
    Larry
    A. While these dimensions are correct, we do not recommend pouring the slab until you already possess the lift. If you're going to buy the lift anyway, then buy it before pouring. Should you later learn some silly error was made, it will be impossible to correct it when your concrete is already hard. We recommend pouring your hole in your concrete with about an extra half inch of space all the way around the lift. Thanks Larry.
