Redline Hydraulic Motorcycle Lift Table Replacement Cylinder

Model: HDCYL

Please Choose:

Optional Accessories

A generic image
Hydraulic Hose
Brand

$289.95
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

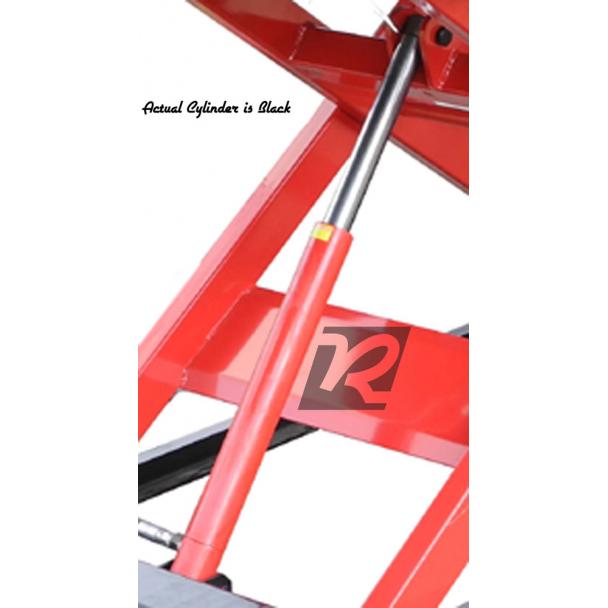

This is the OEM factory Redline replacement hydraulic cylinder for the 1500HD and 2200HD lift table. We offer this cylinder not because customers need replacement cylinders periodically but instead because many people convert their non-Redline lifts to Redline hydraulics. Order yours today!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• Powder coated black to never rust
• Electric model has larger diameter
• Factory Redline cylinder will not let you down!
• Standard model operates both via foot or air power
• Electric model is NOT electric in itself, but is for the electric pump

Show more

Specs

1500HD-A Cylinder
• Stroke length: 12-1/4"
• Extended length: 35"
• Diameter of bore: 1-7/8"
• Diameter of Ram: 1-3/8"
• Compressed length: 22-1/2"
• Diameter of mounting hole at bottom of ram: 5/8"
• Diameter of cylinder base where unit mounts to lift: 2-1/8"

1500HD-E Cylinder
• Stroke length: 11-3/4"
• Extended length: 34-3/8"
• Diameter of bore: 2.4"
• Diameter of Ram: 1.743"
• Compressed length: 22-1/2"
• Diameter of mounting hole at bottom of ram: 5/8"
• Diameter of cylinder base where unit mounts to lift: 2-1/8"

1500ELE Cylinder
• Stroke length: 12-1/4"
• Extended length: 31-3/4"
• Diameter of bore: 2.755"
• Compressed length: 19-1/2"
• Diameter of mounting hole at base: 5/8"
• Diameter of cylinder casing O.D.: 3.165"
• Diameter of cylinder base where unit mounts to lift: 2-1/8"

2200HD Cylinder
• Diameter of Ram: 1-3/8"
• Compressed length: 22-1/4"
• Diameter of mounting hole at bottom of ram: 5/8"
• Diameter of cylinder base where unit mounts to lift: 3"

Shipping

• Electric: 28 lbs. at 3-1/4" x 5-1/2" x 12-1/2"
• Non-electric: 21 lbs. at 3-1/4" x 5-1/2" x 12-1/2"

Videos

Reviews

Ask & Answer

  • Hammer Oct 14, 2026
    Q. Replacement cylinder for RML 1500 Ranger
    A. Sir, Ranger is our competition. My apologies, but we do not attempt to retrofit Redline parts into our competitor's products. You'd need to contact Ranger for an OEM part. Often times our parts will work in our competitor's equipment, but careful inspection of our posted specifications should be considered by the customer before ordering as we do not allow returns in the event our parts do not fit our competitor's equipment. We unfortunately had to institute this policy years ago as customers would occasionally try to hammer our parts into place, and if they wouldn't fit, they'd return them in poor condition. I'm sorry we couldn't be of more help.
  • Paul M Mar 26, 2023
    Q. Is there any info or maybe a video on how to rebuild or replace this cylinder on a 1500HD table? Thank You
    A. Like this? Thanks for shopping with us!
