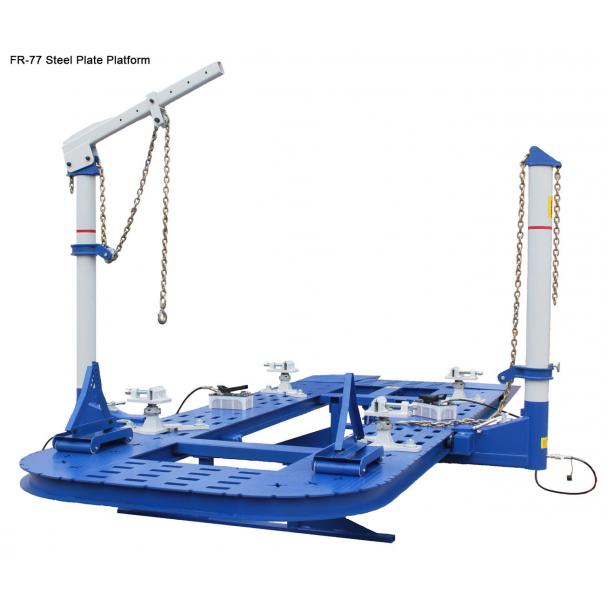

iDEAL FR-77 Frame Machine

Model: FR-77

Optional Accessories

Tool Clamp Kit

Bag Jack


Measuring Kit

Shipping upgrades offered in cart page



iDEALs 18/20 Ft frame machine is the biggest of the big. It features a unique deck design for unlimited positioning of its many optional accessories, as well as a choice between the steel plate platform and the tubular platform. Unlike other frame straighteners, the iDEAL FR-77 includes drive-on ramps. With its durable heavy duty construction and powder coat finish, this frame machine is garuntee to last! Call to order yours today!

• Adjustable tower collars
• Deck length choice of 18' or 20'
• Optional deluxe tool board & tools available
• Multiple precision cut tie-down hole locations
• Durable heavy duty construction with powder coat finish
• Designed to accomodate full-frame or uni-body type vehicles
• Hydraulic tilt deck opreation with 7,700 lb. lifting capacity
• Twin 10-ton towers incorporate 'clear floor' 360° pull capability
• Comes standard with (2) pull chains w/ hooks & (2) HQ air/hydraulic pumps
• Universal anchoring system with adjustable height pinch clamping assemblies
• Includes quick disconnect hydraulic fitting & hose connections as well as drive-on ramps

• 1 year parts warranty

• 8% sales tax will be charged on all shipments going to CA after the sale

• Our supplier does not accept returns on this item
• In event of warranty claim, replacement part(s) will be sent

Show more


• Deck width 82.6"
• Deck height 19.7"
• Deck length 18'/20'
• 10 ton bed lifting ram
• 10 ton tower hydraulics
• Working capacity 7,700 lbs
• Required air power: 100-120 PSI
• Hydraulic system pressure 10,000 psi
• Twin 10 ton pull towers w/ telescoping heads


• Browse the full manufacturer catalog HERE
• Download the FR-77 manual HERE
• Download the FR-77T manual HERE
• Download the pdf spec sheet HERE


• Shipping weight: 5071 / 5953 lbs.
• Item must be shipped to a location with truck dock & large forklift
• Pickup at satellite warehouses:
- Reidsville, NC 27320
- Alvarado, TX 76009
