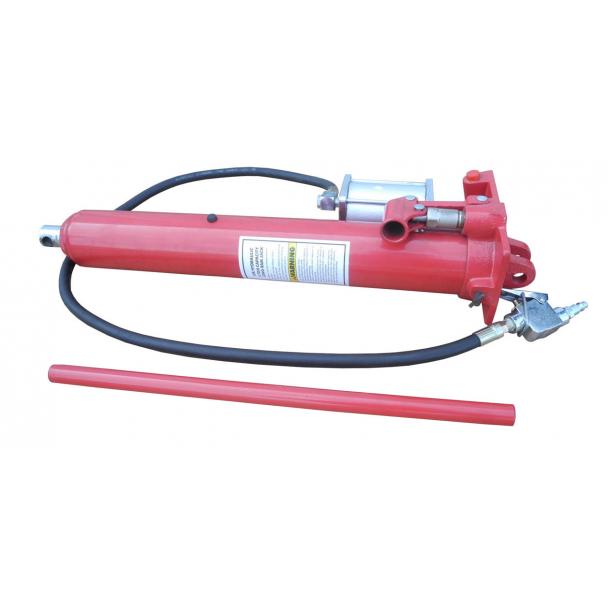

Redline 8 Ton Auto Rotisserie Air Assisted Cylinder

Model: RE-AAC

Please Choose:

Brand

$199.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

This is the OEM factory replacement for the Redline RE-AAC Air Assisted Cylinder for your ROT3000-LD, RTS3000 or ROT3K rotisserie. It features an 8 ton rated capacity, a sleek powder coat finish, and can lift by using air power or the manual pump. Two cylinders are required for one rotisserie. Order yours today!

KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• Handle is included
• 8 ton rated capacity
• Powder coated finish
• Actual color of unit is black
• 2 cylinders are needed for 1 rotisserie
• Can use air power or manual pump for lifting

Show more

Specs

• Max length: 44"
• Hose length: 49"
• Min length: 26-5/16"
• Ram diameter: 1-1/4"
• Housing diameter: 3"
• Handle length: 19-5/8"
• Stroke length: 18-5/16"
• Max air supply: 120 PSI
• Top/bottom mount hole: .756"
• Requires 7 CFM of air to operate
• Max operating pressure 8,209 psi



Shipping

• Ships 34 lbs. at 27" x 9" x 7"

Videos

Reviews

Ask & Answer

  • Josh Oct 04, 2024
    Q. I have a harbor freight motorcycle lift table and for the life of me I can't find the replacement bottle jack with the eyelets kana the bottom. I was wondering if I could use this product or any of your other products to replace it.
    A. The only Harbor Freight replacement pump we carry is THIS PUMP, which fits the #68892 and nothing else. Unless you have a #68892 life, we’re unable to help. Thanks for shopping with us!
  • jo Apr 05, 2024
    Q. What air pressure is needed for these?
    A. You'll need about 120 psi to get it working to its full potential. Thanks Jonah!
  • Brendon Feb 17, 2023
    Q. Hi, if I had one of these on each side of a rotisserie, could I feed them both from a manifold and raise them together simultaneously?
    A. I don't see why not. Just bear in mind that if one side is substantially heavier than the other, the airflow will take the path of least resistance and raise the side that requires less force. Thanks Brendon.
