Redline TJ500DT Double Tilt Transmission Jack Head

Model: TJ500DT-H

(2 reviews)

Please Choose:

Brand

$249.95
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

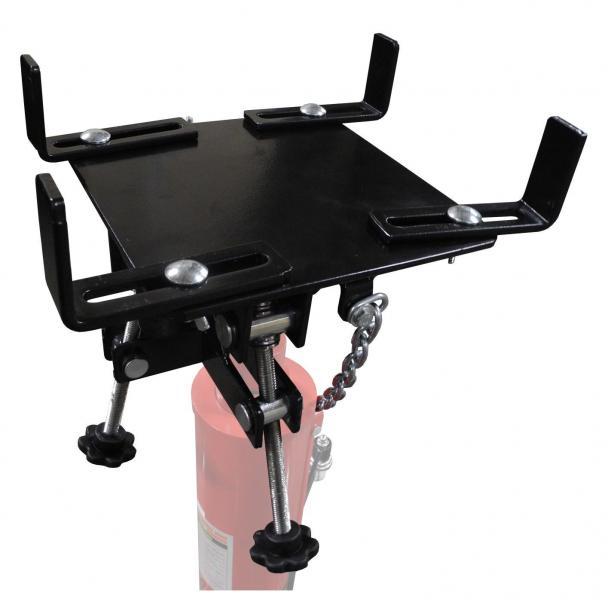

This is the Redline TJ500DT Double Tilt Transmission Jack Head. This head is able to fit on any transmission jack with a ram diameter of 1.175" or 1.350".  A diameter reduction sleeve is included that allows it to be mounted to either size ram.  The customer could mount this head to essentially any size ram not larger than 1.350” in diameter if a custom sleeve is machined by the customer to allow for fitment.  This transmission jack head includes all the components  including the hardware, four arms, and 58" chain. Enhance your basic transmission jack with this double tilt head today!

KEY BENEFITS
• Adjustable head arms
• 2 tilt knobs for double tilt action
• Mounting hardware, arms, and chain is included
• Fits Redline TJ500 & TJ500DT transmission jacks
• Commonly added to inferior transmission jacks as an upgrade

Show more

Specs

• Chain: 58" L
• Ram inserts into head 1.95"
• Head dims: 11" x 11" (0.323" thickness)
• Max ram diameter: 1.175" with sleeve / 1.350" without sleeve

Shipping

• Ships 35 lbs. at 12" x 12" x 12"

Related Products

SaleShips free
Redline 1,100Lb Cap Single Stage Transmission Jack CLEARANCE
Redline 1,100Lb Cap Single Stage Transmission Jack CLEARANCE
Reg. $449.50 Sale price $349.50
22% off
Ships free for ~ 500 miles
Jack Tech SK6100 Transmission Jack Head
Jack Tech SK6100 Transmission Jack Head $669.95
Ships free
Jack Tech SK7100 Cross Member Head
Jack Tech SK7100 Cross Member Head $549.95
Ships free
Redline PT1650 Powertrain Jack Cradle Head Attachment
Redline PT1650 Powertrain Jack Cradle Head Attachment $434.95
Ships free
Redline Transmission Jack Cylinder Rebuild Kit
Redline Transmission Jack Cylinder Rebuild Kit $59.95
Ships free
Redline RE-PTL Powertrain Lift Pump Seal Kit
Redline RE-PTL Powertrain Lift Pump Seal Kit $44.95

Reviews

5.0 / 5 (2 reviews)
Based on 2 Reviews Write review

  • Scott Hammer Jan 15, 2025

    Trans jack head

    Jan 15, 2025
    Fit perfect, looks like really good quality. Operates smoothly. My Jack only tilted in one direction. Now my Jack operates and looks like the really expensive ones.

  • Scott Dec 24, 2024

    Transmission jack head

    Dec 24, 2024
    Fit perfect, well made, tilt mechanisms work smoothly. Great upgrade, my Jack only had a single tilt. My jack now looks and works just like the expensive ones.
