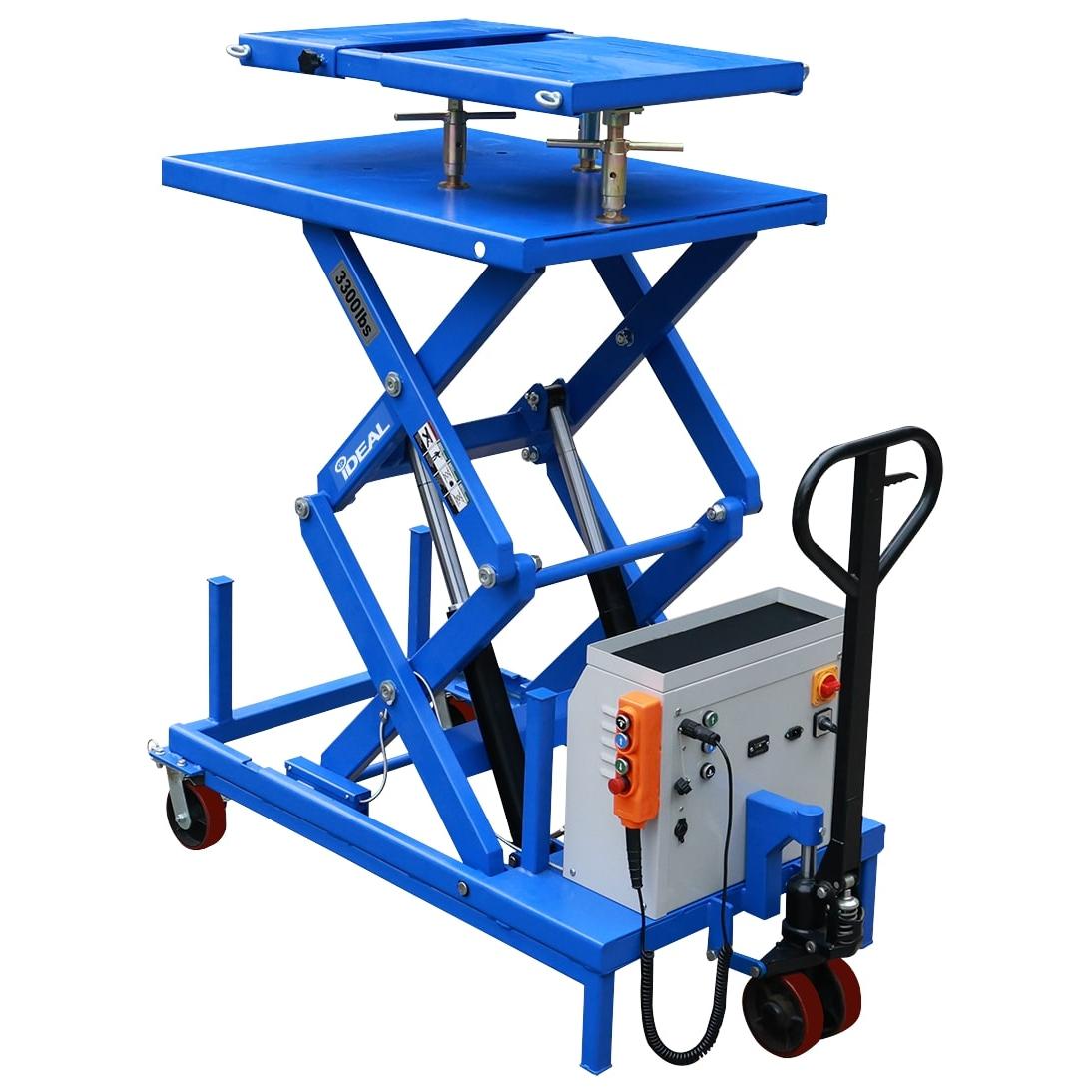

iDEAL 3300 lb. 12V Powered EV Battery / Powertrain Lift Table

The iDEAL LT-PT3300DC-X is a 3,300 lb. portable, high-rise commercial / industrial grade 12VDC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle & transaxle assemblies, or other similar heavy components. The LT-PT3300DC-X comes standardly equipped with a durable powertrain platform that includes extendable length, tilt & height adjustments, while also incorporating a fully operational remote hand controller & control box panel buttons for dual operational control operations. Also included is a high quality deep-cycle 12VDC sealed battery, integrated battery charger and 12VDC auxiliary outlet port. In addition, the iDEAL Powertrain 3300 lb. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel & directional poly casters, tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders, tie-down anchors, and heavy duty ratchet strap. Alternatively, you can also select the LT-EV3300DC-X which incorporates a ‘multi-adjustable’ EV platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle components, especially for electric & hybrid vehicles, such as EV battery packs, motors, powertrain assemblies, or other similar heavy components. Order yours today!

KEY BENEFITS
• 3300 lb weight capacity
• 3 locking height positions
• Durable powder coat finish
• Directional and locking 6" poly swivel casters
• Integrated utility tool tray and sub-platform storage area
• 12VDC battery operation with integrated 110V battery charger
• Heavy duty jack screws for precision tilt and height platform adjustments
• Double scissor heavy duty design with dual high quality hydraulic cylinders
• Includes 12VDC battery, 4x tie-down rig eyelets, 1x heavy duty ratchet strap
• Efficient and safe method to install or remove heavy vehicle powertrain components
• EV model includes insulated, multi-directional sliding EV platform with adjustable latch clamps
• Dual DC electrical operation using control panel or magnetic hand control buttons for ease of lifting, locking, and lowering

OPTIONAL Kit Accessory (LT-PT-PSAEK)
• Cannot be used with EV model
• Durable zinc plated stands and extensions
• Quickly mounts to slots on powertrain platform
• Provides additional powertrain platform support for different powertrain components
• Includes 4x (1"D x 8"H) support stands with M10 flange bolt and nut mount hardware
• Includes 4x short 5" high and 4x long 9" high height extensions for 19.75" max height

Show more
