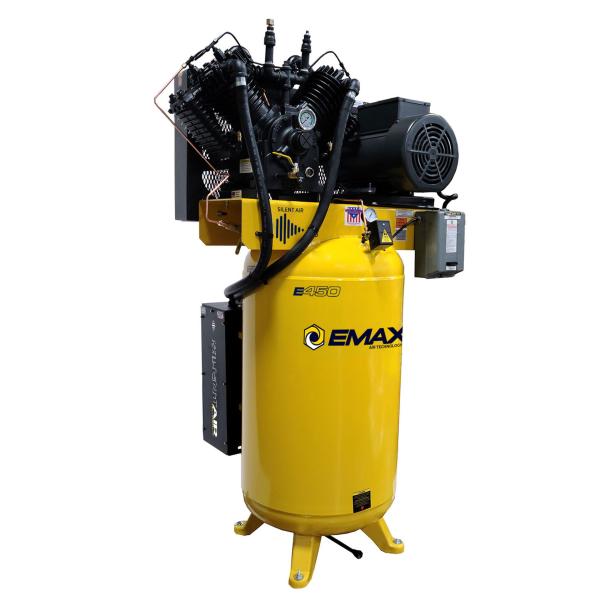

EMAX Silent Industrial Plus 10HP 80 Gallon Vertical Air Compressor

Model: ESP10V080V1

Please Choose:

Optional Accessories

A generic image
ESP10V080V1PK 58CFM Refrigerated Air Dryer
Brand

Shipping upgrades offered in cart page

$5,879.50

Description

This EMAX Industrial Plus 10HP 2 Stage V4 1Phase vertical 80gal. Piston Air Compressor is designed for up to 60,000 hours of commercial or industrial use with proper maintenance. This unit delivers 38CFM @ 100 PSI, top PSI of 175. Our unit features industrial electric motors, magnetic starters, automatic tank drain, powder coated ASME tank 200PSI rating, along with our continuous run functionality all paired with all cast iron 60,000 Hr. rated patented pressure lubricated reciprocating pump. This unit features our patented Patented Silent Air System silent air system already installed. The Patented Silent Air System dissipates compressor intake noise by channeling the intake air through a series of baffle plates. This low-profile system adds 4 levels of air filtration along with making the compressor quiet, lowering the decibels by more than 35%. All backed with enrollment into the best limited extended Lifetime Pump warranty plan in the business. Order yours today!

KEY BENEFITS
• Condor switch
• Spin-on oil filter
• Patented silent air system
• Built in inner-cooler and after cooler
• Solid cast iron crankcase with oil sight glass
• ASME certified air tank – approved for ALL 50 states
• Auto tank drain 110-volt dual timer controlled, eliminates daily maintenance
• Patented pressure lubricated 2-stage cast iron pump with dual control design
• Industrial-duty, 1750 RPM (not 3450 RPM) industrial grade name brand motor  - UL & CSA
• Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life
• Continuous mode functionality for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor





Show more

Specs

• HP: 10
• Phase: 1
• CFM: 38
• Tank Size: 80
• Radiator: N
• Silent Air: Y
• Smart Air: N
• Motor Type: ODP
• Duty Cycle: 0.6
• Outlet Size: 3/4"
• Belt Count: 2
• Pump Stage: 2
• Pump Riser: Y
• Belt Tensioner: Y
• Mag Starter: Y
• Pump RPM: 730
• Motor RPM: 1740
• Max PSI: 175
• Oil Capacity: 2
• Oil U/M: Quarts
• Start Type: FIXED
• Continuous Run: Y
• CFM At Max PSI: 34
• Drive Type: Electric
• Tank Drain: Automatic
• Pump Type: Pressure
• Voltage +/- 10%: 230
• Compressor Type: Piston
• Pump Model: APP4V1043TP
• Peak Starting Amps: 270
• Locked Rotor Amps: 270
• Recommended Breaker: 60
• Overall dims: 39" x 25" x 75"
• FLA + 1.15 Service Factor: 52.9
• Estimated Pump Life (Hours): 60000

Downloads

• View the EMAX warranty programs HERE

Shipping

• Ships 875 lbs. at 48" x 46" x 87"
• Residential deliveries cost extra
• Free shipping to a business with forklift on site
• Local dock pickup saves residential delivery fees
• Free shipping applies to $600 maximum.  If shipping exceeds this amount a surcharge may be needed
