Model: 9680177

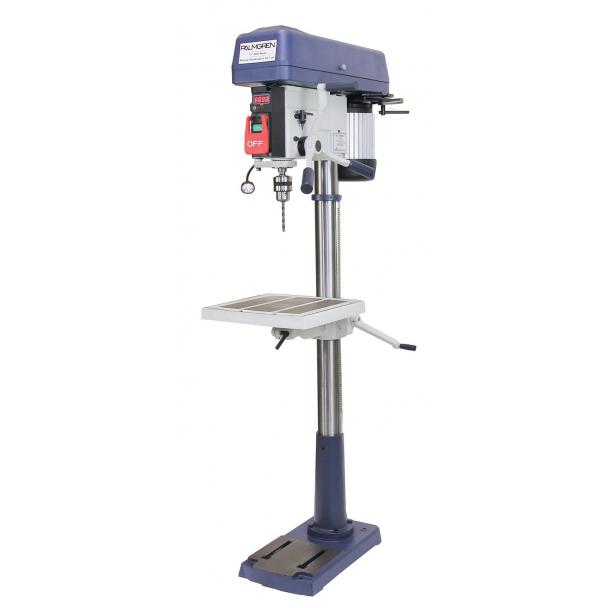

Easily drill through a wide variety of materials with the Palmgren 16" Heavy Duty 16 Speed Drill Press! This heavy rigid piece of machinery is capable of maintaining the built-in tight tolerances required for metalworking applications. It has a fully enclosed spindle for accurate drilling operations, LED readout of spindle speed and quill travel, as well as a quick change vertical depth stop for accurate repeatable feed length. It utilizes a tilting precision ground t-slotted work table with coolant trough and includes a chuck with key and arbor. Order yours today!
KEY BENEFITS • Rack and pinion table raiser • Includes chuck with key and arbor • Maximum spindle run out of 0.0005" • LED readout of spindle speed and quill travel • Front mounted industrial paddle type power switch • Fully enclosed spindle for accurate drilling operations • Precision ground t-slotted work table with coolant trough • Extended quill/spindle travel ideal for deep hole applications • Table tilts 45° right and left and rotates 360° around the column • Quick change vertical depth stop for accurate, repeatable feed length • Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle
Show more
• Swing: 17" • Amps: 10/5 A • Table slots: 5/8" • Voltage: 120/240 • Motor HP: 1.0 HP • Spindle travel: 5" • Spindle taper: MT2 • Spindle speeds: 16 • Capacity cast iron: 5/8" • Spindle to table: 16-1/2" • Table work surface: 14-3/8" x 14-3/8" • Overall dims: 15-1/2" W x 28" L x 68" H
• Residential deliveries cost extra • Ships to commercial location w/ forklift • Free shipping applies to $200 maximum. If shipping exceeds this amount a surcharge may be needed
