Longhorn "The Rotator" Ultra Heavy Duty Engine Stand

Model: 201093


Shipping upgrades offered in cart page

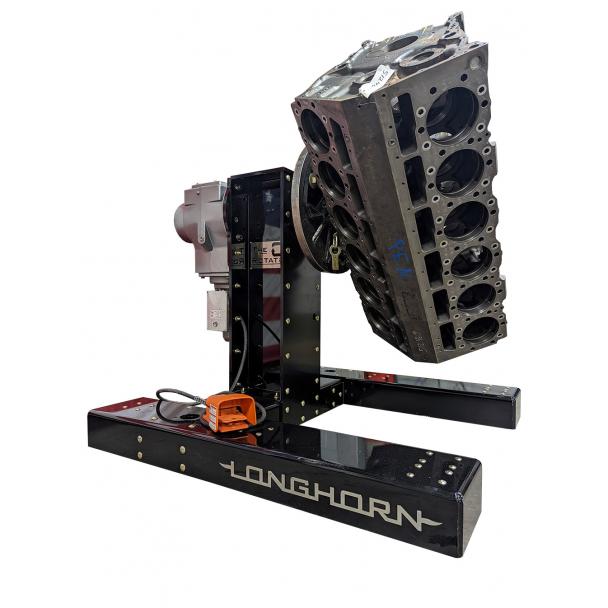

The Rotator is a Longhorn ultra heavy duty engine stand that boasts a whopping 3500 FT-LBS of torque! Supported by 12,000 lb. bearings, the 3 inch diameter shaft is attached to a gearbox with integrated DC injection and magnetic braking for complete control of large assemblies. It features 8 casters protected by the 3/8" thick steel legs, an adjustable speed, and reversible direction via foot pedal. Order yours today!

• Magnetic braking
• Adjustable speed & reversible direction
• Gear box has industrial gear reduction drive
• Adapter plate to fit specialty industrial and engine/transmission/axle mounting requirements

Show more


• Motor: 1HP
• RPM: 1-2 RPM
• Base: 3/8" steel
• Machine shaft: 3"
• Torque: 3500 ft-lbs
• Capacity: 6000 lbs.
• Front adapter plate: 1.5" thick
• Footprint: 55" H x 62" L x 58" W
• Main neck: 14"x 12" I-Beam type construction
• Casters: 8x 6" dia , 4 fixed, 4 swivel with locks
• Engine Swing Length: 80" Swing (Custom heights available for special applications)
• Controls: 110V 15A outlet, Variable speed, FWD/STOP/REV, Start/Stop, Foot Pedal On/Off


• Ships 1600 lbs. at 72" x 60" x 48"
• Ships to commercial location w/ forklift
• Free shipping applies to $600 maximum. If shipping exceeds this amount a surcharge may be needed
