Redline RE-ENGS Automotive Engine Build/Run/Test Stand

Model: RE-ENGS

(2 reviews)

Please Choose:

Optional Accessories

A generic image
Radiator

A generic image
Fuel Cell

A generic image
Gauges & Control Panel
Brand

Shipping upgrades offered in cart page

$799.50
box icon

In Stock in

Pensacola
delivery icon

Usually Ships Within

24-48 Hrs

Description

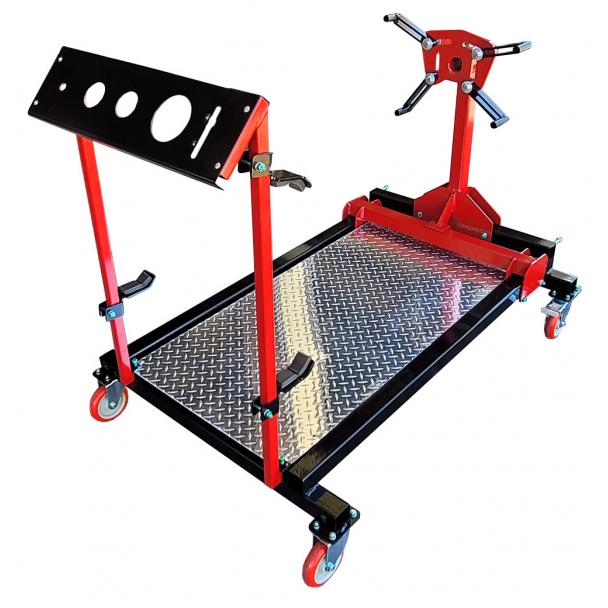

Introducing the New Redline RE-ENGS Automotive Engine Run & Test Stand! This handy mobile stand allows you to easily run your engine without having to install it into a vehicle. It includes 4 radiator mounts, a universal mount to bolt the bell-housing of nearly any engine to the stand, a rotating head attachment, and 2 mounting posts that will secure to the traditional motor mounts on the engine block. Several optional upgrades can further enhance the stand such as the aluminum fuel cell and full dash consisting of all vital gauges. Order yours today!


KEY BENEFITS

• Covered by Redline's 1-Year parts warranty
• Folds up for easy storage
• Optional fuel cell includes fuel sending unit, but no fuel pump
• Default mounting head offers 11 height locations with a range of 10"
• Base stand includes 4 radiator mounts, bell-housing attachment, aluminum dash, and 2 engine mount posts
• Optional full dash includes an accelerator cable as well as gauges for oil pressure, water temperature & RPM (components may differ slightly from picture)

Show more

Specs

BASE ENGINE STAND
• 1200 lb. capacity
• Metal thickness: 0.147"
• Floor clearance: 8-1/2"
• Overall dims: 54" L x 35" W x 43" H
• Caster diameter: 4-1/2" (2x braking)

MOUNTING POSTS/STAND
• Adjustable range: 10"
• Overall dims (Posts): 28" x 6" x 18-3/4"
• Overall dims (Stand): 15-3/4" x 2-1/4" x 29-5/8"

ENGINE BUILD ROTATING HEAD
• 4x arm dims: 6-1/2" x 2-1/2"
• Overall dims: 18-3/4" x 8-1/2" x 27-3/8"

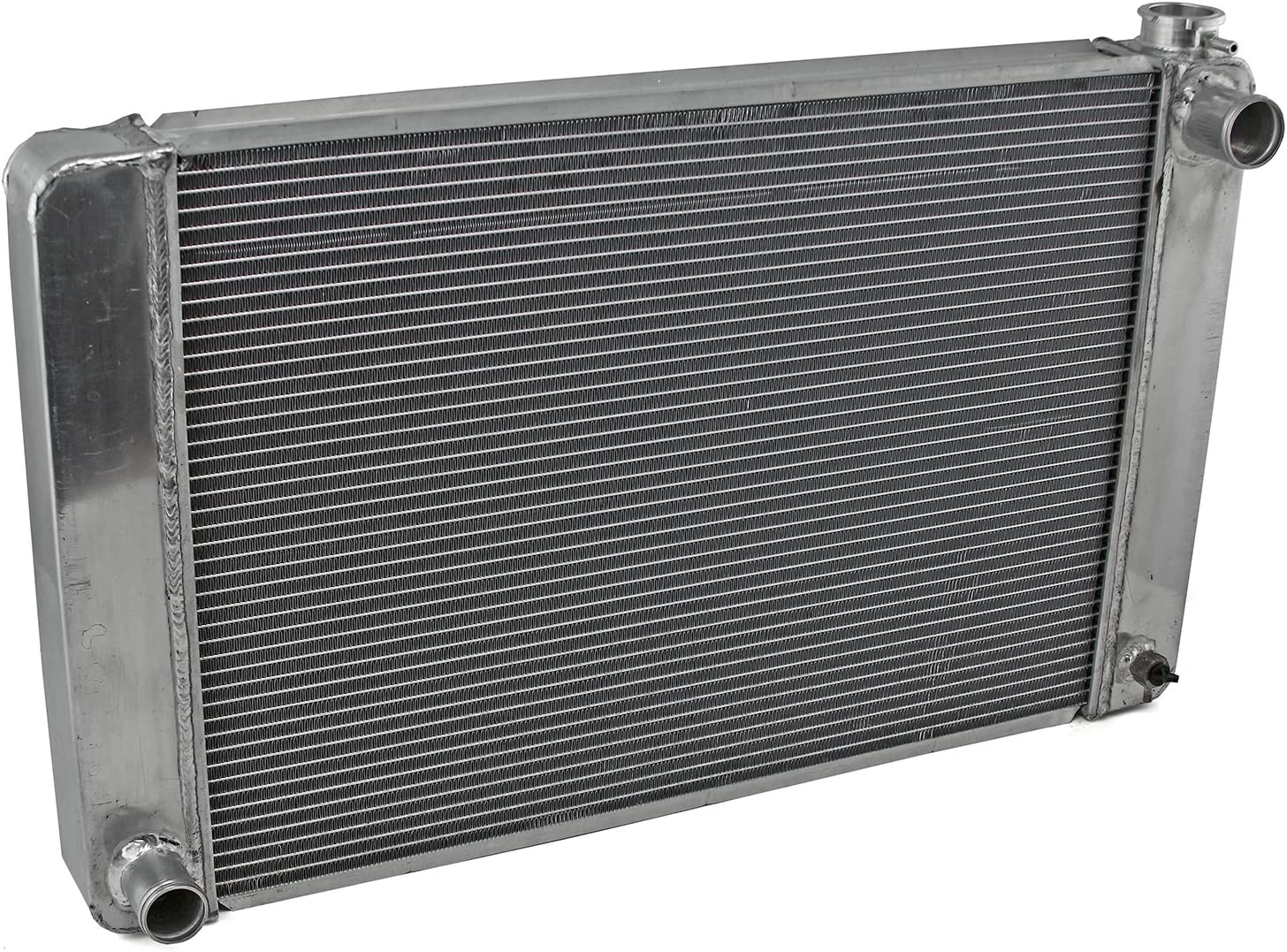

OPTIONAL RADIATOR
• Aluminum construction
• Customer supplied electric fan required
• Overall dims vary based on supplier availability
• Inlet/outlet hose mount location varies based on supplier availability

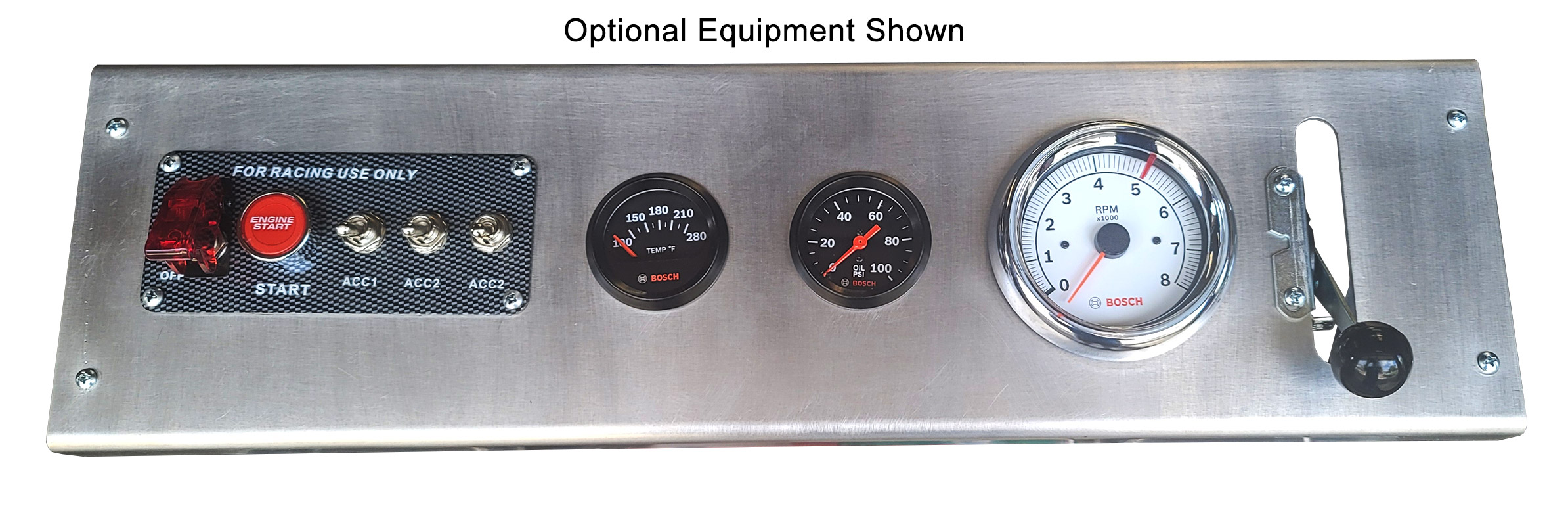

OPTIONAL FULL DASH
• Overall dims: 22-1/2" x 1" x 6-1/4"

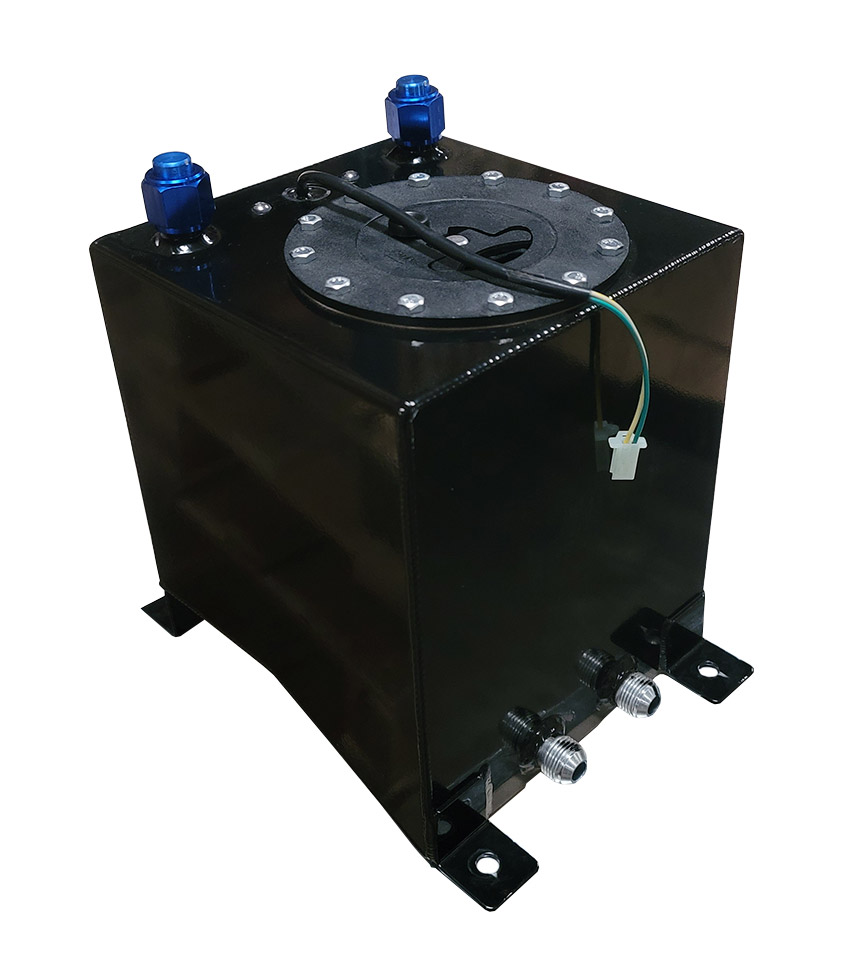

OPTIONAL FUEL CELL
• Integrated sump
• Dual 10AN outlets
• Dual 10AN vent outlets
• 0-90 Ohm fuel sender
• Aluminum construction
• Quick release fuel cap
• Overall dims: 8-1/2" x 8-1/4" x 10"
• Cannot store methanol or ethanol
• Tank measures 8" (L) x 8.25" (W) x 10" (H)
• Mounting tabs measure 6-1/2" (L) x 9-3/4" (W) center to center

Downloads

• Download the manual pdf HERE

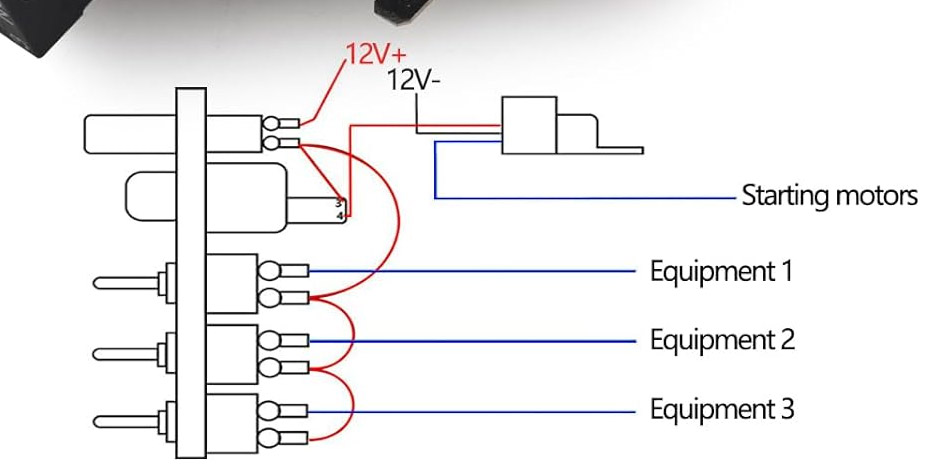

• Download the wiring diagram HERE

Shipping

• Residential deliveries cost extra
• Local dock pickup saves residential fees
• Ships 200 lbs. at 56" x 36" x 16" class 85
• FREE shipping to commercial location w/ forklift
• Free shipping applies to $250 maximum. If shipping exceeds this amount a surcharge may be needed

Videos

Reviews

5.0 / 5 (2 reviews)
Based on 2 Reviews Write review
  • Stephen Glover Nov 12, 2024

    Great for LS engine

    Nov 12, 2024
    Very well made sturdy stand. Placed our LS on the stand and found it to be very conducive for adding battery stand, fuel cell etc. Highly recommended.
  • Stephen Glover Jun 3, 2024

    Very expandable

    Jun 3, 2024
    Received everything in a timely manner. Easy to add anything you need to adapt to the engine you need SBC, LS, ETC.

Ask & Answer

  • Jcw Nov 16, 2024
    Q. Will a straight 6 “Nissan” 280z engine mount t this?
    A. We believe it will, but cannot promise this as we have no direct experience with that particular motor. Thanks for shopping with us!
  • PETE Nov 08, 2024
    Q. Is there anything specific needed for an LS application other than LS engine mounts? Thank you,
    A. Not that we are aware sir. As long as you have engine mounts and bellhousing bolts, you should be good to go. Thanks for shopping with us!
  • Greg Apr 03, 2024
    Q. Is there a way to hook up a sprint car engine the pumps mount to the back of the cam so a normal fly wheel won't work
    A. I'm sorry Greg but we have no experience mounting sprint car engines to this stand sir.
  • L Dec 24, 2023
    Q. Is there a manual on how you put it together and/or FOLD it up ? There are no pictures of it in the folded position. Thank you.
    A. All you have to do to break it down for storage is remove the tower for the gauges and remove the bell housing tower that mounts to the back of the engine. In the additional photos, pictures #14 thru #16 show the stand in it's folded state. Thanks for your question.
  • Sam Jan 17, 2023
    Q. Will Flathead V-8's fit?
    A. Yes sir, but some modifications will be needed for the engine mounts. Thanks for shopping withg us Sam!
