[DISCONTINUED] SHOP FOX 6" x 21" Deluxe Variable Speed Mill

Model: M1111


Shipping upgrades offered in cart page

Description

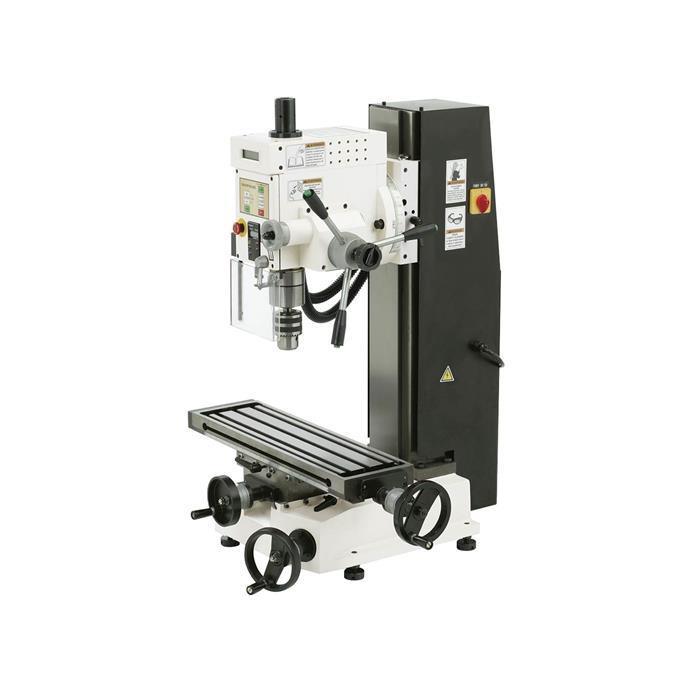

This M1111 Milling Machine has all of the important features of the M1110, but with a few extra time-saving luxuries. However, this mill is further fortified with a quick-tilt headstock for horizontal milling, 1 HP brushless motor, a multi-function digital depth scale on the quill, push-button speed control and digital spindle tachometer. The quick reversing tapping feature also makes hole threading simple. Just put the machine in "tapping mode", start the tap, and when the thread is completed, push the button at the end of the rack levers and the spindle reverses, immediately withdrawing the tap from the hole. The back-lit digital tachometer tells you the precise spindle speed for matching tooling and material. All of these extra features make the M1111 Milling Machine one of the most sought after machines available! Made in an ISO 9001 factory. Order yours today!

KEY BENEFITS
• Coolant trough
• Dovetail column
• Back lit digital speed display
• Front mounted fine feed knob
• See through chip guard w/ safety switch
• Reversing buttons on rack handles for tapping

Show more

Specs

• 18" Swing
• Spindle taper R-8
• Drilling capacity 1"
• Speeds: 100-1750
• 2-7/8" Spindle travel
• Head tilts 90 degrees
• Headstock travel: 14+"
• 5/8" drill chuck and arbor
• 2" diameter maximum face cutter capacity
• 1HP, 220v, Brushless DC Motor w/ Step-Up Transformer, 110V Operation

Downloads

• Download the spec sheet HERE
• Download the manual sheet HERE
• Download the parts list sheet HERE

Shipping

• Approx. shipping weight: 416 lbs
• CA, CT, LA, MD, MA, RI, TN
• Additional shipping fees apply when sent to above states
• Shop Fox prohibits drop shipping to these states.  Orders to these states will be shipped to Redline and then to you
• Shipments to all other 41 continental states will incur no extra fee
• Free shipping is to a commercially zoned business with a forklift or to nearest LTL truck terminal for local pick up
