SWAG XT-200 Tilting Welding Rotary Positioner

Model: XT-200

Please Choose:

Optional Accessories

A generic image

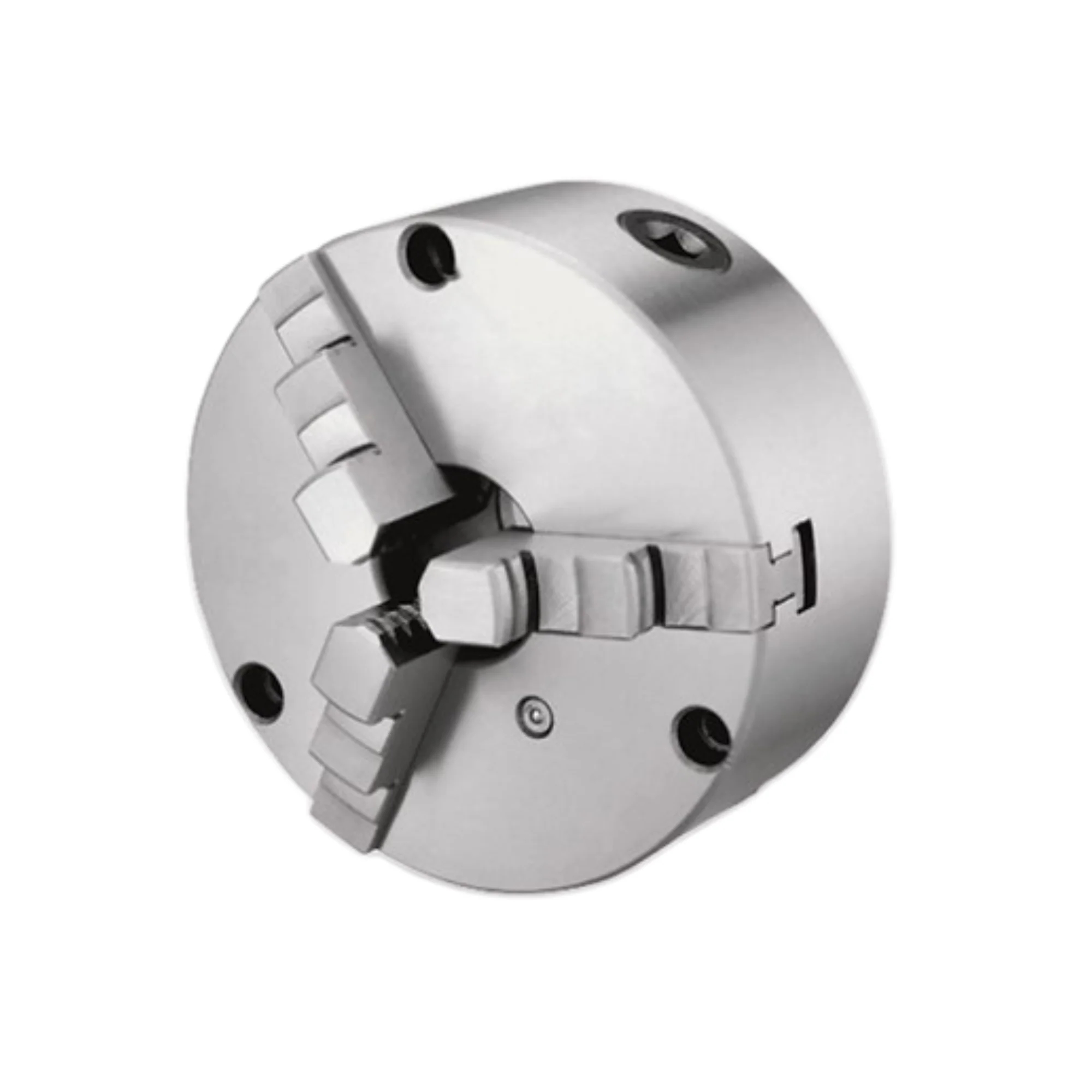

5" Three Jaw Chuck

A generic image

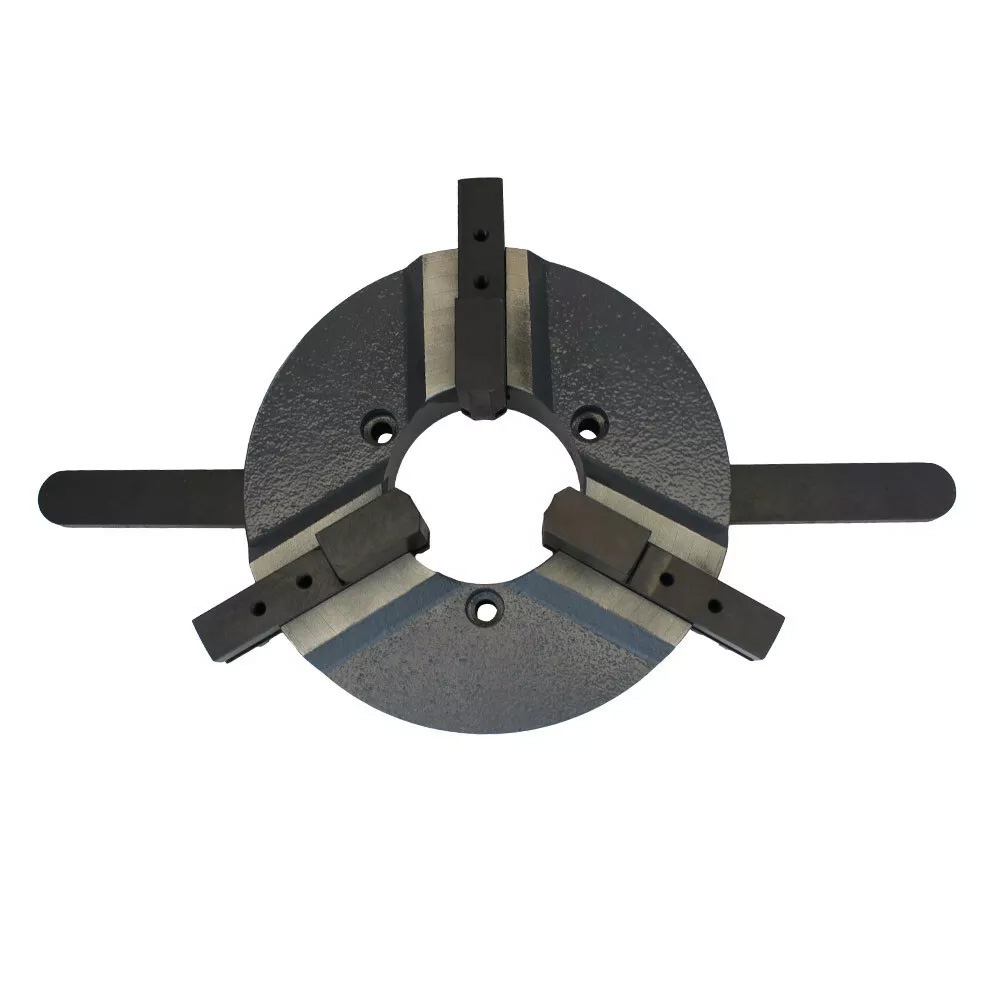

8" Three Jaw Speed Chuck
Brand

$1,949.50
delivery icon

Usually Ships Within

24-48 Hrs

Description

The Lima model XT-200 is a tilting welding turntable, capable of handling loads up to 200 pounds in the horizontal position. A worm gear with swivel handle and locking plate is responsible for tilting and securing the table from -15° to 130°. The table is driven by a DC Permanent Magnet gear motor driving Cast Iron secondary gears. Built in high frequency protection makes the Lima XT-200 well suited for MIG, TIG, or stick welding, as well as other processes such as painting, assembly, positioning,  or plasma cutting. Up to 200A welding current is handled by way of built in solid brass grounding, including a threaded output stud for attaching a ground clamp or cable. Operating the XT-200 is simple and straightforward.  The machine comes standard with an on/off toggle switch and speed control on the panel.  A 5' power cable with plug, and a foot on/off switch are also included. The TIG model includes the entire gas purge assembly. Order yours today!

KEY BENEFITS
• Built in high frequency protection
• TIG model includes gas purge assembly
• Driven by a DC permanent magnet gear motor
• Comes standard with an on/off toggle switch and speed control

Show more

Specs

• TIG: 0.4 - 2.3 RPM
• MIG: 2.4 - 9.5 RPM
• 115VAC 60Hz. @ 1.3A
• 10" steel slotted table
• TIG gas purge shaft output: 1/8 NPT
• TIG gas purge input fitting: 1/4 NPT
• Tilting capacity from -15 to 130 degrees
• 200 lb. capacity in the horizontal position
