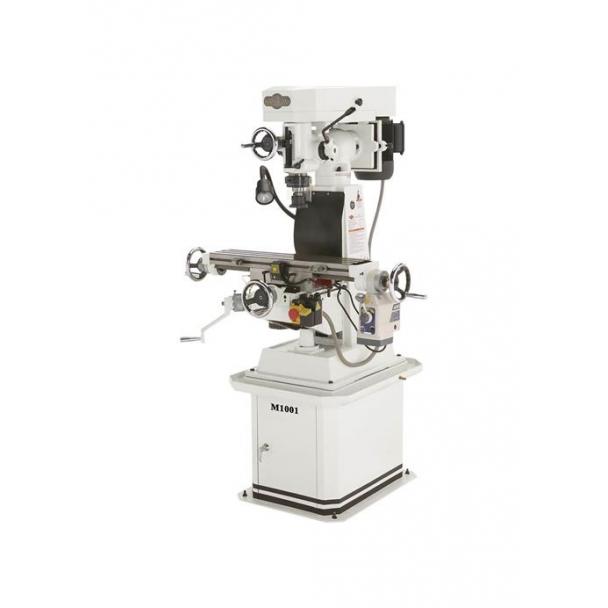

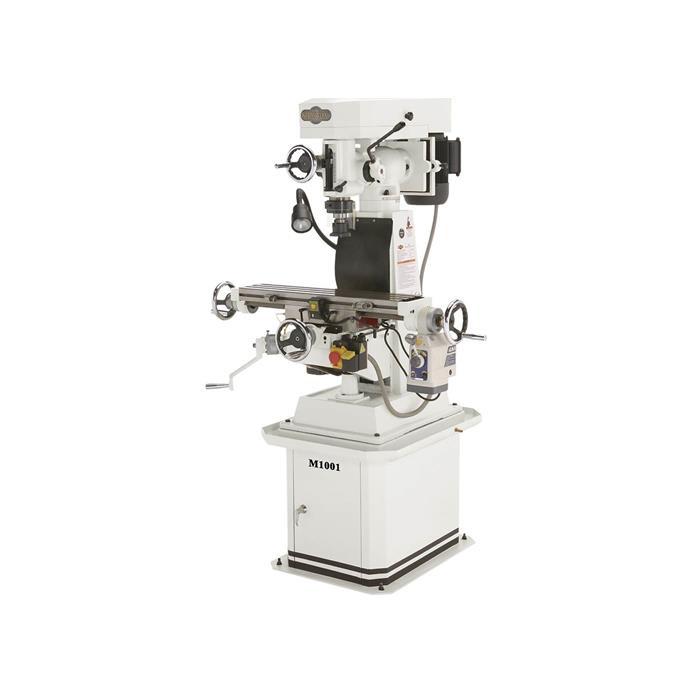

[DISCONTINUED] SHOP FOX 6" x 26" Vertical Mill

Model: M1001


Shipping upgrades offered in cart page

Description

This M1001 knee mill is great for the small shop that wants a compact unit! It features a 1-1/2 HP motor with 9 speeds ranging from 240 to 2760 RPM. A variable speed power feed with rapid override efficiently moves the 6-1/8" x 26" table back and forth along its 15-7/8" travel. Both the head and column rotate 45° in both directions. A single shot lubrication system makes maintenance quick and easy! Order yours today!

KEY BENEFITS
• Built in work light
• Spindle taper R-8
• Built in cooling pump
• Milling head micro feed
• Class 7 spindle bearings
• High precision ground vertical and cross ways

Show more

Specs

• 18" Swing
• 9 speeds: 240-2760
• Table travel (cross): 6"
• Table size 6 1/8" x 26"
• Head tilts 45° right and left
• 1.5 HP, 110v Single Phase TEFC
• Max drilling capacity for steel 3/4"
• Max drilling capacity for cast iron 1"
• Table travel (Longitudinal): 15 5/8"
• Max distance spindle to table 12 1/2"
• Ram swiveling angle 45° right and left
• T Slots: 3 on 1 9/16" centers, 3/8" studs
• Overall dimensions H 66 5/8" x D 41" x W 45 1/2"
• Head tilts 45° both ways and 90° rotation on horizontal surface

Downloads

• Download the spec sheet HERE
• Download the manual sheet HERE
• Download the parts list sheet HERE

Shipping

• Approx. shipping weight: 936 lbs
• CA, CT, LA, MD, MA, RI, TN
• Additional shipping fees apply when sent to above states
• Shop Fox prohibits drop shipping to these states.  Orders to these states will be shipped to Redline and then to you
• Shipments to all other 41 continental states will incur no extra fee
• Free shipping is to a commercially zoned business with a forklift or to nearest LTL truck terminal for local pick up
